Rear disc brake caliper & dust cover for Dyna / Toyoace XZU650

Click on the part subgroup below to get genuine part numbers.

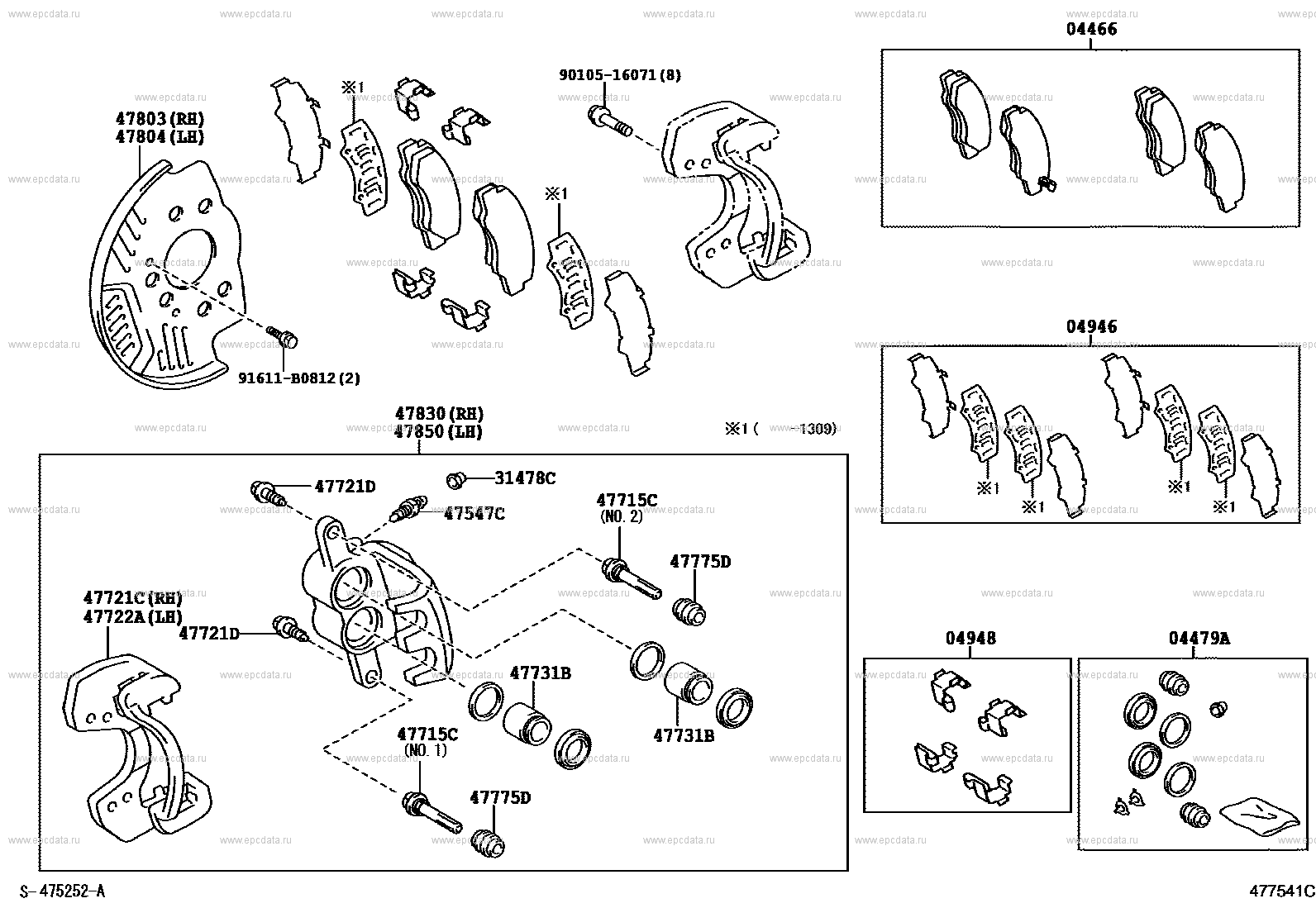

(1107- )35T,40T Open full size scheme

Click part number in the scheme or in the list: 47803 COVER SUB-ASSY, DISC BRAKE DUST, REAR RH 47804 COVER SUB-ASSY, DISC BRAKE DUST, REAR LH 47721D BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) 47547C PLUG, BLEEDER(FOR REAR DISC BRAKE) 31478C CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) 47715C PIN, CYLINDER SLIDE(FOR REAR DISC BRAKE) 47775D BOOT, BUSH DUST(FOR REAR DISC BRAKE) 47830 CYLINDER ASSY, DISC BRAKE, REAR RH 47850 CYLINDER ASSY, DISC BRAKE, REAR LH 47722A MOUNTING, REAR DISC BRAKE CYLINDER, LH 47721C MOUNTING, REAR DISC BRAKE CYLINDER, RH 47731B PISTON, REAR DISC BRAKE 04946 SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) 04948 FITTING KIT, DISC BRAKE, REAR 04479A CYLINDER KIT, DISC BRAKE, REAR 04466 PAD KIT, DISC BRAKE, REAR 9010516071 ** Std Part 91611B0812 ** Std Part

Dyna / Toyoace XZU650
