Brake booster & vacuum tube for Dyna / Toyoace XZU600
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(1107- )MTM ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 44610 BOOSTER ASSY, BRAKE47262A NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK 47264D CLEVIS, BRAKE MASTER CYLINDER PUSH ROD 44775E HOSE, WAY TO CONNECTOR 44776 HOSE, BRAKE BOOSTER 44764A HOSE, BOOSTER VACUUM 9017908038 ** Std Part 9613240700 ** Std Part 9046615003 ** Std Part 9155180814 ** Std Part 44734B BRACKET, BOOSTER SUPPORT 44730J WAY(FOR BOOSTER VACUUM) 4737137040 ** Std Part 9155180825 ** Std Part 9048022022 ** Std Part 44730B CLAMP, VACUUM HOSE 44775C HOSE, CONNECTOR TO WAY 44778D HOSE, VACUUM TUBE TO CONNECTOR TUBE 44799 WAY, BRAKE VACUUM HOSE 91611B0816 ** Std Part 44768 TUBE, BOOSTER VACUUM 44776A HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER 9613341500 ** Std Part 44781 BRACKET, HOSE 44763B TUBE, TUBE CONNECTOR TO TUBE CONNECTOR 9415180800 ** Std Part ** 84-14 ** 47-02 44781C BRACKET, HOSE CLAMP, NO.2 |

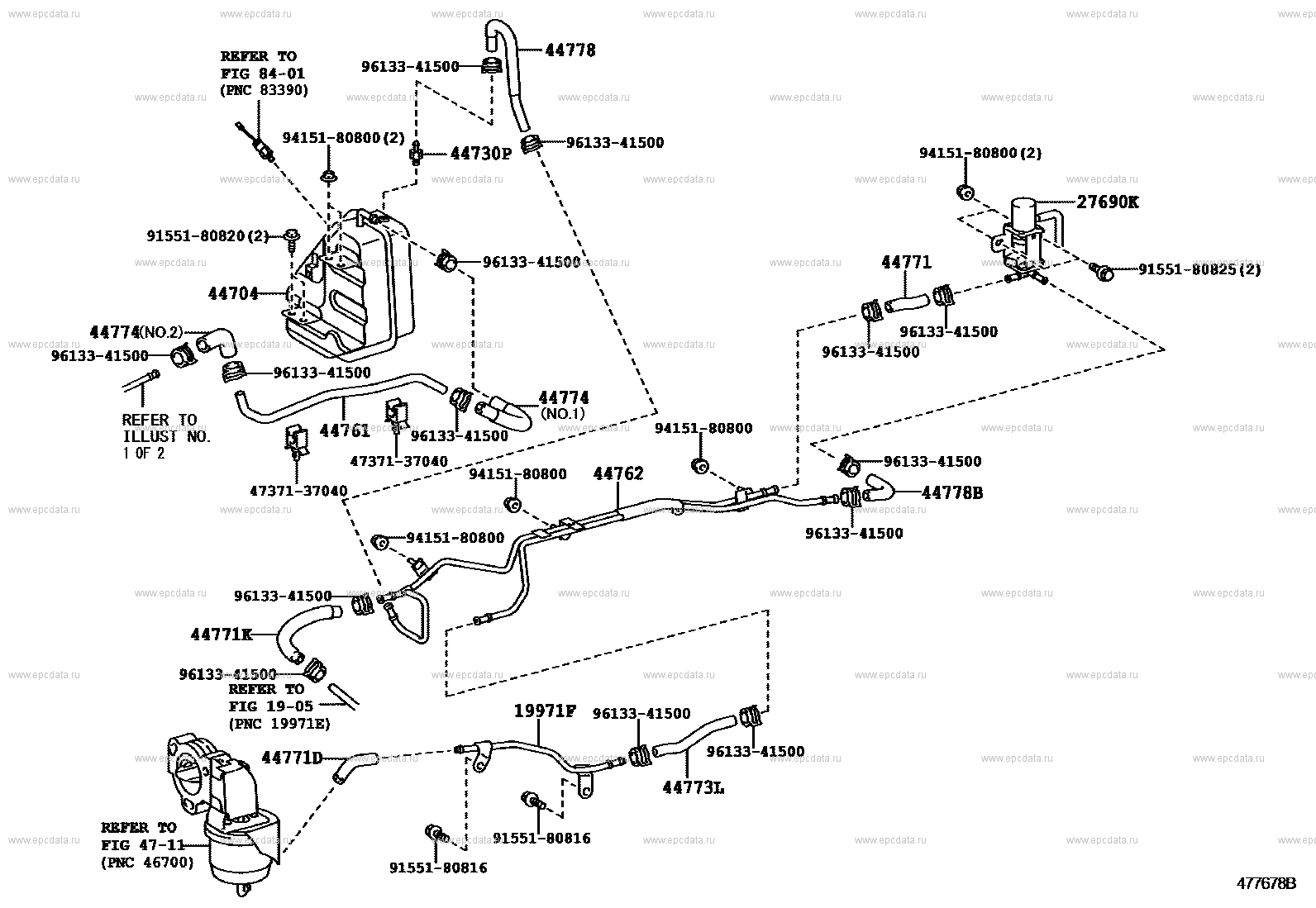

Scheme 2
|
(1107- )XZU600,640..IV4 ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 9155180820 ** Std Part9415180800 ** Std Part 44704 RESERVOIR SUB-ASSY, VACUUM 44778B HOSE, WAY TO CHECK VALVE 44730P VALVE ASSY, VACUUM CHECK, NO.1 44778 HOSE, CONNECTOR TO CHECK VALVE 44762 TUBE, BOOSTER VACUUM 27690K SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) 44771 HOSE, VACUUM TUBE CONNECTOR 9155180825 ** Std Part 44771K HOSE, VACUUM TUBE TO VACUUM PUMP 19971F PIPE, VACUUM 9613341500 ** Std Part 9155180816 ** Std Part ** 84-01 4737137040 ** Std Part 44774 HOSE, UNION TO CONNECTOR TUBE 44761 TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR 44771D HOSE, VACUUM TUBE CONNECTOR 44773L HOSE, SOLENOID TO EXHAUST RETARDER ** 47-11 ** 19-05 |
