ToyotaDyna / ToyoaceXZU411XZU411-TGTMSEngine, fuel system and toolsCrankshaft & piston

Crankshaft & piston for Dyna / Toyoace XZU411




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 11702 11701-89104 01 06.2004 - 10.2006 BEARING SET, CRANKSHAFT J05D,S05D..XZU401,411,413,421,423,433
ＳＴＤ		  4.92
to 371.32 USD
  (SUBS) S1170-12160 01    4.92
to 516.71 USD
          ** Rev.Ref.No ** ( From-0019 , To-0022 )
        From XZU411 -0010986
02 11702 11704-89104 01 06.2004 - 10.2006 BEARING SET, CRANKSHAFT J05D,S05D..XZU401,411,413,421,423,433
Ｕ／Ｓ　０．２５		  271.39
to 273.22 USD
  (SUBS) S1170-31840 01    4.92
to 362.16 USD
          ** Rev.Ref.No ** ( From-0019 , To-0022 )
        From XZU411 -0010986
03 11702 11705-89104 01 06.2004 - 10.2006 BEARING SET, CRANKSHAFT J05D,S05D..XZU401,411,413,421,423,433
Ｕ／Ｓ　０．５０		  158.81
to 273.22 USD
  (SUBS) S1170-41870 01    4.92
to 362.16 USD
          ** Rev.Ref.No ** ( From-0019 , To-0022 )
        From XZU411 -0010986
04 11702 11706-89103 01 06.2004 - 10.2006 BEARING SET, CRANKSHAFT S05D..XZU401,411,421
Ｕ／Ｓ　０．７５		 247.55 USD
  (SUBS) S1170-51850 01    362.16
to 507.31 USD
          ** Rev.Ref.No ** ( From-0019 , To-0022 )
        From XZU411 -0010986
05 11702 11707-89103 01 06.2004 - 10.2006 BEARING SET, CRANKSHAFT S05D..XZU401,411,421
Ｕ／Ｓ　１．００		 247.55 USD
  (SUBS) S1170-61870 01    247.55
to 507.31 USD
          ** Rev.Ref.No ** ( From-0019 , To-0022 )
        From XZU411 -0010986

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3

Click on the part subgroup below to get genuine part numbers.

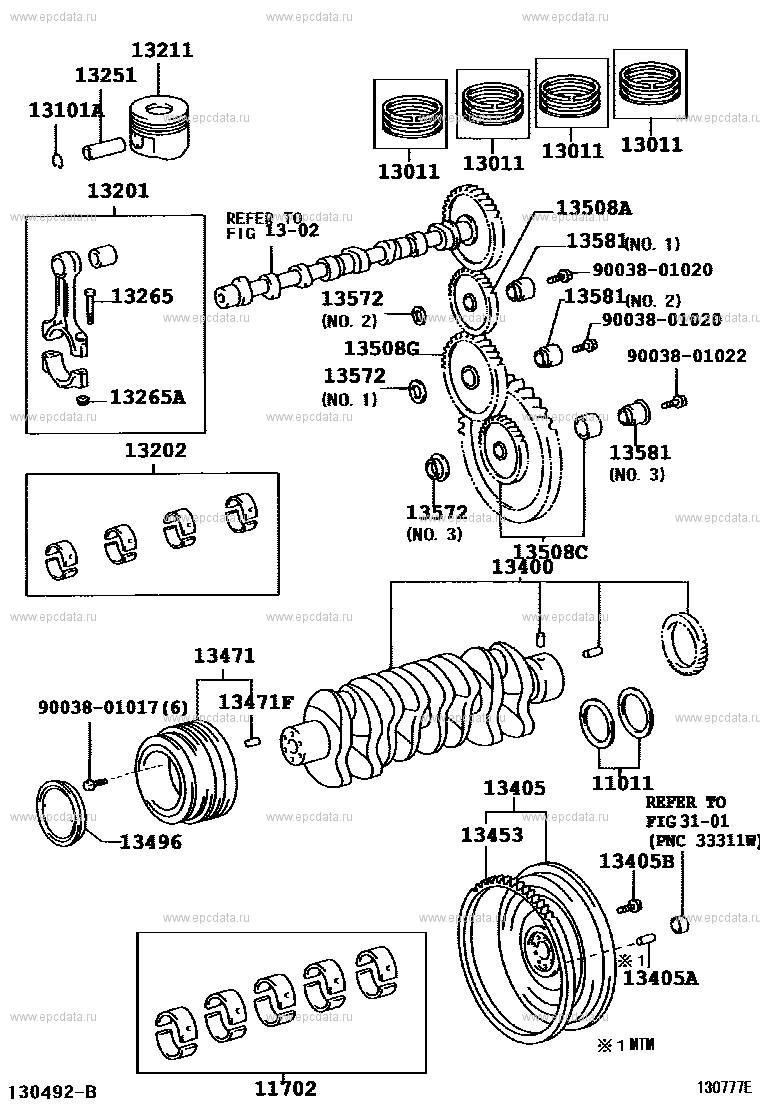

Scheme 1

(0406-0407)J05D,S05D ; (0407-0505)S05D

Click part number in the scheme or in the list:

13201 ROD SUB-ASSY, CONNECTING
13211 PISTON
13251 PIN, PISTON
13265 BOLT, CONNECTING ROD
13265A NUT, HEXAGON(FOR CONNECTING ROD BOLT)
13202 BEARING SET, CONNECTING ROD
13101A RING, HOLE SNAP(FOR PISTON PIN)
13011 RING SET, PISTON
11011 WASHER SET, CRANKSHAFT THRUST
13405 FLYWHEEL SUB-ASSY
13405B BOLT, FLYWHEEL SET
13405A PIN, STRAIGHT(FOR FLYWHEEL)
11702 BEARING SET, CRANKSHAFT
13471 PULLEY, CRANKSHAFT
13471F PIN, STRAIGHT(FOR CRANKSHAFT PULLEY)
13508C GEAR SUB-ASSY, IDLE, NO.2
13572 PLATE, IDLE GEAR THRUST
13581 SHAFT, IDLE GEAR, NO.1
13508A GEAR SUB-ASSY, IDLE
13508G GEAR SUB-ASSY, IDLE, NO.3
** 13-02
9003801020 ** Std Part
9003801022 ** Std Part
9003801017 ** Std Part
13496 COVER, CRANKSHAFT PULLY
13400 CRANKSHAFT ASSY
13453 GEAR, FLYWHEEL RING
** 31-01

Scheme 2

(0406-0407)J05D,S05D ; (0407-0505)S05D

Click part number in the scheme or in the list:

13201 ROD SUB-ASSY, CONNECTING
13211 PISTON
13251 PIN, PISTON
13265 BOLT, CONNECTING ROD
13265A NUT, HEXAGON(FOR CONNECTING ROD BOLT)
13202 BEARING SET, CONNECTING ROD
13101A RING, HOLE SNAP(FOR PISTON PIN)
13011 RING SET, PISTON
11011 WASHER SET, CRANKSHAFT THRUST
13405 FLYWHEEL SUB-ASSY
13405B BOLT, FLYWHEEL SET
13405A PIN, STRAIGHT(FOR FLYWHEEL)
11702 BEARING SET, CRANKSHAFT
13471 PULLEY, CRANKSHAFT
13471F PIN, STRAIGHT(FOR CRANKSHAFT PULLEY)
13508C GEAR SUB-ASSY, IDLE, NO.2
13572 PLATE, IDLE GEAR THRUST
13581 SHAFT, IDLE GEAR, NO.1
13508A GEAR SUB-ASSY, IDLE
13508G GEAR SUB-ASSY, IDLE, NO.3
** 13-02
9003801020 ** Std Part
9003801022 ** Std Part
9003801017 ** Std Part
13496 COVER, CRANKSHAFT PULLY
13400 CRANKSHAFT ASSY
13453 GEAR, FLYWHEEL RING
** 31-01

Scheme 3

(0407- )J05D ; (0505- )S05D

Click part number in the scheme or in the list:

13201 ROD SUB-ASSY, CONNECTING
13211 PISTON
13251 PIN, PISTON
13202 BEARING SET, CONNECTING ROD
13101A RING, HOLE SNAP(FOR PISTON PIN)
11011 WASHER SET, CRANKSHAFT THRUST
13405 FLYWHEEL SUB-ASSY
13405B BOLT, FLYWHEEL SET
13405A PIN, STRAIGHT(FOR FLYWHEEL)
11702 BEARING SET, CRANKSHAFT
13471 PULLEY, CRANKSHAFT
13471F PIN, STRAIGHT(FOR CRANKSHAFT PULLEY)
13508C GEAR SUB-ASSY, IDLE, NO.2
13572 PLATE, IDLE GEAR THRUST
13581 SHAFT, IDLE GEAR, NO.1
13508A GEAR SUB-ASSY, IDLE
13508G GEAR SUB-ASSY, IDLE, NO.3
** 13-02
9003801020 ** Std Part
9003801022 ** Std Part
9003801017 ** Std Part
13496 COVER, CRANKSHAFT PULLY
13400 CRANKSHAFT ASSY
13453 GEAR, FLYWHEEL RING
13265 BOLT, CONNECTING ROD
** 31-01
13011 RING SET, PISTON
