Engine oil pump for Dyna / Toyoace XZU331

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 15012 15012-89103 01 05.1999 - 10.2001 COVER SUB-ASSY, OIL PUMP J05C,S05#..XZU30#,31#,32#,33#,34#,35#,362,37#,382  282.61 to 283.53 USD   (SUBS) S1501-21410 01    238.98 to 557.91 USD 02 15012 15012-89104 01 10.2001 - 06.2004 COVER SUB-ASSY, OIL PUMP J05C,S05#..XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 289.93 USD   (SUBS) S1501-21460 01   220.23 USD           ** Rev.Ref.No ** ( From- , To-0038 )         To XZU331 -0002487   03 15012 15012-89104 01 06.2004 - 10.2006 COVER SUB-ASSY, OIL PUMP S05D..XZU301,306,311,321,331,336,341,346,351 289.93 USD   (SUBS) S1501-21460 01   220.23 USD           ** Rev.Ref.No ** ( From-0039 , To- )         From XZU331 -0002488   More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

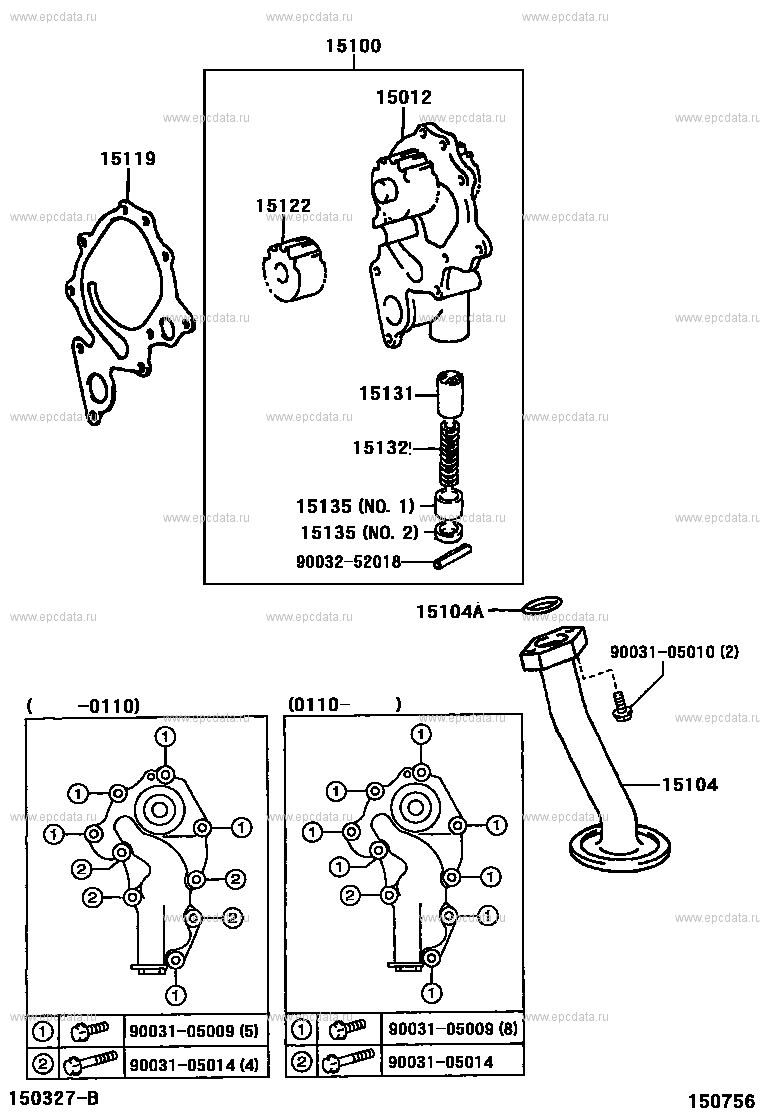

Scheme 1

(9905-0406)J05C,S05# Open full size scheme Go to top

Click part number in the scheme or in the list: 15100 PUMP ASSY, OIL 15012 COVER SUB-ASSY, OIL PUMP 15119 GASKET, OIL PUMP COVER 15122 GEAR, OIL PUMP DRIVEN 15131 VALVE, OIL PUMP RELIEF 15132 SPRING, OIL PUMP RELIEF VALVE 15135 RETAINER, OIL PUMP RELIEF VALVE 9003252018 ** Std Part 15104A RING, O(FOR OIL STRAINER) 9003105010 ** Std Part 15104 STRAINER SUB-ASSY, OIL 9003105009 ** Std Part 9003105014 ** Std Part

Scheme 2

(0406-0610)S05D Open full size scheme Go to top

Click part number in the scheme or in the list: 15100 PUMP ASSY, OIL 15119 GASKET, OIL PUMP COVER 9003105124 ** Std Part 15104 STRAINER SUB-ASSY, OIL 15104A RING, O(FOR OIL STRAINER) 9003105123 ** Std Part 9003105131 ** Std Part 15122 GEAR, OIL PUMP DRIVEN 15012 COVER SUB-ASSY, OIL PUMP 15131 VALVE, OIL PUMP RELIEF 15132 SPRING, OIL PUMP RELIEF VALVE 15135 RETAINER, OIL PUMP RELIEF VALVE 9003252018 ** Std Part

Dyna / Toyoace XZU331
