Fuel tank & tube for Dyna / Toyoace XKU710
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(1107- ) ﾌｭｰｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 9415181000 ** Std Part77601A BAND SUB-ASSY, FUEL TANK, NO.1 77616C SEAT, FUEL TANK BAND 77633 STAY, FUEL TANK 9413000802 ** Std Part 9167281035 ** Std Part 77611A PIN (FOR FUEL TANK BAND) 77017B TUBE SUB-ASSY, FUEL TANK VENT 77100U TANK SUB-ASSY, FUEL 77100A PLUG(FOR FUEL TANK) 93319A4010 ** Std Part 77154 PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT 77244D TUBE, FUEL EVAPORATION BREATHER, NO.1 77249 HOSE, FUEL EMISSION 77701U HOSE, FUEL (FOR CHECK VALVE) 77380 VALVE ASSY, FUEL CUT OFF 9613251100 ** Std Part 77169A GASKET, FUEL SUCTION TUBE SET ** 84-01 77100B GASKET(FOR FUEL TANK) 77026B TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77178 GASKET, FUEL TANK FILLER PIPE, LOWER 77023 FILTER SUB-ASSY, FUEL SUCTION TUBE |
Scheme 2
|

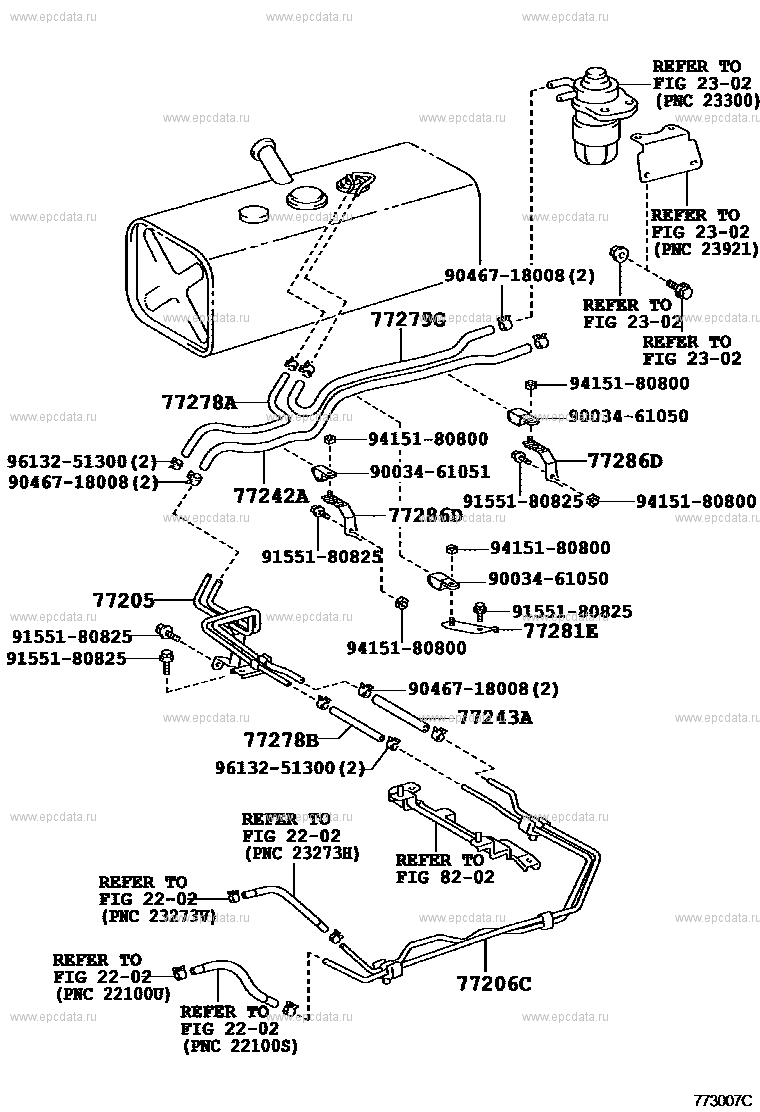

(1107- )XKU710,720 ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: ** 23-02** 22-02 ** 82-02 77205 TUBE SUB-ASSY, FUEL MAIN 77279G HOSE, FUEL, NO.2 77242A HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77243A HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) 77278B HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77286D CLAMP, FUEL TUBE, NO.2 77281E BRACKET, FUEL MAIN TUBE, NO.1 9046718008 ** Std Part 9155180825 ** Std Part 9415180800 ** Std Part 9003461051 ** Std Part 9003461050 ** Std Part 77206C TUBE SUB-ASSY, FUEL MAIN, NO.2 9613251300 ** Std Part 77278A HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) |
