Parking brake & cable for Dyna / Toyoace XKU710
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(1107- ) ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 46453A BRACKET, CABLE SUPPORT, NO.333826T BRACKET, TRANSMISSION CONTROL CABLE, NO.2 33826U BRACKET, TRANSMISSION CONTROL CABLE, NO.3 33829H CLAMP, TRANSMISSION CONTROL CABLE 46420 CABLE ASSY, PARKING BRAKE, NO.2 46430 CABLE ASSY, PARKING BRAKE, NO.3 46420F SEAL, DUST(FOR PARKING BRAKE CABLE) 46420Q RING, E(FOR PARKING BRAKE CABLE) 46420G SPRING(FOR PARKING CABLE INNER WIRE SET) 46420P SPACER, PARKING BRAKE 46210 LEVER ASSY, PARKING BRAKE 9415180800 ** Std Part 9010508372 ** Std Part 9020110042 ** Std Part 9155380814 ** Std Part 9046108225 ** Std Part 9165140814 ** Std Part 9155180818 ** Std Part 91551A0818 ** Std Part 9011906315 ** Std Part 33827C BRACKET, TRANSMISSION CONTROL CABLE, NO.3 ** 84-01 |

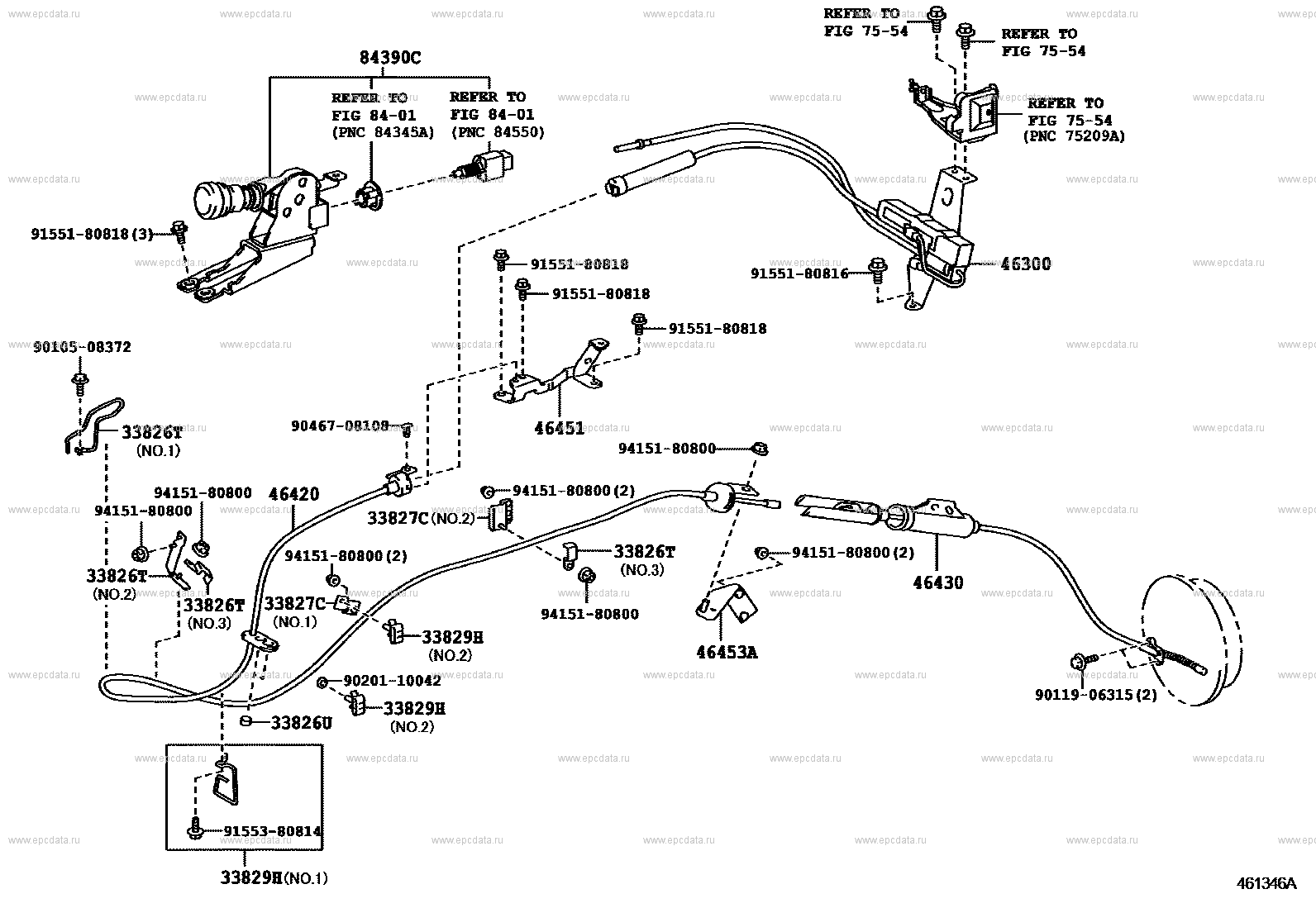

Scheme 2
|
(1305- ) ｱﾘ(ﾃﾞﾝﾄﾞｳ ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ) ILLUST NO. 1 OF 2 |
Click part number in the scheme or in the list: 46300 ACTUATOR ASSY, PARKING BRAKE W/BRACKET46451 BRACKET, CABLE SUPPORT 9155180818 ** Std Part 9046708108 ** Std Part 84390C SWITCH ASSY, ELECTRIC PARKING BRAKE ** 84-01 46453A BRACKET, CABLE SUPPORT, NO.3 33826T BRACKET, TRANSMISSION CONTROL CABLE, NO.2 33826U BRACKET, TRANSMISSION CONTROL CABLE, NO.3 33829H CLAMP, TRANSMISSION CONTROL CABLE 46420 CABLE ASSY, PARKING BRAKE, NO.2 46430 CABLE ASSY, PARKING BRAKE, NO.3 9415180800 ** Std Part 9010508372 ** Std Part 9020110042 ** Std Part 9155380814 ** Std Part 9011906315 ** Std Part 33827C BRACKET, TRANSMISSION CONTROL CABLE, NO.3 9155180816 ** Std Part ** 75-54 |
Scheme 3
|
(1107- )30T,35T,40T ; (1305- )20T ILLUST NO. 2 OF 2 |
Click part number in the scheme or in the list: 46503C PLATE SUB-ASSY, PARKING BRAKE46601 LEVER SUB-ASSY, PARKING BRAKE SHOE 9011912211 ** Std Part 46556 PIN, SHOE HOLD DOWN SPRING 46612B SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) 46612 STRUT, PARKING BRAKE SHOE LEVER 46550 SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 46550C WASHER, TYPE C(FOR PARKING BRAKE SHOE) 46555 SPRING, BRAKE SHOE HOLD DOWN 47456A PLATE, SHOE GUIDE(FOR PARKING BRAKE) 47459B BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) 46557 CUP, BRAKE SHOE HOLD DOWN 46201B SPRING, TENSION 46550A SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) 46550E SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) 47491A PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) 46501 DRUM SUB-ASSY, PARKING BRAKE 46501A BOLT, SERRATION(FOR PARKING BRAKE DRUM) 46540 SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 46405A SCREW SET, SHOE ADJUSTING, RH |
