(0308- )1TR#
|

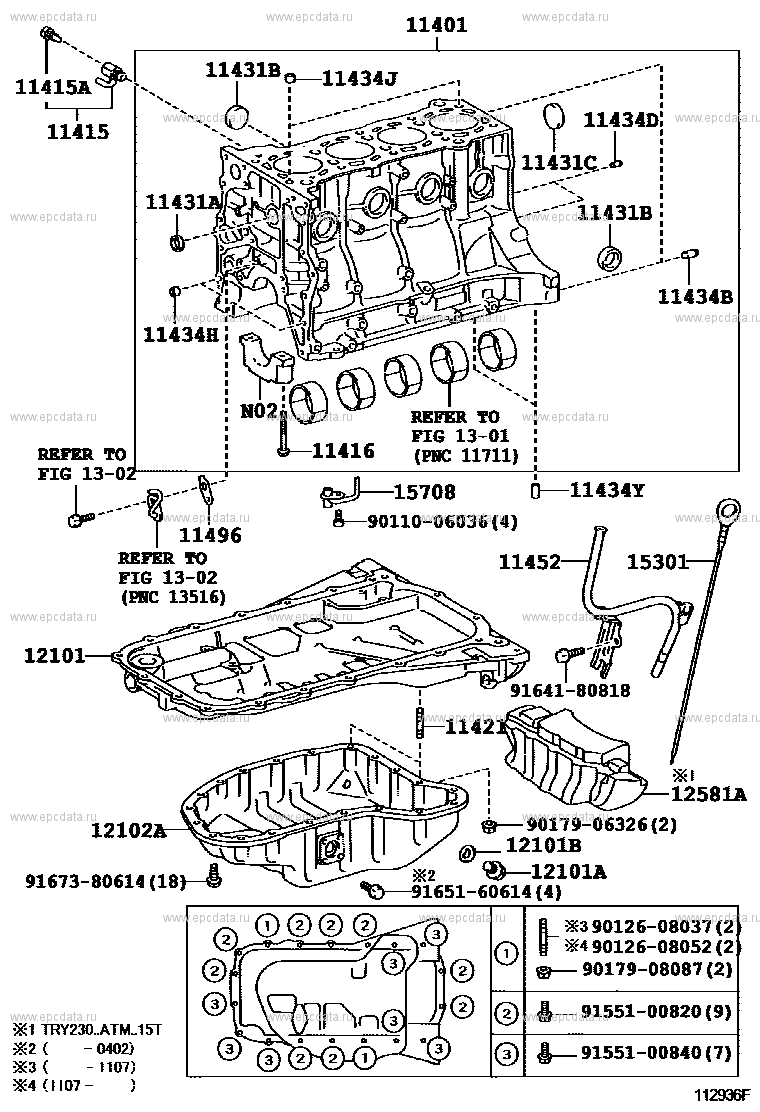

Click part number in the scheme or in the list:
15301 GAGE SUB-ASSY, OIL LEVEL
12581A INSULATOR, CYLINDER BLOCK, NO.1
11452 GUIDE, OIL LEVEL GAGE
9164180818 ** Std Part
11421 BOLT, STUD(FOR OIL PAN)
12101 PAN SUB-ASSY, OIL
12102A PAN SUB-ASSY, OIL, NO.2
9167380614 ** Std Part
9165160614 ** Std Part
12101B GASKET(FOR OIL PAN DRAIN PLUG)
12101A PLUG(FOR OIL PAN DRAIN)
9012608037 ** Std Part
9012608052 ** Std Part
9017908087 ** Std Part
9155100820 ** Std Part
9155100840 ** Std Part
9017906326 ** Std Part
** 13-02
11415A PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11415 COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11431B PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
11431A PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11434H PIN, RING (FOR TIMING BELT COVER SET)
11434J PIN, RING (FOR CYLINDER HEAD SET)
11434B PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
11431C PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
11434D PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
11434Y PIN, STRAIGHT(FOR OIL PAN)
15708 NOZZLE SUB-ASSY, OIL, NO.1
11416 BOLT(FOR CRANKSHAFT BEARING CAP SET)
11496 GASKET, OIL HOLE COVER PLATE
11401 BLOCK SUB-ASSY, CYLINDER
9011006036 ** Std Part
** 13-01 |
