Alternator for Dyna / Toyoace LY61

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 27330 27330-54290 01 08.1987 - 01.1991 ROTOR ASSY, ALTERNATOR 2L,3L..LY5#,6# 0.00 USD 02 27330 27330-54260 01 10.1989 - 01.1991 ROTOR ASSY, ALTERNATOR 2L..LY50..T2..IV;3L..LY61..TS..15T..ST..IV 12V 60A 0.00 USD 03 27330 27330-54261 01 01.1991 - 02.1992 ROTOR ASSY, ALTERNATOR 2L..LY50..T2..IV;3L..LY61..TS..15T..ST..IV 12V 60A 0.00 USD   (SUBS) 27330-54262 01   0.00 USD 04 27330 27330-54291 01 01.1991 - 02.1992 ROTOR ASSY, ALTERNATOR 2L,3L..LY5#,61 0.00 USD 05 27330 27330-54262 01 02.1992 - 01.1993 ROTOR ASSY, ALTERNATOR 2L..LY50..T2..IV;3L..LY61..TS..15T..ST..IV 12V 60A 0.00 USD 06 27330 27330-54292 01 02.1992 - 05.1995 ROTOR ASSY, ALTERNATOR 2L,3L..LY5#,61 0.00 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

Scheme 1

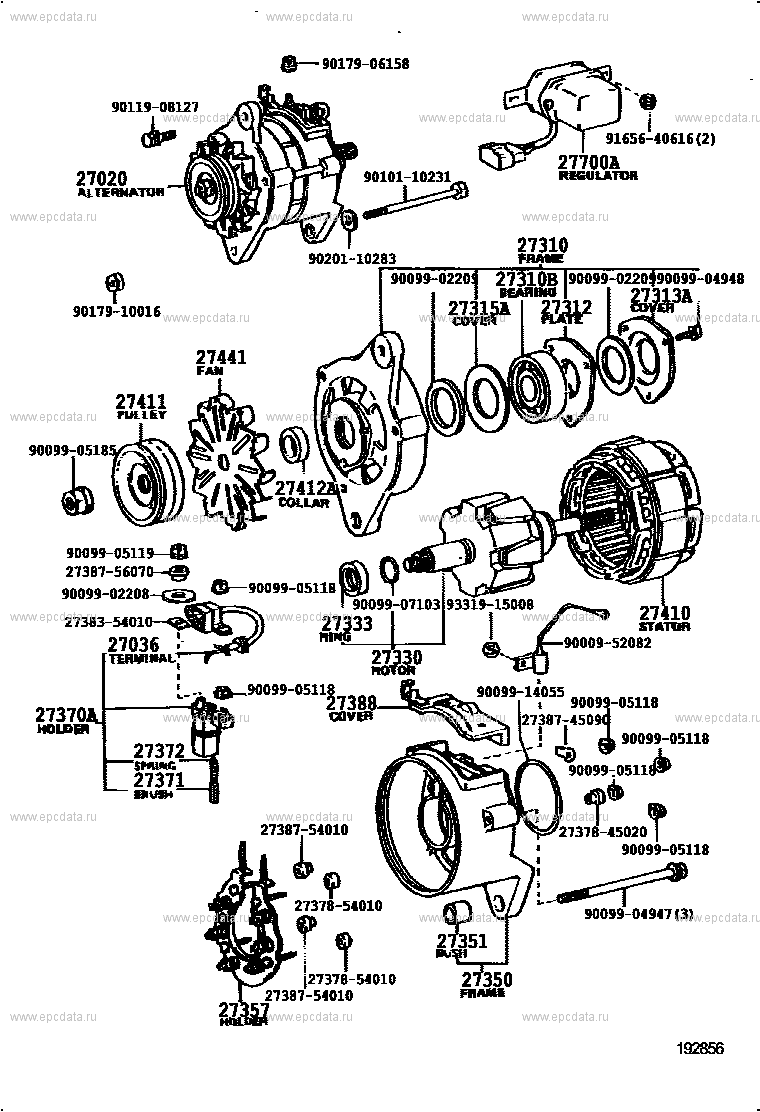

(8708- )2L,3L 12V 50A Open full size scheme Go to top

Click part number in the scheme or in the list: 9017906158 ** Std Part 9011908127 ** Std Part 9165640616 ** Std Part 27700A REGULATOR ASSY, GENERATOR 9010110231 ** Std Part 27020 ALTERNATOR ASSY 27310 FRAME ASSY, DRIVE END, ALTERNATOR 9020110283 ** Std Part 9009902209 ** Std Part 27310B BEARING(FOR ALTERNATOR DRIVE END FRAME) 9009904948 ** Std Part 27313A COVER, ALTERNATOR FELT, INNER NO.2 27312 PLATE, RETAINER 27315A COVER, ALTERNATOR FELT, INNER NO.1 9017910016 ** Std Part 27441 FAN, ALTERNATOR 27411 PULLEY, ALTERNATOR 9009905185 ** Std Part 27412A COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) 9009905119 ** Std Part 2738756070 ** Std Part 9009905118 ** Std Part 9009902208 ** Std Part 9009907103 ** Std Part 9331915008 ** Std Part 27410 STATOR ASSY, ALTERNATOR 2738354010 ** Std Part 27333 COLLAR, SPACE(FOR ALTERNATOR ROTOR) 9000952082 ** Std Part 27036 TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR 27330 ROTOR ASSY, ALTERNATOR 9009914055 ** Std Part 27388 COVER, ALTERNATOR BRUSH 27370A HOLDER ASSY, ALTERNATOR BRUSH 2738745090 ** Std Part 27372 SPRING, ALTERNATOR BRUSH 27371 BRUSH, ALTERNATOR 2738754010 ** Std Part 2737845020 ** Std Part 2737854010 ** Std Part 9009904947 ** Std Part 27351 BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27350 FRAME ASSY, RECTIFIER END 27357 HOLDER, ALTERNATOR, W/RECTIFIER

Scheme 2

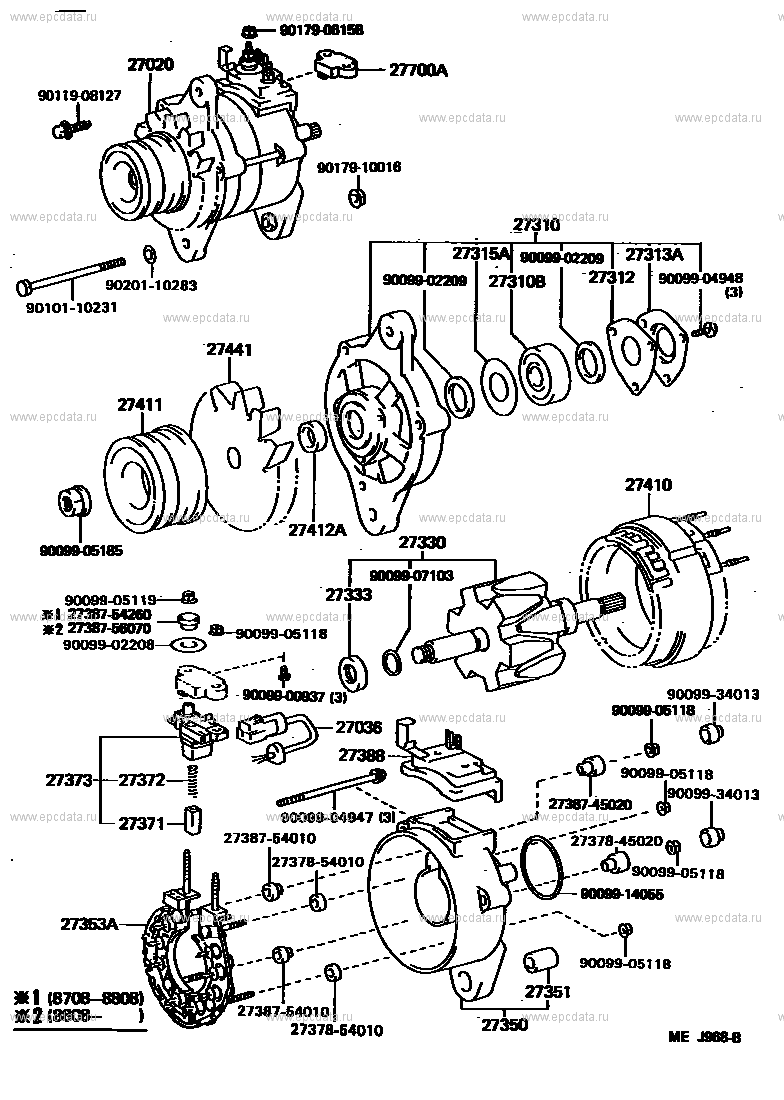

(8708- )2L,3L 12V60A Open full size scheme Go to top

Click part number in the scheme or in the list: 9017906158 ** Std Part 27020 ALTERNATOR ASSY 27700A REGULATOR ASSY, GENERATOR 9011908127 ** Std Part 9017910016 ** Std Part 27310 FRAME ASSY, DRIVE END, ALTERNATOR 27315A COVER, ALTERNATOR FELT, INNER NO.1 27313A COVER, ALTERNATOR FELT, INNER NO.2 9009902209 ** Std Part 27312 PLATE, RETAINER 9009904948 ** Std Part 27310B BEARING(FOR ALTERNATOR DRIVE END FRAME) 9020110283 ** Std Part 9010110231 ** Std Part 27441 FAN, ALTERNATOR 27411 PULLEY, ALTERNATOR 27410 STATOR ASSY, ALTERNATOR 27412A COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) 27330 ROTOR ASSY, ALTERNATOR 9009905185 ** Std Part 9009907103 ** Std Part 27333 COLLAR, SPACE(FOR ALTERNATOR ROTOR) 9009905119 ** Std Part 2738754260 ** Std Part 2738756070 ** Std Part 9009905118 ** Std Part 9009902208 ** Std Part 9009934013 ** Std Part 9009900937 ** Std Part 27036 TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR 27388 COVER, ALTERNATOR BRUSH 27373 HOLDER, ALTERNATOR BRUSH, A 27372 SPRING, ALTERNATOR BRUSH 2738745020 ** Std Part 9009904947 ** Std Part 27371 BRUSH, ALTERNATOR 2738754010 ** Std Part 2737845020 ** Std Part 2737854010 ** Std Part 9009914055 ** Std Part 27353A HOLDER, W/RECTIFIER 27351 BUSH(FOR ALTERNATOR RECTIFIER END FRAME) 27350 FRAME ASSY, RECTIFIER END

Dyna / Toyoace LY61
