Fuel injection system for Dyna / Toyoace TRU300

Click on the part subgroup below to get genuine part numbers.

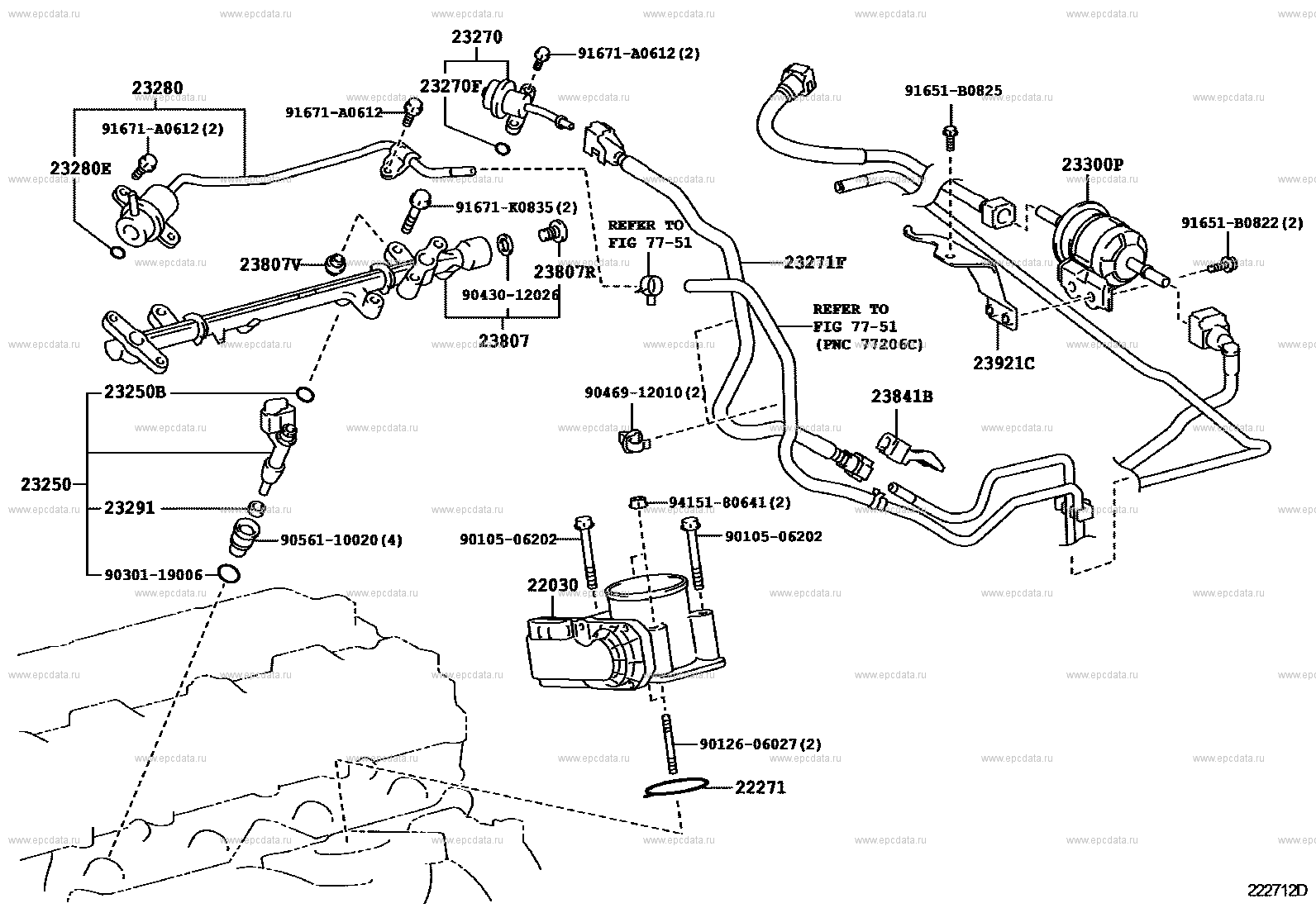

Scheme 1

(0705- )2TRFE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 23271F HOSE, FUEL 9046912010 ** Std Part 23841B CLAMP, FUEL PIPE, NO.1(FOR EFI) 23280 REGULATOR ASSY, FUEL PRESSURE 23807V SPACER, NO.1(FOR DELIVERY PIPE) 91671A0612 ** Std Part 91671K0835 ** Std Part 23807 PIPE SUB-ASSY, FUEL DELIVERY 9043012026 ** Std Part 23807R PLUG, FUEL DELIVARY PIPE 23300P FILTER, FUEL(FOR EFI) 23921C BRACKET, FUEL FILTER 91651B0822 ** Std Part 23250 INJECTOR ASSY, FUEL 9056110020 ** Std Part 23291 INSULATOR, INJECTOR VIBRATION 9030119006 ** Std Part 23250B RING, O(FOR FUEL INJECTOR) ** 77-51 22030 BODY ASSY, THROTTLE W/MOTOR 22271 GASKET, THROTTLE BODY 9010506202 ** Std Part 9012606027 ** Std Part 9415180641 ** Std Part 91651B0825 ** Std Part 23270 DAMPER ASSY, FUEL PRESSURE PULSATION 23270F RING, O(FOR PULSATION DAMPER) 23280E RING, O(FOR FUEL PRESSURE REGULATOR)

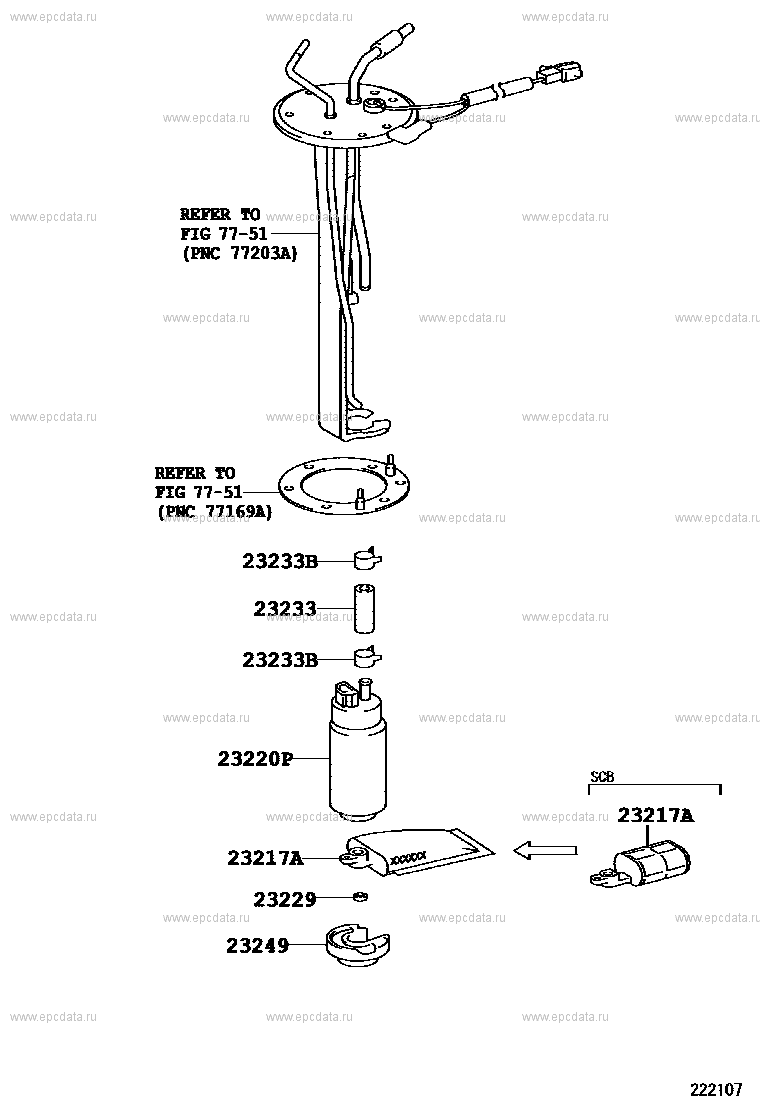

Scheme 2

(0705- )2TRFE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 23217A FILTER, FUEL PUMP ** 77-51 23233B CLIP(FOR FUEL PUMP HOSE) 23233 HOSE, FUEL PUMP 23229 CLIP(FOR FUEL PUMP FILTER) 23249 RUBBER, CUSHION(FOR FUEL PUMP) 23220P PUMP ASSY, FUEL

Dyna / Toyoace TRU300
