Mounting for Corona ST210

Click on the part subgroup below to get genuine part numbers.

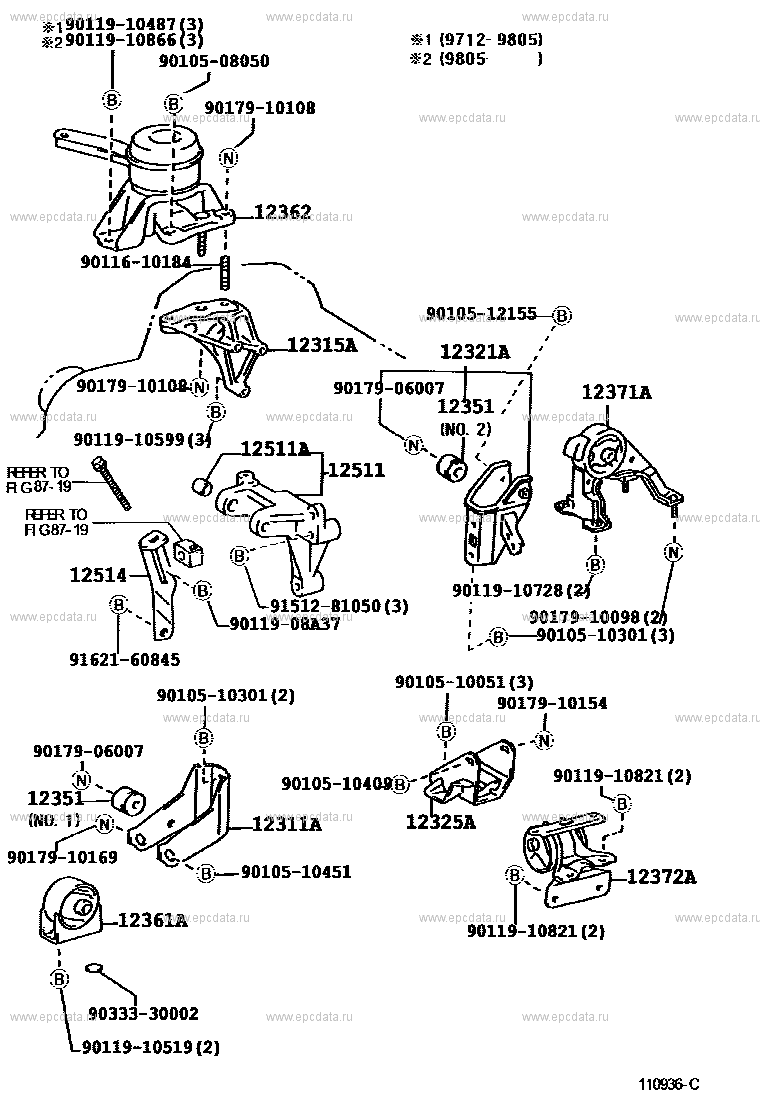

Scheme 1

(9612-9712)3SFSE Open full size scheme Go to top

Click part number in the scheme or in the list: 9011910487 ** Std Part 9010508050 ** Std Part 9017910108 ** Std Part 12321A BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) 9017906007 ** Std Part 12351 DAMPER, ENGINE MOUNTING 12362 INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 9011610184 ** Std Part 12315A BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 9011910599 ** Std Part 12371A INSULATOR, ENGINE MOUNTING, REAR 12511 BRACKET, ALTERNATOR, NO.1 9010512155 ** Std Part 12511A BUSH, ALTERNATOR BRACKET 9151281060 ** Std Part 9010510301 ** Std Part 9151281085 ** Std Part 9011910728 ** Std Part 9017910098 ** Std Part 9017910154 ** Std Part 9010510051 ** Std Part 9011910821 ** Std Part 9010510409 ** Std Part 12325A BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 12372A INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 12311A BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 9017910169 ** Std Part 9010510348 ** Std Part 12361A INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 9033330002 ** Std Part 9011910519 ** Std Part

Scheme 2

(9712- )3SFSE Open full size scheme Go to top

Click part number in the scheme or in the list: 9011910487 ** Std Part 9010508050 ** Std Part 9017910108 ** Std Part 12362 INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 9011610184 ** Std Part 12315A BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) 9010512155 ** Std Part 9017906007 ** Std Part 12351 DAMPER, ENGINE MOUNTING 12371A INSULATOR, ENGINE MOUNTING, REAR 12511 BRACKET, ALTERNATOR, NO.1 12511A BUSH, ALTERNATOR BRACKET 9017910098 ** Std Part 9151281050 ** Std Part 9010510301 ** Std Part 9011908A37 ** Std Part 9010510051 ** Std Part 12321A BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) 9017910154 ** Std Part 9011910821 ** Std Part 12325A BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 12372A INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) 12311A BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 9011910866 ** Std Part 9010510409 ** Std Part 12361A INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) 9033330002 ** Std Part 9011910519 ** Std Part 9017910169 ** Std Part 9162160845 ** Std Part 9011910599 ** Std Part 12514 BAR, ALTERNATOR BELT ADJUSTING 9011910728 ** Std Part 9010510451 ** Std Part ** 87-19

Corona ST210
