Cylinder head for Corona ST171
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

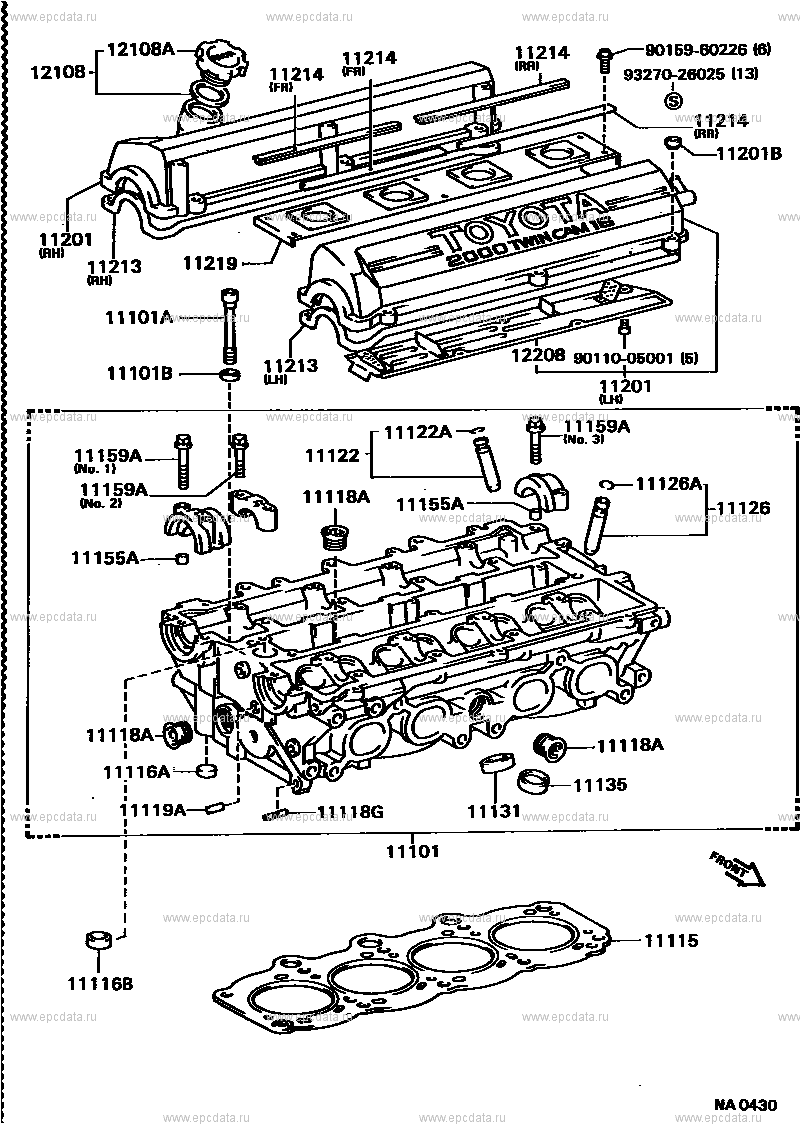

Scheme 1
| (8712-8911)3SGE |
Click part number in the scheme or in the list: 12108A GASKET(FOR OIL FILLER CAP)9015960226 ** Std Part 11214 GASKET, CYLINDER HEAD COVER, NO.2 12108 CAP SUB-ASSY, OIL FILLER 9327026025 ** Std Part 11201B WASHER, SEAL(FOR CYLINDER HEAD COVER) 11201 COVER SUB-ASSY, CYLINDER HEAD 11219 COVER, CYLINDER HEAD, NO.3 11213 GASKET, CYLINDER HEAD COVER 11101A BOLT(FOR CYLINDER HEAD SET) 12208 PLATE SUB-ASSY, VENTILATION BAFFLE 9011005001 ** Std Part 11101B WASHER, PLATE(FOR CYLINDER HEAD SET) 11159A BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11122A RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) 11122 BUSH, INTAKE VALVE GUIDE 11126A RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) 11118A PLUG, STRAIGHT, NO.1 11155A PIN, RING W/HEAD 11126 BUSH, EXHAUST VALVE GUIDE 11116A PLUG, TIGHT, NO.1 11135 SEAT, EXHAUST VALVE 11119A PIN, STRAIGHT, NO.1 11131 SEAT, INTAKE VALVE 11118G PIN, SLOTTED SPRING, NO.1 11101 HEAD SUB-ASSY, CYLINDER 11115 GASKET, CYLINDER HEAD 11116B PLUG, TIGHT, NO.2 |
Scheme 2
