Air cleaner for Corona AT140

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8201-8310)3AU Open full size scheme Go to top

Click part number in the scheme or in the list: 17883A CLAMP(FOR AIR CLEANER HOSE, NO.3) 17700 CLEANER ASSY, AIR 17700A NUT, WING(FOR AIR CLEANER) 17882A CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882 HOSE, AIR CLEANER, NO.2 9165640620 ** Std Part 9011906164 ** Std Part 17881A CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881 HOSE, AIR CLEANER, NO.1 17700F BOLT, STUD(FOR AIR CLEANER SETTING) 9044622001 ** Std Part 17883 HOSE, AIR CLEANER, NO.3 9011906075 ** Std Part 17706 INLET SUB-ASSY, AIR CLEANER, NO.2 9165140814 ** Std Part ** 17-09 17705 CAP SUB-ASSY, AIR CLEANER 17845 GASKET, AIR CLEANER CAP 17841 GASKET, FILTER ELEMENT 17801 ELEMENT SUB-ASSY, AIR CLEANER FILTER 17061 DIAPHRAGM SUB-ASSY 17305 VALVE SUB-ASSY, REED 17848 GASKET, AIR CLEANER TO CARBURETOR 17812 FILTER, AIR CLEANER, NO.2 17728 VALVE, THERMOSTATIC 25710D VALVE ASSY, AIR SWITCHING

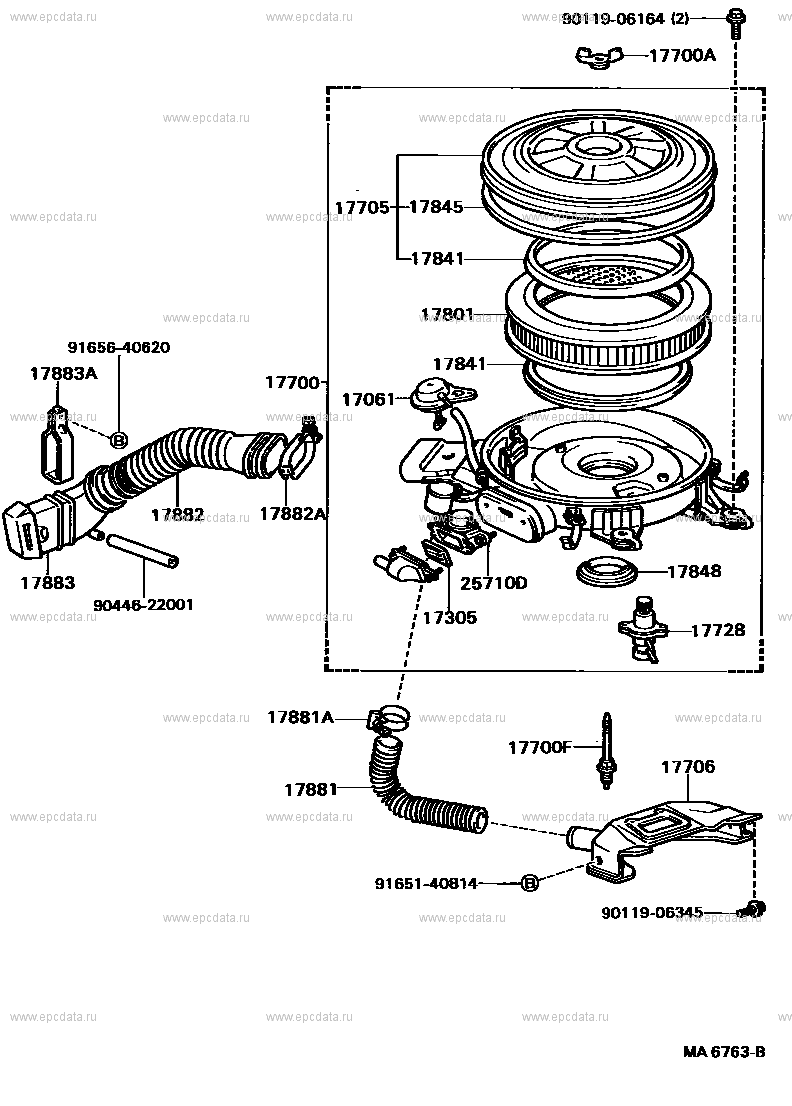

Scheme 2

(8310-8712)3AU Open full size scheme Go to top

Click part number in the scheme or in the list: 9011906164 ** Std Part 17700A NUT, WING(FOR AIR CLEANER) 17845 GASKET, AIR CLEANER CAP 17705 CAP SUB-ASSY, AIR CLEANER 17841 GASKET, FILTER ELEMENT 17801 ELEMENT SUB-ASSY, AIR CLEANER FILTER 9165640620 ** Std Part 17883A CLAMP(FOR AIR CLEANER HOSE, NO.3) 17700 CLEANER ASSY, AIR 17061 DIAPHRAGM SUB-ASSY 17882A CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882 HOSE, AIR CLEANER, NO.2 17848 GASKET, AIR CLEANER TO CARBURETOR 17883 HOSE, AIR CLEANER, NO.3 25710D VALVE ASSY, AIR SWITCHING 9044622001 ** Std Part 17305 VALVE SUB-ASSY, REED 17728 VALVE, THERMOSTATIC 17881A CLAMP(FOR AIR CLEANER HOSE, NO.1) 17700F BOLT, STUD(FOR AIR CLEANER SETTING) 17706 INLET SUB-ASSY, AIR CLEANER, NO.2 17881 HOSE, AIR CLEANER, NO.1 9165140814 ** Std Part 9011906345 ** Std Part
