Switch & relay & computer for Corolla Spacio NZE121N
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

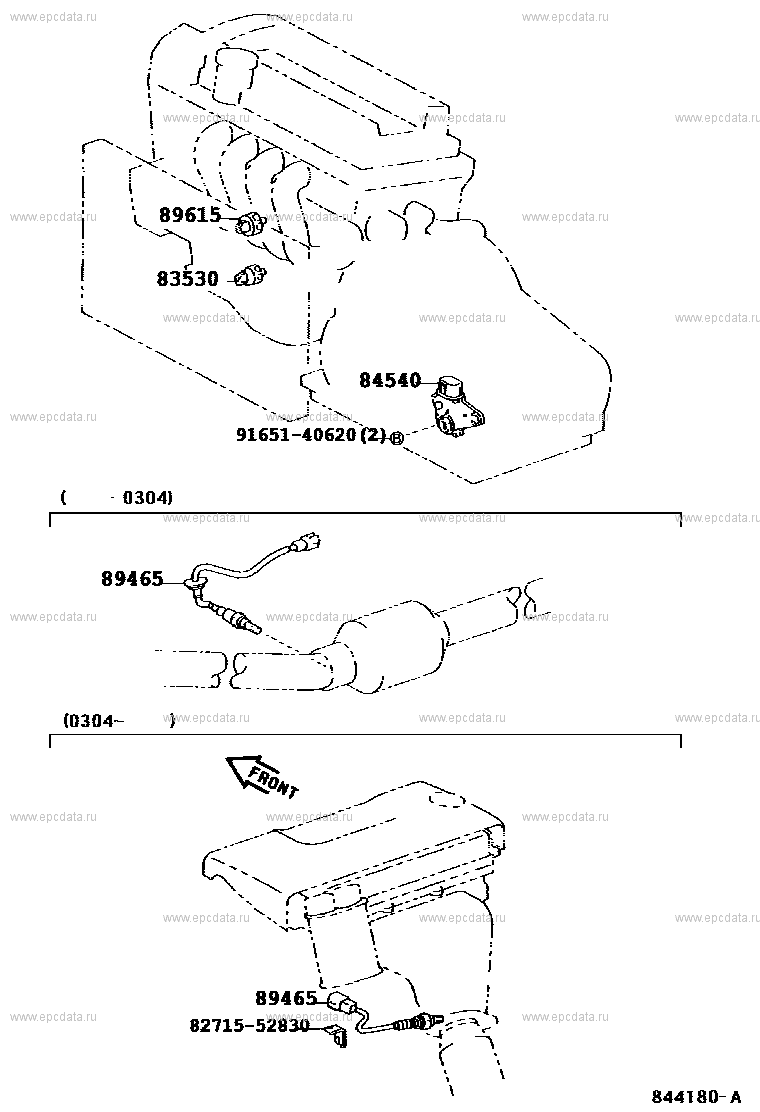

Scheme 1
|
(0105- )NZE121 ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ ILLUST NO. 1 OF 6 |
Click part number in the scheme or in the list: 89615 SENSOR, KNOCK CONTROL83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 89465 SENSOR, OXYGEN 9165140620 ** Std Part 84540 SWITCH ASSY, NEUTRAL START 8271552830 ** Std Part |
Scheme 2
|
(0105- ) ｴﾝｼﾞﾝ ﾙｰﾑ ILLUST NO. 2 OF 6 |
Click part number in the scheme or in the list: 85934 RELAY, MAGNET-CLUTCH82600F FUSE, FUSE BLOCK 85927A RELAY, COOLING FAN, NO.2 85927 RELAY, COOLING FAN 89654 RELAY, POWER STEERING 82210J FUSIBLE LINK 86530 RELAY ASSY, HORN ** 84-04 85926 RELAY, HEADLAMP DIMMER 85916P RELAY, HEADLAMP 91631J0612 ** Std Part 85928B RESISTOR, COOLING FAN 91651B0618 ** Std Part 82616 PULLER, FUSE 9017906292 ** Std Part 82741 BLOCK, ENGINE ROOM RELAY 82663 COVER, RELAY BLOCK, LOWER 82662B COVER, RELAY BLOCK, UPPER, NO.2 89438 SWITCH, POWER STEERING OIL PRESSURE 82662C COVER, RELAY BLOCK, UPPER, NO.3 82742A BLOCK, ENGINE ROOM RELAY, NO.5 82663C COVER, RELAY BLOCK LOWER, NO.4 |
Scheme 3
Scheme 4
|
(0105- ) ｲｸﾞﾆｯｼｮﾝ & ｺﾝﾋﾞﾈｰｼｮﾝ ｽｲｯﾁ ILLUST NO. 4 OF 6 |
Click part number in the scheme or in the list: 9016840129 ** Std Part84450 SWITCH ASSY, IGNITION OR STARTER 84650 SWITCH ASSY, WINDSHIELD WIPER 84140 SWITCH ASSY, HEADLAMP DIMMER 89245B SENSOR, STEERING 84306 CABLE SUB-ASSY, SPIRAL 9046400551 ** Std Part 84052 SWITCH ASSY, UN-LOCK WARNING |

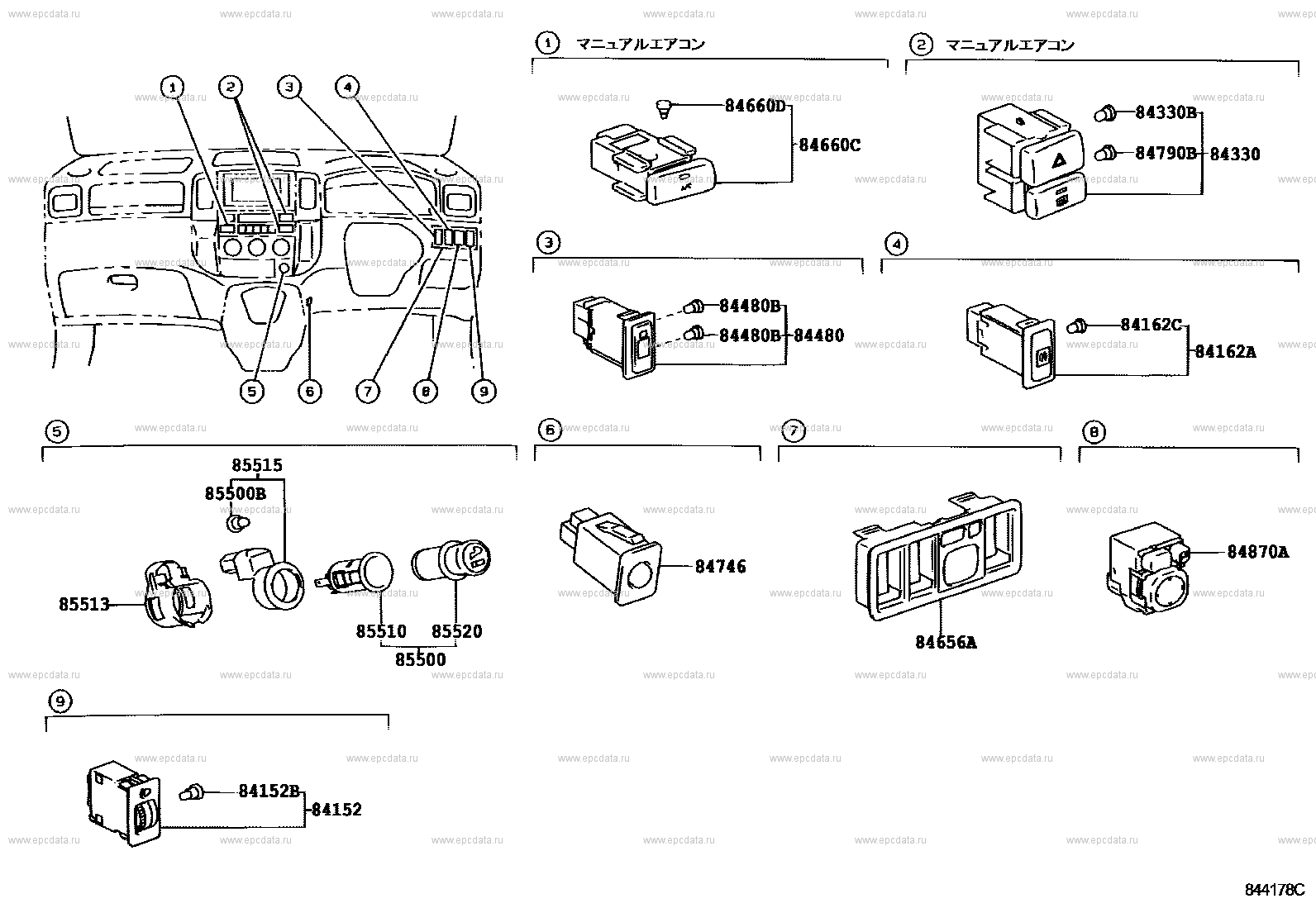

Scheme 5
|
(0105-0304) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 5 OF 6 |
Click part number in the scheme or in the list: 85500B BULB, CIGARETTE LIGHTER85513 COVER, CIGARETTE LIGHTER 85515 STAY, CIGARETTE LIGHTER BEZEL 84152B BULB (FOR HEADLAMP LEVELING SWITCH) 84152 SWITCH, HEADLAMP LEVELING 85510 SOCKET & RETAINER ASSY, CIGARLIGHTER 85500 LIGHTER ASSY, CIGARETTE 84746 SWITCH, TIRE PRESSURE WARNING 84656A BEZEL, SWITCH 84870A SWITCH ASSY, OUTER MIRROR 84162A SWITCH, REAR FOG LAMP 84162C BULB (FOR REAR FOG LAMP SWITCH) 84330 SWITCH ASSY, HAZARD WARNING SIGNAL 84330B BULB, HAZARD WARNING SIGNAL SWITCH 84790B BULB(FOR REAR WINDOW DEFOGGER SWITCH) 84660C SWITCH, COOLER 84660D BULB(FOR COOLER SWITCH) 84480 SWITCH ASSY, MAIN 84480B BULB, MAIN SWITCH ASSY 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER |

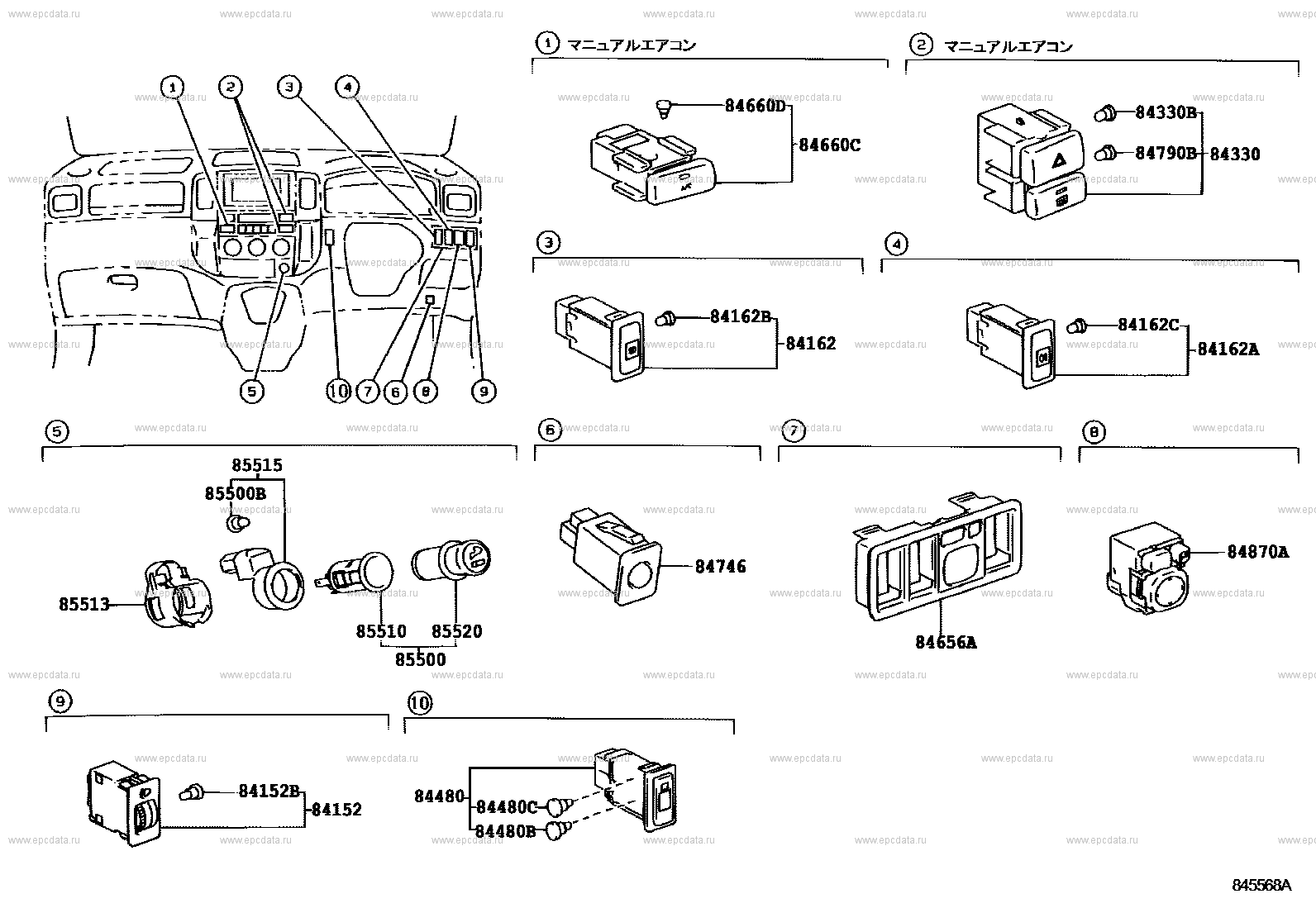

Scheme 6
|
(0304- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ILLUST NO. 5 OF 6 |
Click part number in the scheme or in the list: 85500B BULB, CIGARETTE LIGHTER85513 COVER, CIGARETTE LIGHTER 85515 STAY, CIGARETTE LIGHTER BEZEL 84152B BULB (FOR HEADLAMP LEVELING SWITCH) 84152 SWITCH, HEADLAMP LEVELING 85510 SOCKET & RETAINER ASSY, CIGARLIGHTER 85500 LIGHTER ASSY, CIGARETTE 84746 SWITCH, TIRE PRESSURE WARNING 84656A BEZEL, SWITCH 84870A SWITCH ASSY, OUTER MIRROR 84162 SWITCH, FRONT FOG LAMP 84162B BULB, FOG LAMP SWITCH 84330 SWITCH ASSY, HAZARD WARNING SIGNAL 84330B BULB, HAZARD WARNING SIGNAL SWITCH 84790B BULB(FOR REAR WINDOW DEFOGGER SWITCH) 84660C SWITCH, COOLER 84660D BULB(FOR COOLER SWITCH) 84480 SWITCH ASSY, MAIN 84480C CAP BULB, MAIN SWITCH ASSY 84480B BULB, MAIN SWITCH ASSY 85520 KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER 84162A SWITCH, REAR FOG LAMP 84162C BULB (FOR REAR FOG LAMP SWITCH) |
Scheme 7
