Shift lever & retainer for Corolla Rumion ZRE154N

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0710- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: ** 84-01 33504F KNOB SUB-ASSY, SHIFT LEVER 35907 HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) 35906 WIRE SUB-ASSY, INDICATOR LAMP 33866 SPRING, SHIFT LOCK RELEASE 33563 BUTTON, SHIFT LOCK RELEASE 35976 COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) 35953 GUIDE, POSITION INDICATOR LIGHT 35974 HOUSING, POSITION INDICATOR, LOWER 35975 COVER, SLIDE (FOR POSITION INDICATOR) 33560 UNIT ASSY, SHIFT LOCK CONTROL 9017908247 ** Std Part

Scheme 2

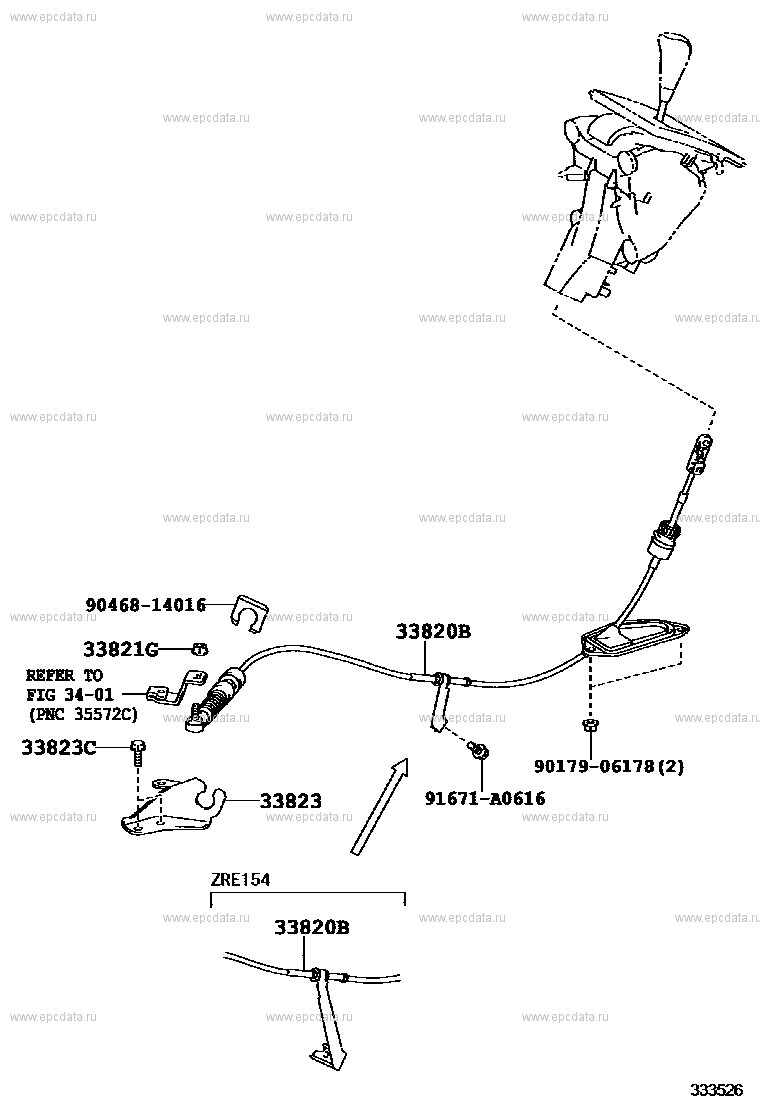

(0710- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: ** 34-01 33823 BRACKET, TRANSMISSION CONTROL CABLE, NO.1 9046814016 ** Std Part 33823C BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) 33821G NUT (FOR TRANSMISSION CONTROL CABLE) 91671A0616 ** Std Part 9017906178 ** Std Part 33820B CABLE ASSY, TRANSMISSION CONTROL

Corolla Rumion ZRE154N
