Manifold for Corolla Rumion ZRE152N

Click on the part subgroup below to get genuine part numbers.

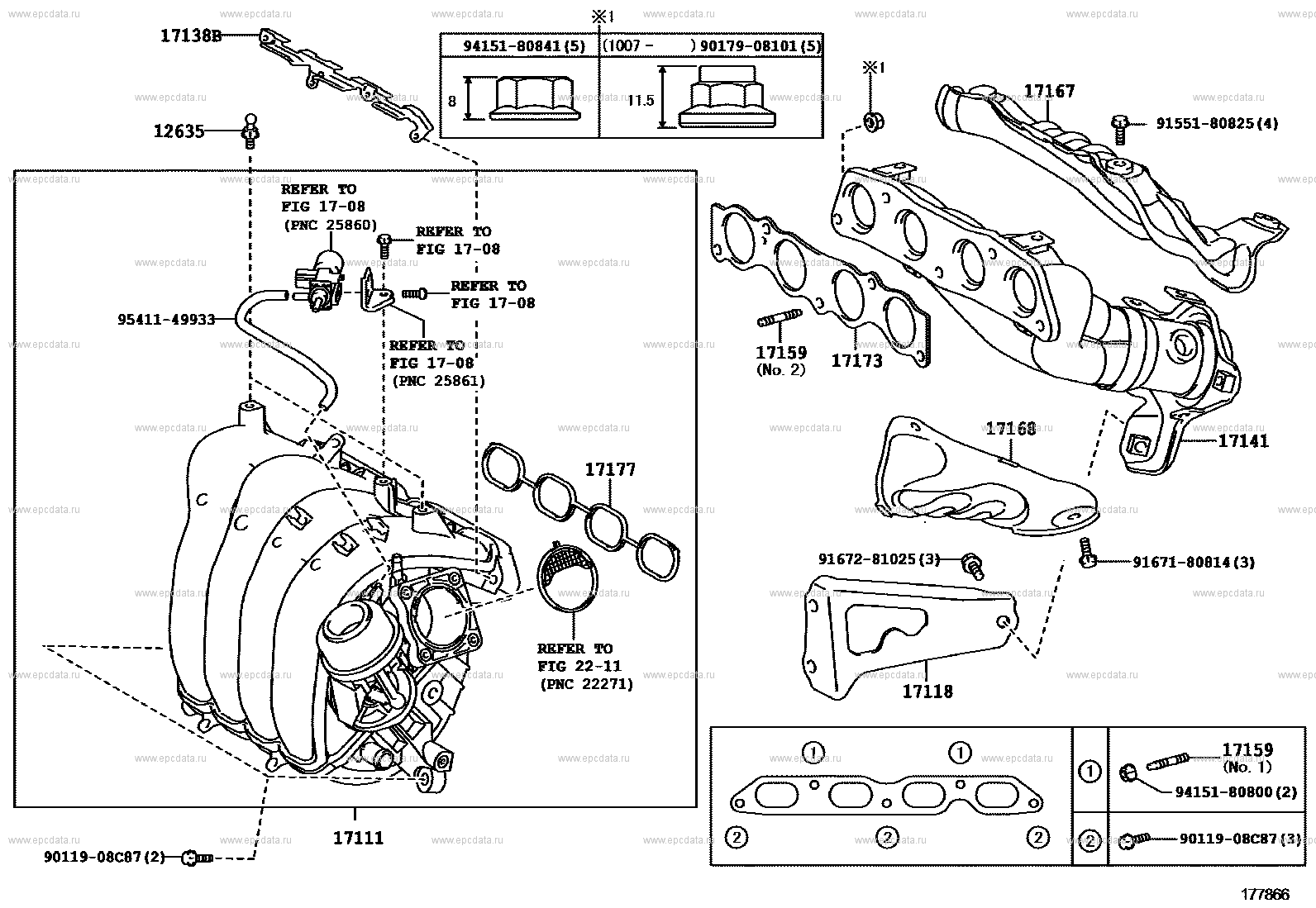

Scheme 1

(0912-1212)2ZRFAE..ZRE152 Open full size scheme Go to top

Click part number in the scheme or in the list: 17168 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 9541149933 ** Std Part ** 22-11 ** 17-08 12635 JOINT, ENGINE COVER 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 17159 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 9415180800 ** Std Part 9011908C87 ** Std Part 17138B STAY, INTAKE MANIFOLD 17118 STAY, MANIFOLD 17141 MANIFOLD, EXHAUST 17167 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 GASKET, EXHAUST MANIFOLD TO HEAD 9167281025 ** Std Part 9155180825 ** Std Part 9167180814 ** Std Part 17111 MANIFOLD, INTAKE 9415180841 ** Std Part 9017908101 ** Std Part

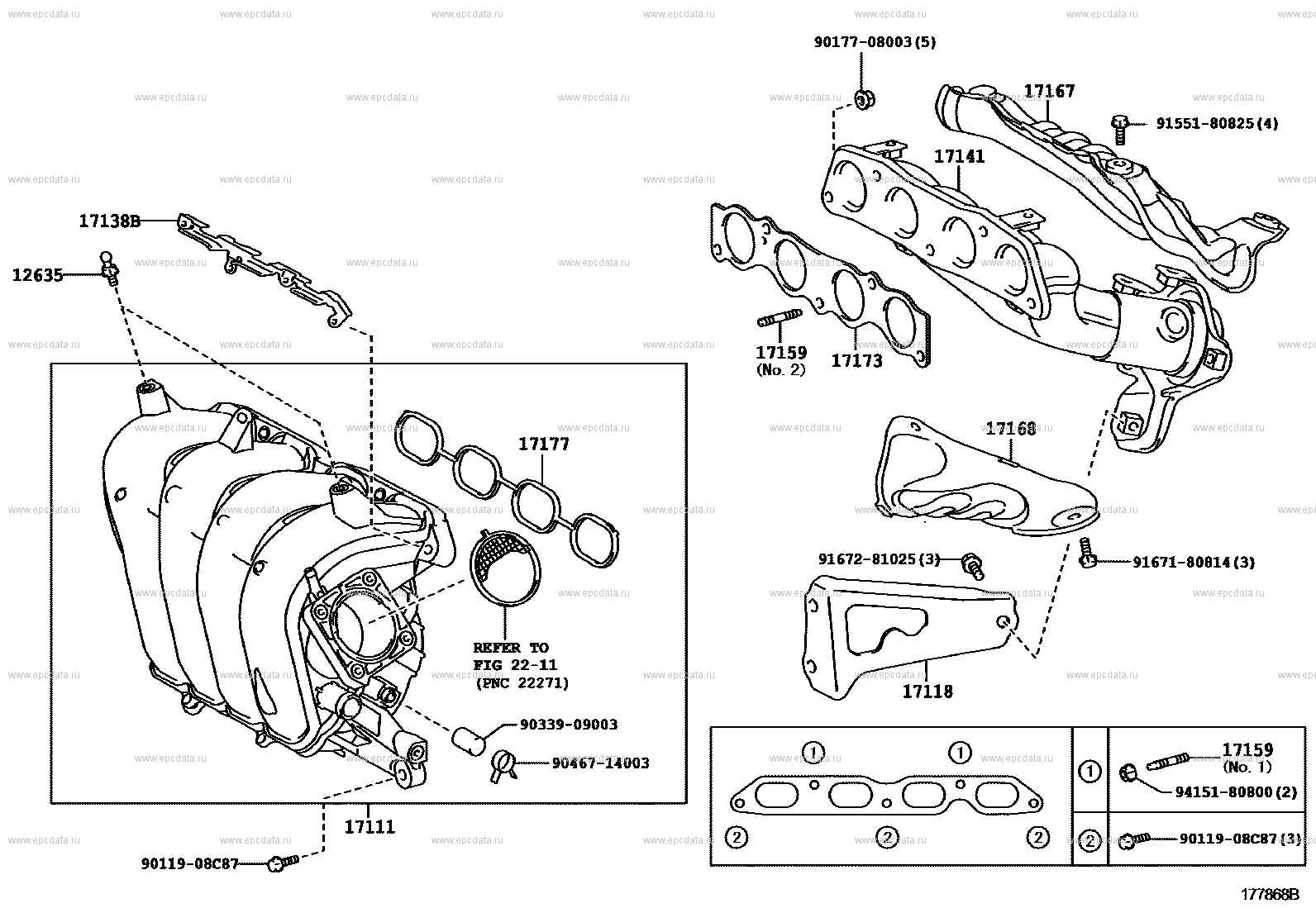

Scheme 2

(1212- )2ZRFAE..ZRE152 Open full size scheme Go to top

Click part number in the scheme or in the list: 17168 INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 12635 JOINT, ENGINE COVER 17159 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 9415180800 ** Std Part 9011908C87 ** Std Part 17138B STAY, INTAKE MANIFOLD 17118 STAY, MANIFOLD 17167 INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 17173 GASKET, EXHAUST MANIFOLD TO HEAD 9167281025 ** Std Part 9155180825 ** Std Part 9167180814 ** Std Part 9017708003 ** Std Part 9046714003 ** Std Part 9033909003 ** Std Part 17111 MANIFOLD, INTAKE 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 ** 22-11 17141 MANIFOLD, EXHAUST

Corolla Rumion ZRE152N
