Heating & air conditioning - cooler unit for Corolla Rumion NZE151N

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 87138C 87138-26150 01 10.2007 - 12.2009 RESISTOR, BLOWER NZE151..X 12.59 USD 02 87138C 87138-26150 01 12.2009 - RESISTOR, BLOWER NZE151,ZRE154..X 12.59 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

Scheme 1

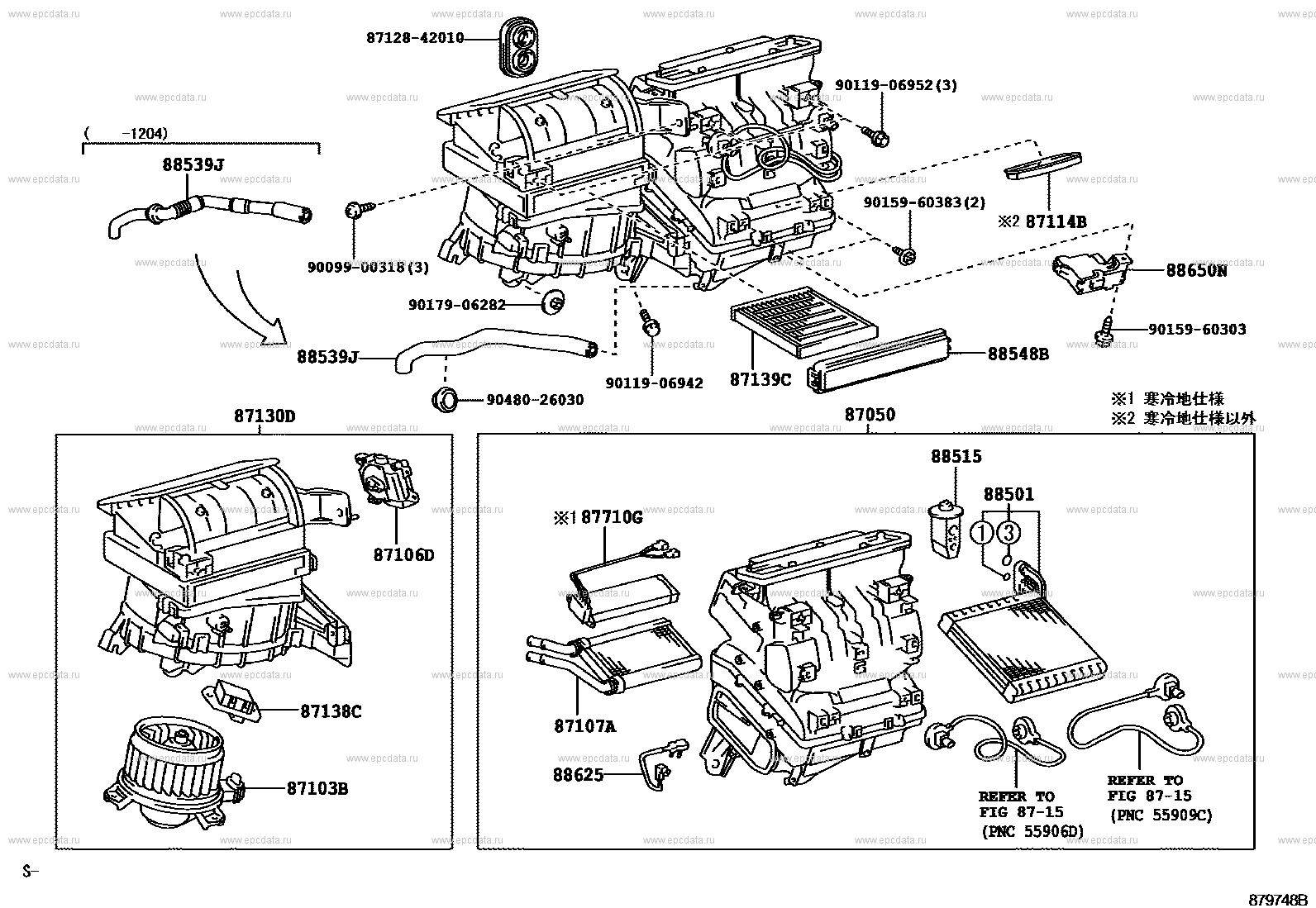

(0710- )X ﾏﾆｭｱﾙ ｴｱｺﾝ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 88650N AMPLIFIER ASSY, AIR CONDITIONER 88548B CASE, AIR FILTER 87050 RADIATOR ASSY, AIR CONDITIONER 87139C FILTER, CLEAN AIR 87710G QUICK HEATER ASSY 87107A UNIT SUB-ASSY, HEATER RADIATOR 88625 THERMISTOR, COOLER, NO.1 88515 VALVE, COOLER EXPANSION 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 87114B COVER, HEATER 87106D SERVO SUB-ASSY, DAMPER, NO.1 87130D BLOWER ASSY 87103B MOTOR SUB-ASSY, BLOWER W/FAN 87138C RESISTOR, BLOWER 8712842010 ** Std Part 9009900318 ** Std Part 9017906282 ** Std Part 9011906952 ** Std Part 9015960383 ** Std Part 9011906942 ** Std Part 9015960303 ** Std Part ** 87-15 88539J HOSE, DRAIN COOLER 9048026030 ** Std Part

Scheme 2

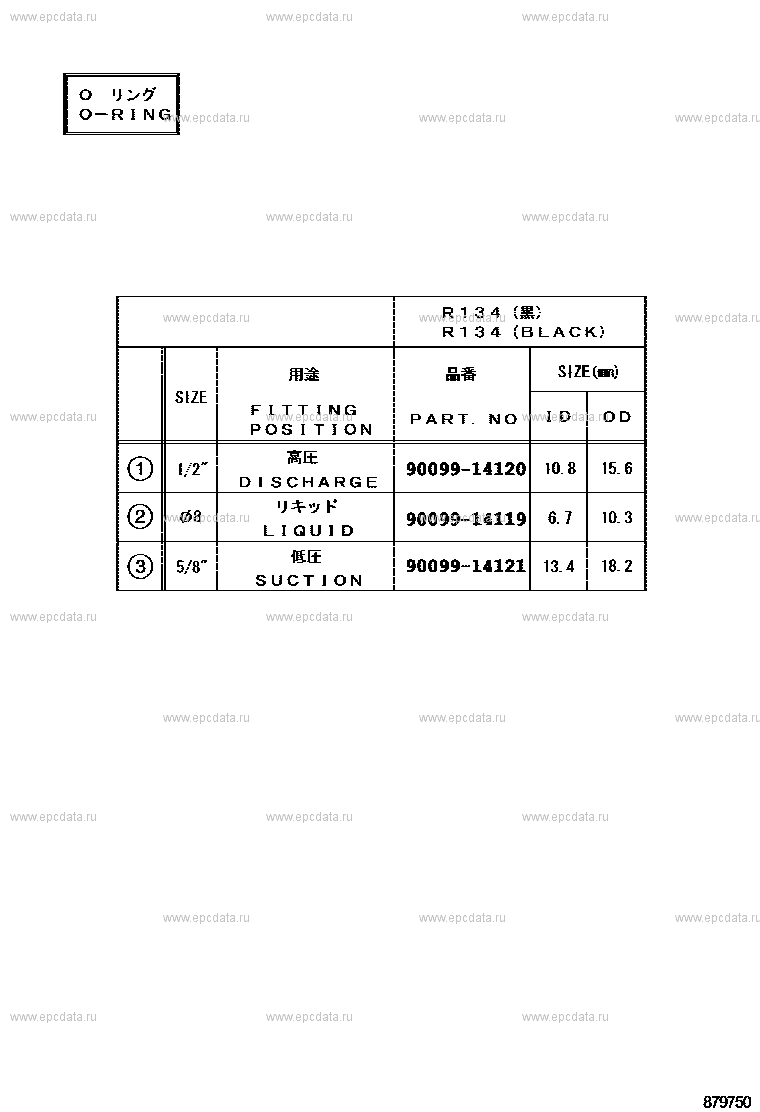

(0710- ) O-ﾘﾝｸﾞ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9009914120 ** Std Part 9009914121 ** Std Part 9009914119 ** Std Part

Corolla Rumion NZE151N
