ToyotaCorolla 2AL20AL20-KGHNSBody and interiorFront seat & seat track

Front seat & seat track for Corolla 2 AL20




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 72524 72525-14010-02 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..DLX,GL
RH,DARK WINE,DARK WINE,TRIM3#		 8.38 USD
  (SUBS) 72525-14010-01 01   8.38 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
02 72524 72525-14010-03 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..DLX,GL
RH,GRAY,GRAY,TRIM1#		 8.38 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
03 72524 72525-14010-36 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..CTD,DLX,GL
RH,BROWN,BROWN,TRIM4#		 8.38 USD
  (SUBS) 72525-14010-01 01   8.38 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
04 72524 72525-20050-02 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..GL
LIME,RH,DARK WINE,RED/MAROON,TRIM3#		 4.19 USD
  (SUBS) 72525-20050-01 01   4.37 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
05 72524 72526-14010-02 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..DLX,GL
LH,DARK WINE,DARK WINE,TRIM3#		 8.38 USD
  (SUBS) 72526-14010-01 01   8.38 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
06 72524 72526-14010-03 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..DLX,GL
LH,GRAY,GRAY,TRIM1#		 8.38 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
07 72524 72526-14010-36 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..CTD,DLX,GL
LH,BROWN,BROWN,TRIM4#		 8.38 USD
  (SUBS) 72526-14010-01 01   8.38 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
08 72524 72526-20040-02 01 05.1982 - 08.1984 HANDLE, RECLINING ADJUSTER RELEASE AL2#..GL
LIME,LH,DARK WINE,RED/MAROON,TRIM3#		 4.19 USD
          ** Rev.Ref.No ** ( From-0001 , To-0074 )
        From AL20 -0000001 PLANT.A32
        From AL20 -3500001 PLANT.A32
        From AL20 -7000001 PLANT.P11
        To AL20 -7053199 PLANT.P11
        To AL20 -0138896 PLANT.A32
        To AL20 -3536445 PLANT.A32
09 72524 72525-12090-03 01 08.1984 - 04.1986 HANDLE, RECLINING ADJUSTER RELEASE AL2#
RH,GRAY,GRAY,TRIM1#		 0.00 USD
          ** Rev.Ref.No ** ( From-0075 , To-0120 )
        From AL20 -7053200 PLANT.P11
        From AL20 -0138897 PLANT.A32
        From AL20 -3536446 PLANT.A32
        To AL20 -0217555 PLANT.A32
        To AL20 -3555089 PLANT.A32
        To AL20 -7082584 PLANT.P11
10 72524 72525-12090-22 01 08.1984 - 04.1986 HANDLE, RECLINING ADJUSTER RELEASE AL20..GL
LIME,RH,DARK WINE,DARK WINE,TRIM3#		  8.48
to 8.56 USD
  (SUBS) 72525-12090-01 01   8.56 USD
          ** Rev.Ref.No ** ( From-0075 , To-0120 )
        From AL20 -7053200 PLANT.P11
        From AL20 -0138897 PLANT.A32
        From AL20 -3536446 PLANT.A32
        To AL20 -0217555 PLANT.A32
        To AL20 -3555089 PLANT.A32
        To AL20 -7082584 PLANT.P11
11 72524 72526-12030-03 01 08.1984 - 04.1986 HANDLE, RECLINING ADJUSTER RELEASE AL2#
LH,GRAY,GRAY,TRIM1#		 0.00 USD
          ** Rev.Ref.No ** ( From-0075 , To-0120 )
        From AL20 -7053200 PLANT.P11
        From AL20 -0138897 PLANT.A32
        From AL20 -3536446 PLANT.A32
        To AL20 -0217555 PLANT.A32
        To AL20 -3555089 PLANT.A32
        To AL20 -7082584 PLANT.P11
12 72524 72526-12030-22 01 08.1984 - 04.1986 HANDLE, RECLINING ADJUSTER RELEASE AL20..GL
LIME,LH,DARK WINE,DARK WINE,TRIM3#		 8.56 USD
  (SUBS) 72526-12030-01 01    8.48
to 8.56 USD
          ** Rev.Ref.No ** ( From-0075 , To-0120 )
        From AL20 -7053200 PLANT.P11
        From AL20 -0138897 PLANT.A32
        From AL20 -3536446 PLANT.A32
        To AL20 -0217555 PLANT.A32
        To AL20 -3555089 PLANT.A32
        To AL20 -7082584 PLANT.P11

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8205-8408)CTD,DLX,GL,SE
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

71430S BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71950 HEADREST ASSY, FRONT SEAT
71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630S SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
72760A ADJUSTER ASSY, LUMBAR SUPPORT
71812A RING, HOG, SMALL (FOR FRONT SEAT)
71551S PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71956A SUPPORT, FRONT SEAT HEADREST
72791 LEVER, LUMBAR SUPPORT
71073W WIRE, FRONT SEAT BACK COVER
9331616014 ** Std Part
71440S BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71074S COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640S SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552S PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
9046804137 ** Std Part
71410S CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
9052308001 ** Std Part
9038612016 ** Std Part
71072S COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71512S PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71420S CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71012S FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
73515 RAIL, FRONT SEAT UNDER TRAY, NO.1
71753 TRAY, FRONT SEAT UNDER
73516 RAIL, FRONT SEAT UNDER TRAY, NO.2
9356014008 ** Std Part

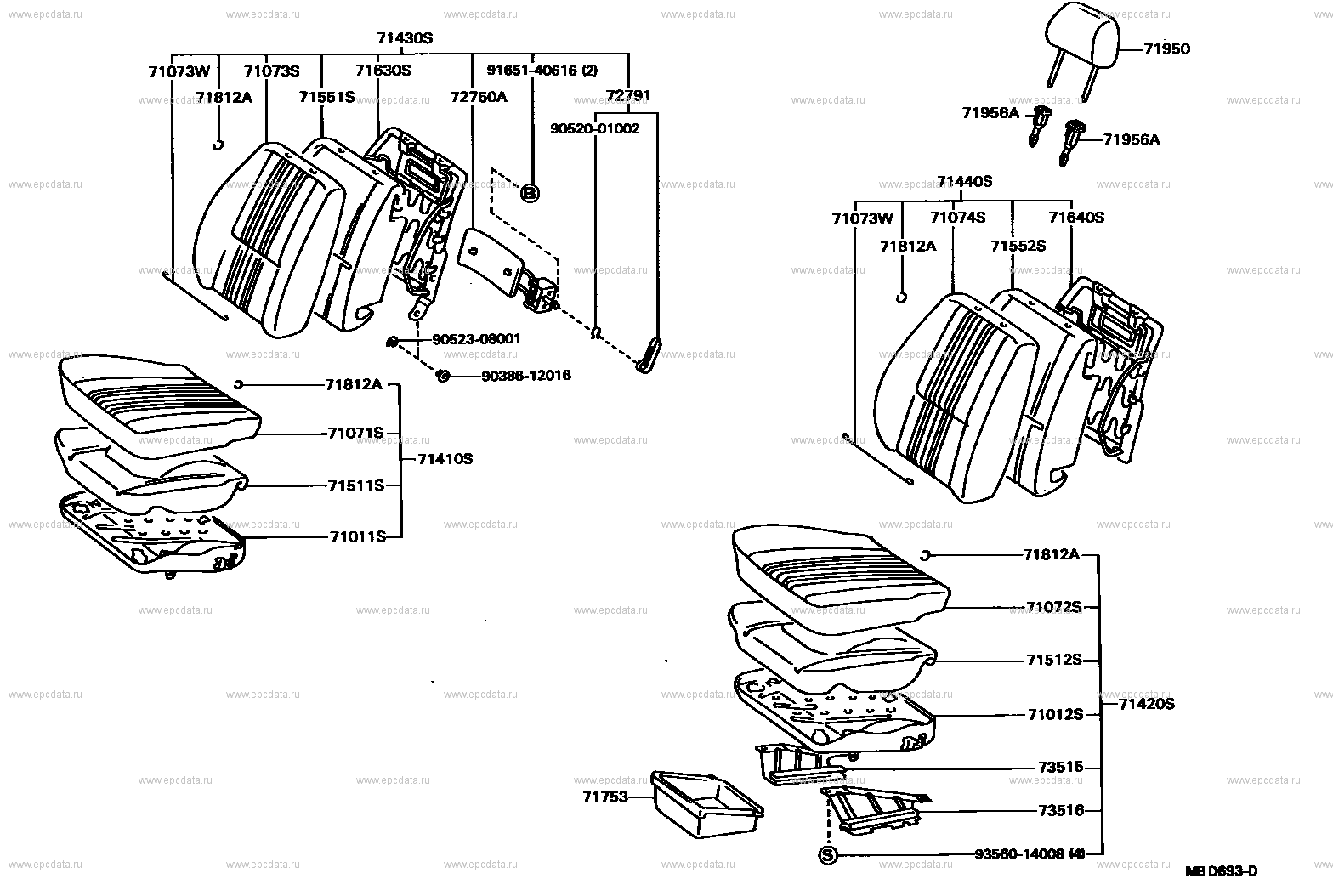

Scheme 2

(8408- )AL20
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

71430S BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71950 HEADREST ASSY, FRONT SEAT
71630S SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
9165140616 ** Std Part
71073W WIRE, FRONT SEAT BACK COVER
71073S COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
72791 LEVER, LUMBAR SUPPORT
71551S PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
72760A ADJUSTER ASSY, LUMBAR SUPPORT
71812A RING, HOG, SMALL (FOR FRONT SEAT)
71956A SUPPORT, FRONT SEAT HEADREST
9052001002 ** Std Part
71440S BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71074S COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640S SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552S PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
9052308001 ** Std Part
9038612016 ** Std Part
71071S COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71410S CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71511S PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71011S FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71072S COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71512S PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71420S CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71012S FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
73515 RAIL, FRONT SEAT UNDER TRAY, NO.1
71753 TRAY, FRONT SEAT UNDER
73516 RAIL, FRONT SEAT UNDER TRAY, NO.2
9356014008 ** Std Part

Scheme 3

(8205-8408)
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

9011910111 ** Std Part
9015480002 ** Std Part
72011 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
9016840049 ** Std Part
72011A SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
72524 HANDLE, RECLINING ADJUSTER RELEASE
71811D SHIELD, FRONT SEAT CUSHION, RH
9011908335 ** Std Part
** 71-03
72012 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
9016840011 ** Std Part
72553 COVER, RECLINING PEDAL
72210 CABLE ASSY, SEAT TRACK CONTROL
71812D SHIELD, FRONT SEAT CUSHION, LH
72457A KNOB, SEAT ADJUSTER
9324954006 ** Std Part
9052001002 ** Std Part
9014940012 ** Std Part
72021 ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
71861 SHIELD, FRONT SEAT CUSHION, INNER RH
72501C PIPE SUB-ASSY, RECLINING CONNECTING
9011908336 ** Std Part
72496 KNOB, VERTICAL SEAT ADJUSTER, NO.2
9016000800 ** Std Part
72022 ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
71862 SHIELD, FRONT SEAT CUSHION, INNER LH

Scheme 4

(8408- )
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

9015480002 ** Std Part
9324954006 ** Std Part
9011910229 ** Std Part
9011908080 ** Std Part
9011908174 ** Std Part
9011908335 ** Std Part
71811D SHIELD, FRONT SEAT CUSHION, RH
72524 HANDLE, RECLINING ADJUSTER RELEASE
72011 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011A SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER)
9016840036 ** Std Part
72012 ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
** 71-03
9016840011 ** Std Part
72553 COVER, RECLINING PEDAL
72210 CABLE ASSY, SEAT TRACK CONTROL
71812D SHIELD, FRONT SEAT CUSHION, LH
9016840049 ** Std Part
72457A KNOB, SEAT ADJUSTER
9052001002 ** Std Part
9014940012 ** Std Part
72021 ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
71861 SHIELD, FRONT SEAT CUSHION, INNER RH
72501C PIPE SUB-ASSY, RECLINING CONNECTING
72496 KNOB, VERTICAL SEAT ADJUSTER, NO.2
9616000800 ** Std Part
72022 ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
9011908336 ** Std Part
71862 SHIELD, FRONT SEAT CUSHION, INNER LH
