Rear license plate lamp for Corolla TE70

Click on the part subgroup below to get genuine part numbers.

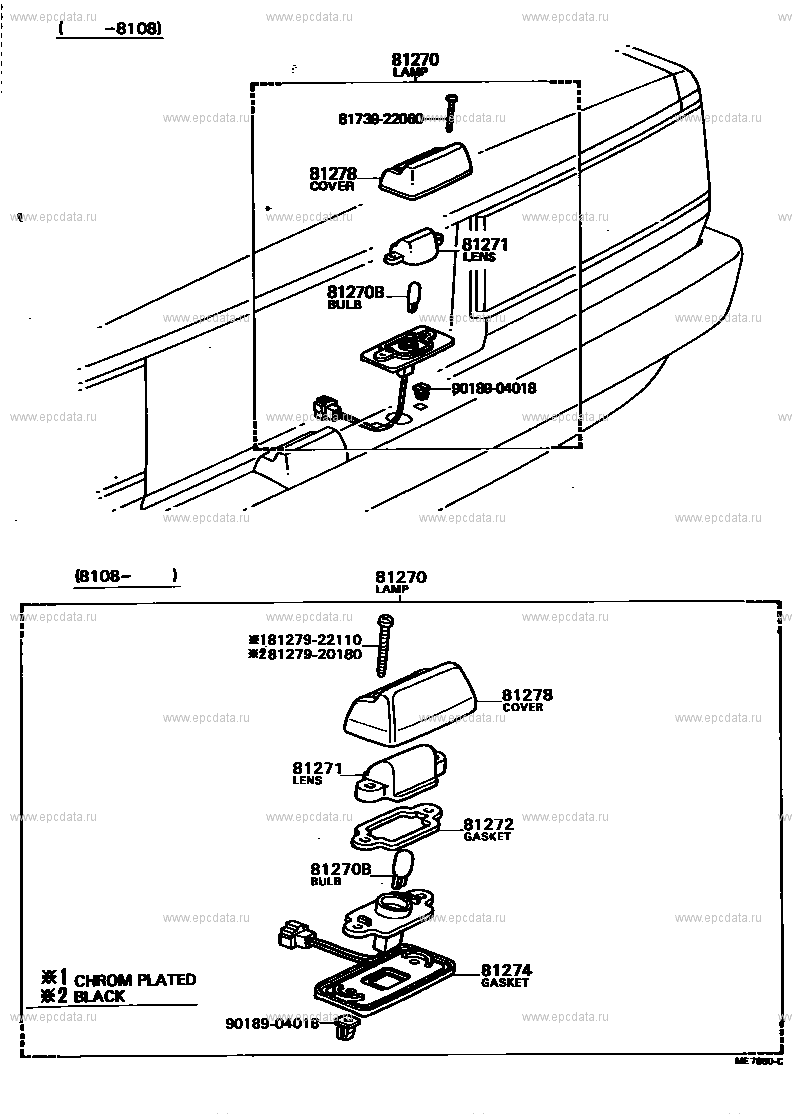

Scheme 1

(7903-8304)AE70,CE70,KE70,TE70,71 Open full size scheme Go to top

Click part number in the scheme or in the list: 81270 LAMP ASSY, LICENSE PLATE 8173922060 ** Std Part 81278 COVER, LICENSE PLATE LAMP 81271 LENS, LICENSE PLATE LAMP 81270B BULB (FOR LICENSE PLATE LAMP) 9018904018 ** Std Part 8127922110 ** Std Part 8127920180 ** Std Part 81272 GASKET, LICENSE PLATE LAMP LENS 81274 GASKET, LICENSE PLATE LAMP BODY

Scheme 2

(7903-8304)AE70,CE70,KE70,TE70,71 Open full size scheme Go to top

Click part number in the scheme or in the list: 81270 LAMP ASSY, LICENSE PLATE 9017905177 ** Std Part 81270B BULB (FOR LICENSE PLATE LAMP) 81278 COVER, LICENSE PLATE LAMP 9044607534 ** Std Part 81274 GASKET, LICENSE PLATE LAMP BODY 9351015020 ** Std Part 81277D REFLECTOR, LICENSE PLATE LAMP

Corolla TE70
