Switch & relay & computer for Corolla EE90
Click on the part subgroup below to get genuine part numbers.

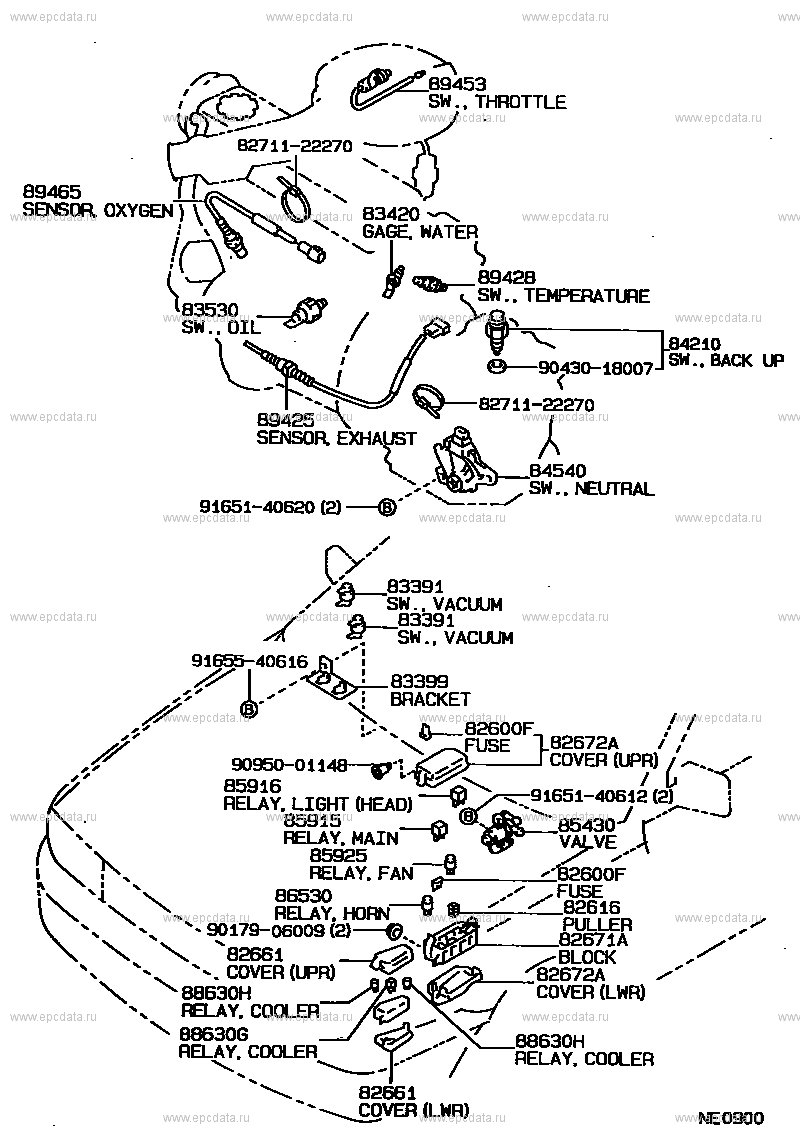

Scheme 1
| (8705-8905)EE9# ; (8905-8908)EE96,97,98 |
Click part number in the scheme or in the list: 89453 SWITCH, THROTTLE POSITION (FOR T.C.S.)8271122270 ** Std Part 89465 SENSOR, OXYGEN 83420 GAGE ASSY, WATER TEMPERATURE SENDER 89428 SWITCH, TEMPERATURE DETECT, NO.2 83530 SWITCH ASSY, OIL PRESSURE (FOR ENGINE) 84210 SWITCH ASSY, BACK-UP LAMP 9043018007 ** Std Part 89425 SENSOR, EXHAUST GAS TEMPERATURE 84540 SWITCH ASSY, NEUTRAL START 9165140620 ** Std Part 83391 SWITCH, VACUUM 9165540616 ** Std Part 83399 BRACKET, VACUUM SWITCH 82600F FUSE, FUSE BLOCK 82672A COVER, JUNCTION BLOCK 9095001148 ** Std Part 85916 RELAY, LIGHT CONTROL 9165140612 ** Std Part 85915 RELAY, MAIN 85430 VALVE, OUTER VENT CONTROL 85925 RELAY, RADIATOR FAN 86530 RELAY ASSY, HORN 82616 PULLER, FUSE 9017906009 ** Std Part 82671A BLOCK, JUNCTION 82661 COVER, RELAY BLOCK, NO.1 88630H RELAY ASSY, COOLER 88630G RELAY ASSY, COOLER |

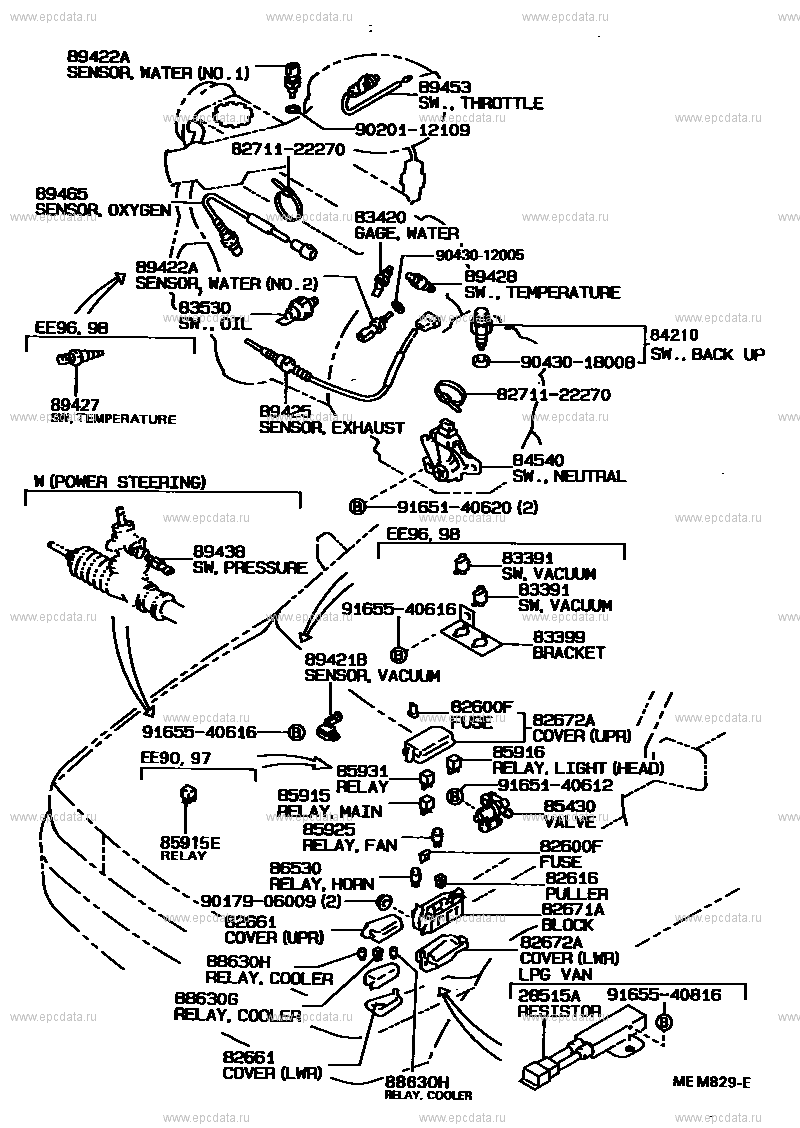

Scheme 2
Scheme 3
Scheme 4
Scheme 5
| (8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL |
Click part number in the scheme or in the list: 9017906070 ** Std Part89550 COMPUTER ASSY, EMISSION CONTROL 9015950138 ** Std Part 9165540616 ** Std Part 81980 FLASHER ASSY, TURN SIGNAL 85980 RELAY ASSY, DOOR CONTROL 85910Q RELAY (FOR IDLE UP) 85916 RELAY, LIGHT CONTROL 85910T RELAY, LPG 82650A BREAKER ASSY, WIRING CIRCUIT, NO.2 85939 RELAY, POWER WINDOW 9056006201 ** Std Part 82641 RELAY, INTEGRATION NO.1 89279A COVER, COMPUTER 82600F FUSE, FUSE BLOCK 85910C RELAY ASSY (FOR HEATER BLOWER MOTOR) 89533 COMPUTER, 4 WHEEL DRIVE CONTROL 82650 BREAKER ASSY, WIRING CIRCUIT, NO.1 9331915010 ** Std Part 89551 COMPUTER, EMISSION CONTROL 83650 FUSEE 89557 BRACKET, EMISSION CONTROL COMPUTER, NO.1 89558 BRACKET, EMISSION CONTROL COMPUTER, NO.2 28521 TIMER, PREHEATING 28529 BRACKET, PREHEATING TIMER, NO.1 |
Scheme 6
Scheme 7
| (8705-8905) ; (8905-8908)AE91,CE96,97,EE96,97,98..CBR,DSL |
Click part number in the scheme or in the list: 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR84930 SWITCH ASSY, DOOR CONTROL 84340 SWITCH ASSY, STOP LAMP 9018906048 ** Std Part 9412041000 ** Std Part 85930 RELAY ASSY, POWER WINDOW 84931B SWITCH, DOOR CONTROL 84810 SWITCH ASSY, POWER WINDOW REGULATOR 9015960081 ** Std Part 89425 SENSOR, EXHAUST GAS TEMPERATURE 87989 RELAY, MIRROR CONTROL 84870A SWITCH ASSY, OUTER MIRROR 9043008252 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE 9165160616 ** Std Part 9331514012 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 9015950219 ** Std Part 83320 GAGE ASSY, FUEL SENDER 9011906390 ** Std Part 83361 GASKET, FUEL SENDER GAGE 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 82817H PROTECTOR, WIRING HARNESS 84236B COVER, COURTESY LAMP SWITCH 9015960229 ** Std Part |
Scheme 8
| (8905- )3D,4D,5D ; (8908- )V,WG |
Click part number in the scheme or in the list: 84820 MASTER SWITCH ASSY, POWER WINDOW REGULATOR84810 SWITCH ASSY, POWER WINDOW REGULATOR 84930 SWITCH ASSY, DOOR CONTROL 84340 SWITCH ASSY, STOP LAMP 9354054012 ** Std Part 84656A BEZEL, SWITCH 84727 SWITCH, SHIFT LOCK CONTROL 84931B SWITCH, DOOR CONTROL 9046312570 ** Std Part 89425 SENSOR, EXHAUST GAS TEMPERATURE 87989 RELAY, MIRROR CONTROL 84870A SWITCH ASSY, OUTER MIRROR 9043008252 ** Std Part 84550 SWITCH ASSY, PARKING BRAKE 9015960081 ** Std Part 9165160616 ** Std Part 9331514012 ** Std Part 84233 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 9015950219 ** Std Part 9018906048 ** Std Part 9011906390 ** Std Part 83320 GAGE ASSY, FUEL SENDER 9011906601 ** Std Part 83361 GASKET, FUEL SENDER GAGE 84234 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 82817H PROTECTOR, WIRING HARNESS 84236B COVER, COURTESY LAMP SWITCH 9015960229 ** Std Part |
Scheme 9
| (8705- ) |
Click part number in the scheme or in the list: 89373 SENSOR, LAMP FAILURE INDICATOR84236 SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM) 9331515010 ** Std Part 89439 BRACKET, SENSOR 9017906009 ** Std Part 9165140612 ** Std Part 85940B RELAY ASSY, REAR WIPER 9165140610 ** Std Part 84235 SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) |
