Steering wheel for Corolla CE90
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(8705- )DX,FXD,GL,STD,TX,XE ; (8905- ) ｼﾝﾀｲｼﾖｳｶﾞｲｼﾔﾖｳ ｼﾔﾘﾖｳ |
Click part number in the scheme or in the list: 45130 BUTTON ASSY, HORN45131 BUTTON, HORN, NO.1 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 9351015012 ** Std Part 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 9354044016 ** Std Part 45158A SOCKET, HORN BUTTON JOINT 45180 COVER SUB-ASSY, STEERING WHEEL 9015950210 ** Std Part |
Scheme 2
|
(8705- )DX,FXD,GL,STD,TX,XE ; (8905- ) ｼﾝﾀｲｼﾖｳｶﾞｲｼﾔﾖｳ ｼﾔﾘﾖｳ |
Click part number in the scheme or in the list: 45130 BUTTON ASSY, HORN45131 BUTTON, HORN, NO.1 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 9351015012 ** Std Part 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 9354044016 ** Std Part 45158A SOCKET, HORN BUTTON JOINT 45180 COVER SUB-ASSY, STEERING WHEEL 9015950210 ** Std Part |
Scheme 3
|
(8705-8905)SE..CBR,DSL ; (8708-8908)GL ; (8805-8905)XE ｳﾚﾀﾝ |
Click part number in the scheme or in the list: 45130 BUTTON ASSY, HORN45124 ORNAMENT, STEERING WHEEL MARK 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 45015B PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.2 9331915012 ** Std Part 9351014014 ** Std Part 45180 COVER SUB-ASSY, STEERING WHEEL |

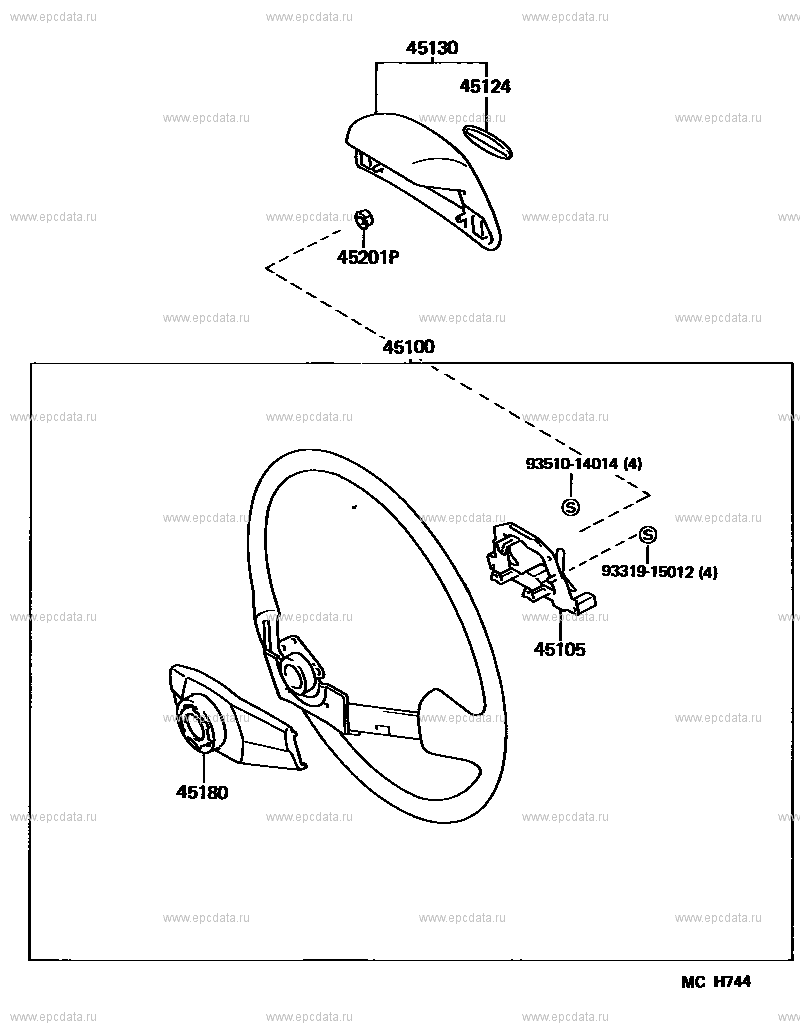

Scheme 4
|
(8905- )SE,XE..CBR,DSL,EFI ; (8908- )GL ｳﾚﾀﾝ |
Click part number in the scheme or in the list: 45130 BUTTON ASSY, HORN45124 ORNAMENT, STEERING WHEEL MARK 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 9351014014 ** Std Part 9331915012 ** Std Part 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 45180 COVER SUB-ASSY, STEERING WHEEL |
Scheme 5
|
(8705- )FXG,FXL,FXZI,G ; (8805-8905)SE..EFI ; (8901- )SE ; (8905- )FXGTV,FXV,FXVS,FXZS,LT ; (8912- )XE XE ｻﾙ-ﾝ ﾘﾐﾃﾂﾄﾞ,SE ｽｰﾊﾟ ﾘﾐﾃｯﾄﾞ |
Click part number in the scheme or in the list: 45130 BUTTON ASSY, HORN45124 ORNAMENT, STEERING WHEEL MARK 45201P NUT, STEERING WHEEL SET 45100 WHEEL ASSY, STEERING 45105 PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 9015950223 ** Std Part 45180 COVER SUB-ASSY, STEERING WHEEL |
