Oil cooler & tube (atm) for Coaster XZB50
Click on the part subgroup below to get genuine part numbers.

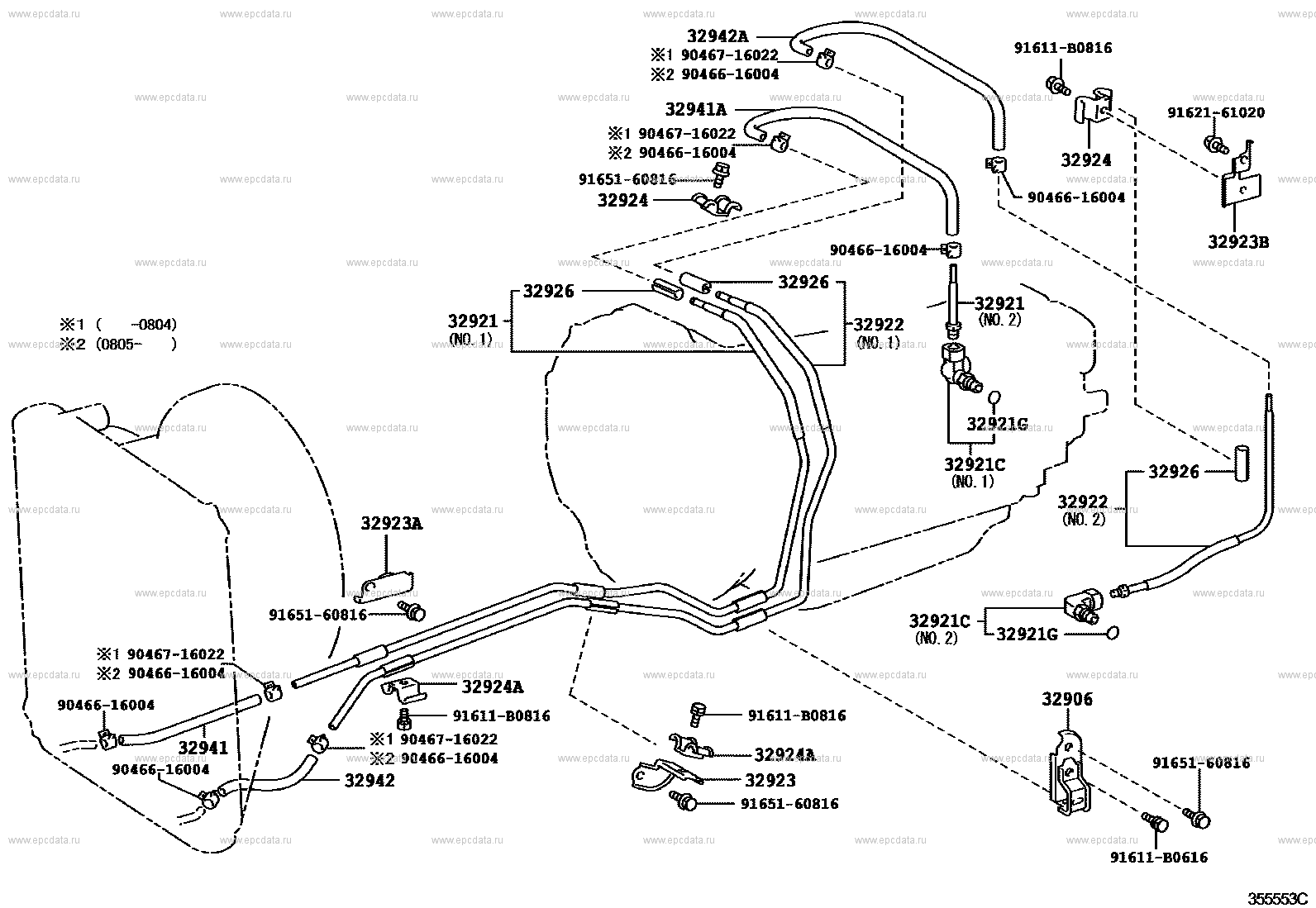

Scheme 1
|
(0512-1108)6FC A860E,A861E |
Click part number in the scheme or in the list: 32906 TUBE SUB-ASSY, OIL COOLER32921 TUBE, OIL COOLER INLET, NO.1 32921C UNION(FOR OIL COOLER TUBE) 32921G RING, O(FOR OIL COOLER TUBE UNION) 32922 TUBE, OIL COOLER OUTLET, NO.1 32923 CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32923A CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32923B CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 32924 CLAMP, OIL COOLER TUBE, NO.2 32924A CLAMP(FOR OIL COOLER TUBE, NO.2) 32926 CUSHION, OIL COOLER TUBE(ATM) 32941 HOSE, OIL COOLER INLET, NO.1 32941A HOSE, OIL COOLER INLET, NO.2 32942 HOSE, OIL COOLER OUTLET, NO.1 32942A HOSE, OIL COOLER OUTLET, NO.2 9046616004 ** Std Part 91611B0616 ** Std Part 9165160816 ** Std Part 9162161020 ** Std Part 91611B0816 ** Std Part 9046716022 ** Std Part |
Scheme 2
|
(1108- )6FC A860E,A861E |
Click part number in the scheme or in the list: 32925 CLAMP, OIL COOLER TUBE, NO.332921 TUBE, OIL COOLER INLET, NO.1 32921C UNION(FOR OIL COOLER TUBE) 32921G RING, O(FOR OIL COOLER TUBE UNION) 32922 TUBE, OIL COOLER OUTLET, NO.1 32923 CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32923A CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE 32923B CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 32924A CLAMP(FOR OIL COOLER TUBE, NO.2) 32923C CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 32924 CLAMP, OIL COOLER TUBE, NO.2 32921D HOSE(FOR OIL COOLER INLET) 32926 CUSHION, OIL COOLER TUBE(ATM) 32941 HOSE, OIL COOLER INLET, NO.1 32941J CLIP, NO.1(FOR OIL COOLER HOSE) 32942E CLIP, NO.2(FOR OIL COOLER HOSE) 32922A HOSE(FOR OIL COOLER OUTLET) 32941A HOSE, OIL COOLER INLET, NO.2 32942 HOSE, OIL COOLER OUTLET, NO.1 32942A HOSE, OIL COOLER OUTLET, NO.2 91611B0616 ** Std Part 9165160816 ** Std Part 91611B0816 ** Std Part 9162161020 ** Std Part 9046616004 ** Std Part |
