Automatic door for Coaster XZB50
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(9301-1209) ｸﾞﾗｲﾄﾞ ｼｷ ILLUST NO. 1 OF 4 |
Click part number in the scheme or in the list: 9165140612 ** Std Part9011908511 ** Std Part 86659C BRACKET, BUZZER, AUTOMATIC DOOR 86650D BUZZER ASSY 9165140616 ** Std Part 85638A SPACER, AUTOMATIC DOOR 85450F MOTOR ASSY, DOOR CONTROL 9020208039 ** Std Part 9010906122 ** Std Part 85980B RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) 85610A ACTUATOR ASSY, ACCEL INTER LOCK 9011906255 ** Std Part |
Scheme 2
|
(9301-1209) ｵﾘﾄﾞ ｼｷ ILLUST NO. 1 OF 4 |
Click part number in the scheme or in the list: 86650D BUZZER ASSY86659C BRACKET, BUZZER, AUTOMATIC DOOR 85629 HOLDER, AUTOMATIC DOOR 85980B RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) 85610A ACTUATOR ASSY, ACCEL INTER LOCK 9011906255 ** Std Part 9011908357 ** Std Part 9011908354 ** Std Part 9165160835 ** Std Part 9165140616 ** Std Part |
Scheme 3
|
(1209- ) ｸﾞﾗｲﾄﾞ ｼｷ ILLUST NO. 1 OF 4 |
Click part number in the scheme or in the list: 86659C BRACKET, BUZZER, AUTOMATIC DOOR38990A LEVER ASSY, SELECT CONTROL 91511B0614 ** Std Part 9011908511 ** Std Part 9020208039 ** Std Part 9010906122 ** Std Part 9165140612 ** Std Part 9165140616 ** Std Part 86650D BUZZER ASSY 85638A SPACER, AUTOMATIC DOOR 85450F MOTOR ASSY, DOOR CONTROL |
Scheme 4
|
(1209- ) ｵﾘﾄﾞ ｼｷ ILLUST NO. 1 OF 4 |

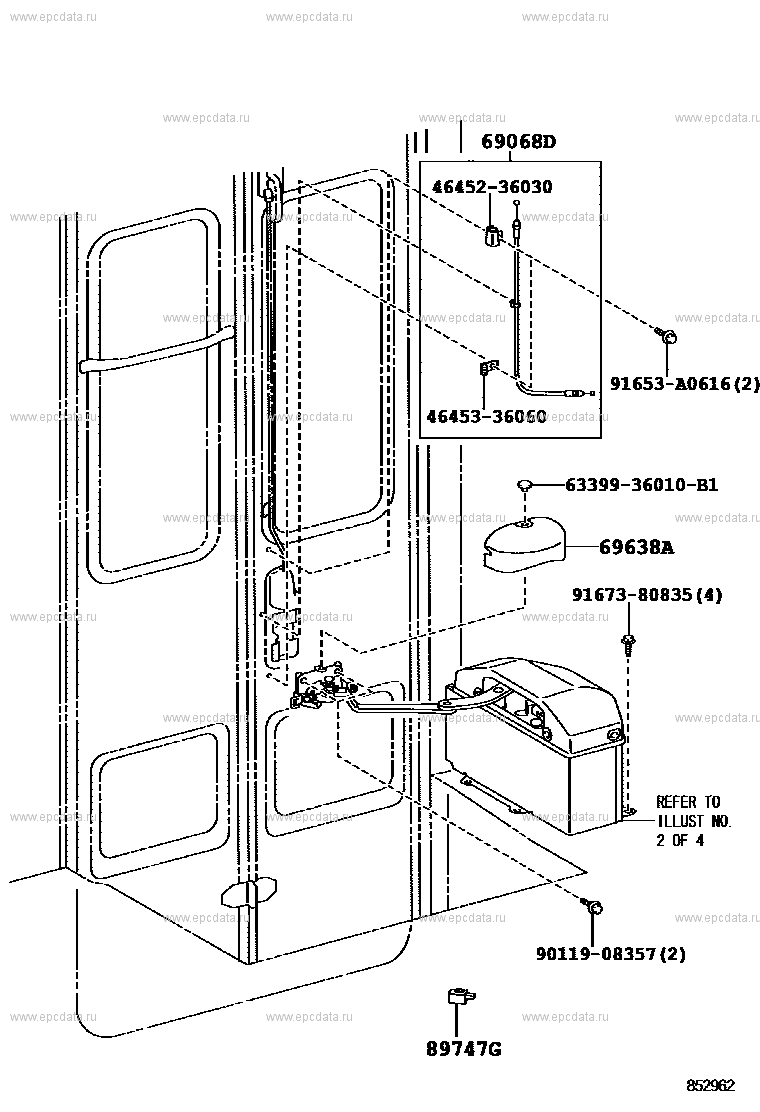

Click part number in the scheme or in the list: 69638A COVER, CENTER DOOR REMOTE CONTROL, NO.189747G BUZZER, WIRELESS DOOR LOCK 9011908357 ** Std Part 91653A0616 ** Std Part 9167380835 ** Std Part 6339936010B1 ** Std Part 4645336060 ** Std Part 4645236030 ** Std Part 69068D CABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2 |
Scheme 5
Scheme 6
|
(9301-1209) ｵﾘﾄﾞ ｼｷ ﾕﾆｯﾄ ILLUST NO. 2 OF 4 |
Click part number in the scheme or in the list: 9615001600 ** Std Part85623 LINK, AUTOMATIC DOOR REGULATOR 85627 STAY, AUTOMATIC DOOR REGULATOR 9046312005 ** Std Part 85980C RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) 85980D RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR) 85624 LEVER, AUTOMATIC DOOR REGULATOR, NO.1 85607 GEAR SUB-ASSY, IDLE 85622 MOTOR & GEAR, AUTOMATIC DOOR REGULATOR 85612 GEAR, AUTOMATIC DOOR WORM WHEEL 85637 REMOVER, AUTOMATIC DOOR 85625A RACK, AUTOMATIC DOOR 85069 HOUSING SUB-ASSY, AUTO DOOR 85621 MOTOR & LINK, AUTOMATIC DOOR REGULATOR 85620 MOTOR ASSY, AUTOMATIC DOOR REGULATOR |
Scheme 7
|
(1209- ) ｵﾘﾄﾞ ｼｷ ﾕﾆｯﾄ ILLUST NO. 2 OF 4 |
Click part number in the scheme or in the list: 8563536010 ** Std Part9024008053 ** Std Part 9046816028 ** Std Part 69608A LINK SUB-ASSY, CENTER DOOR REMOTE CONTROL 85621A SWITCH & BASE, AUTO DOOR 85625A RACK, AUTOMATIC DOOR 87116D SPRING, HOLDING 84290N SWITCH ASSY, LIMIT 85622 MOTOR & GEAR, AUTOMATIC DOOR REGULATOR 82023 WIRING SUB-ASSY, AUTO DOOR 85980C RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR) 89136A COVER, ECU AGGREGATION, NO.1 84934A COVER, DOOR CONTROL SWITCH 85628J LABEL, AUTOMATIC DOOR NO.6 85628A LABEL, AUTOMATIC DOOR, NO.2 85620 MOTOR ASSY, AUTOMATIC DOOR REGULATOR 85639 PLATE, AUTOMATIC DOOR 89343A BUZZER, CLEARANCE WARNING 85623 LINK, AUTOMATIC DOOR REGULATOR |
Scheme 8
|
(9301- ) ﾗﾍﾞﾙ ILLUST NO. 3 OF 4 |
Click part number in the scheme or in the list: 85628A LABEL, AUTOMATIC DOOR, NO.285628B LABEL, AUTOMATIC DOOR, NO.3 85628E LAVEL, AUTOMATIC DOOR, NO.5 85628D LAVEL, AUTOMATIC DOOR, NO.4 85628J LABEL, AUTOMATIC DOOR NO.6 |
Scheme 9
|
(1209- ) ｱｸｾﾙｲﾝﾀｰﾛｯｸ & ﾘﾚｰ & ｼﾂﾅｲﾌﾞｻﾞｰ ILLUST NO. 4 OF 4 |
Click part number in the scheme or in the list: 86650T BUZZER ASSY, NO.286659F BRACKET, BUZZER 85980G RELAY ASSY, DOOR CONTROL, NO.5(FOR AUTOMATIC DOOR) 85980B RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR) 85610A ACTUATOR ASSY, ACCEL INTER LOCK 9155180608 ** Std Part 9011906255 ** Std Part |
