ToyotaCoasterXZB40XZB40-ZRMNYEngine, fuel system and toolsInjection pump assembly

Injection pump assembly for Coaster XZB40




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 04226 04226-78024 01 08.2007 - 04.2008 VALVE KIT, SUCTION CONTROL N04C..XZB4#,5# 288.92 USD
02 04226 04226-78033 01 04.2008 - 08.2011 VALVE KIT, SUCTION CONTROL N04C..XZB4#,5# 209.10 USD
          ** Rev.Ref.No ** ( From- , To-0098 )
        To XZB40 -0053597
03 04226 04226-E0110 01 08.2011 - VALVE KIT, SUCTION CONTROL N04C..XZB4#,5#  123.66
to 246.70 USD
          ** Rev.Ref.No ** ( From-0099 , To- )
        From XZB40 -0053598

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(0408-0708)N04C

Click part number in the scheme or in the list:

22100 PUMP ASSY, INJECTION OR SUPPLY
23803K GASKET(FOR FUEL RETURN PIPE)
23701 PIPE SUB-ASSY, INJECTION, NO.1
23702 PIPE SUB-ASSY, INJECTION, NO.2
23703 PIPE SUB-ASSY, INJECTION, NO.3
23704 PIPE SUB-ASSY, INJECTION, NO.4
23741B CLAMP, INJECTION PIPE
9003105145 ** Std Part
9003175001 ** Std Part
23810A RAIL ASSY, COMMON
23849 SUPPORT, FUEL
9003105133 ** Std Part
23211A BRACKET(FOR INJECTION PIPE NO.3)
22100V RING, O(FOR INJECTION PUMP)
9003105126 ** Std Part
23811 PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23803H PIPE SUB-ASSY, FUEL RETURN
23290 DAMPER ASSY, FUEL SUCTION
23804F GASKET(FOR FUEL PIPE NO.4)
23083C GASKET(NOZZLE LEKAGE PIPE NO.3)
23083D BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23083A CLAMP, NOZZLE LEAKAGE
23083 PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23804D PIPE SUB-ASSY, FUEL, NO.4
23803J BOLT, UNION(FOR FUEL RETURN PIPE)
23741 CLAMP, INJECTION PIPE, NO.1
9003105141 ** Std Part
22812 RETAINER, INJECTION PUMP
22812A RING, O
9003105124 ** Std Part
9003105128 ** Std Part
91641H0820 ** Std Part
9003105143 ** Std Part
9003405022 ** Std Part
9003430040 ** Std Part
9034112010 ** Std Part
9009918005 ** Std Part
** 13-02
9009918010 ** Std Part
9009901502 ** Std Part
2380778020 ** Std Part
22100A HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100C CLAMP, FUEL HOSE, NO.2
22100S HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
22100U CLIP, HOSE FUEL(FOR INJECTION PUMP)
** 77-51
82702E BRACKET SUB-ASSY, WIRING HARNESS

Scheme 2

(0708-1108)N04C
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

23741B CLAMP, INJECTION PIPE
9003175001 ** Std Part
23811 PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23083C GASKET(NOZZLE LEKAGE PIPE NO.3)
23083D BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23083A CLAMP, NOZZLE LEAKAGE
23743 CLAMP, INJECTION PIPE, NO.3
22100V RING, O(FOR INJECTION PUMP)
9003105126 ** Std Part
23803K GASKET(FOR FUEL RETURN PIPE)
23803J BOLT, UNION(FOR FUEL RETURN PIPE)
23271H HOSE, FUEL, NO.1
23701 PIPE SUB-ASSY, INJECTION, NO.1
23702 PIPE SUB-ASSY, INJECTION, NO.2
23703 PIPE SUB-ASSY, INJECTION, NO.3
23704 PIPE SUB-ASSY, INJECTION, NO.4
23849 SUPPORT, FUEL
23742 CLAMP, INJECTION PIPE, NO.2
9003105123 ** Std Part
9003105124 ** Std Part
22100C CLAMP, FUEL HOSE, NO.2
22100U CLIP, HOSE FUEL(FOR INJECTION PUMP)
22100A HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
22100S HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
9003105145 ** Std Part
9003105148 ** Std Part
9613241000 ** Std Part
9003116055 ** Std Part
23810A RAIL ASSY, COMMON
23083 PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23803H PIPE SUB-ASSY, FUEL RETURN
23804D PIPE SUB-ASSY, FUEL, NO.4
23804F GASKET(FOR FUEL PIPE NO.4)
2380778020 ** Std Part
9003105133 ** Std Part
22812 RETAINER, INJECTION PUMP
22812A RING, O
9003105128 ** Std Part
23802E PIPE SUB-ASSY, FUEL
** 77-51
** 13-02
91641H0820 ** Std Part
82702E BRACKET SUB-ASSY, WIRING HARNESS

Scheme 3

(0708-1108)N04C
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

22100 PUMP ASSY, INJECTION OR SUPPLY
9009901502 ** Std Part
9009918005 ** Std Part
9009918010 ** Std Part
04226 VALVE KIT, SUCTION CONTROL

Scheme 4

(1108- )N04C
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

23801L PIPE SUB-ASSY, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23742A CLAMP, INJECTION PIPE, NO.3
23801N GASKET
23801M BOLT, UNION
23804D PIPE SUB-ASSY, FUEL, NO.4
23083C GASKET(NOZZLE LEKAGE PIPE NO.3)
23083D BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803H PIPE SUB-ASSY, FUEL RETURN
23811 PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811J BOLT, UNION
23811K GASKET
23803J BOLT, UNION(FOR FUEL RETURN PIPE)
23804F GASKET(FOR FUEL PIPE NO.4)
23271H HOSE, FUEL, NO.1
23271M HOSE, FUEL
23271N CLIP, HOSE
23271W CLIP(FOR FUEL HOSE NO.1)
23701 PIPE SUB-ASSY, INJECTION, NO.1
23741 CLAMP, INJECTION PIPE, NO.1
23702 PIPE SUB-ASSY, INJECTION, NO.2
23703 PIPE SUB-ASSY, INJECTION, NO.3
23704 PIPE SUB-ASSY, INJECTION, NO.4
23741B CLAMP, INJECTION PIPE
23849 SUPPORT, FUEL
** 84-01
** 13-02
9003105133 ** Std Part
23280M LIMITTER ASSY, FUEL PRESSURE
23849J SUPPORT, FUEL PIPE(FOR RAIL ASSY, COMMON)
23810A RAIL ASSY, COMMON
22812 RETAINER, INJECTION PUMP
22812A RING, O
9003105124 ** Std Part
9003105128 ** Std Part
SZ91016362 ** Std Part
9003175001 ** Std Part
SZ91024483 ** Std Part
22100V RING, O(FOR INJECTION PUMP)
9003105126 ** Std Part
22811 STAY, INJECTION PUMP, NO.1
9003105163 ** Std Part
9003105146 ** Std Part
9003105125 ** Std Part
9003209021 ** Std Part
SZ40114033 ** Std Part
9003109075 ** Std Part
9020214004 ** Std Part
23083 PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23083A CLAMP, NOZZLE LEAKAGE
22214B VALVE ASSY, FUEL ADDITION CUT
23849H SUPPORT, FUEL PIPE
23849G SUPPORT, FUEL PIPE
** 23-02
9003105143 ** Std Part
9003105141 ** Std Part
9003105123 ** Std Part
SJ13200835 ** Std Part
S228351610 ** Std Part
** 77-51
23742 CLAMP, INJECTION PIPE, NO.2
9020210011 ** Std Part

Scheme 5

(1108- )N04C
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

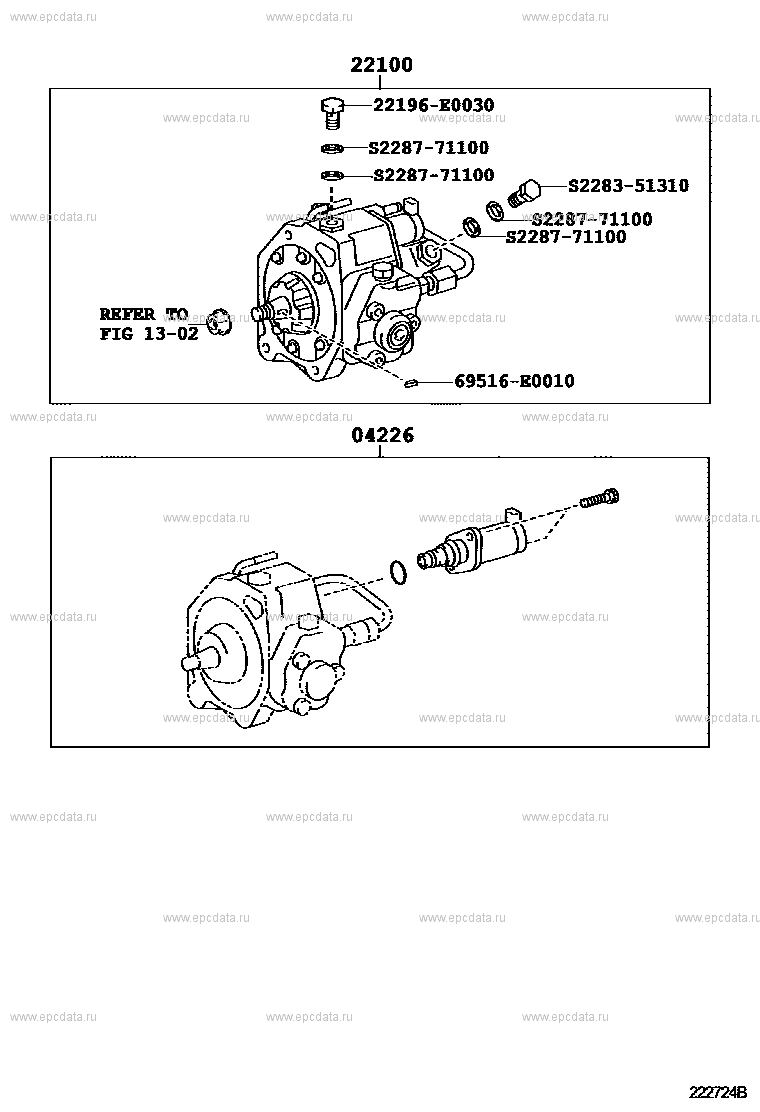

04226 VALVE KIT, SUCTION CONTROL
22100 PUMP ASSY, INJECTION OR SUPPLY
69516E0010 ** Std Part
** 13-02
22196E0030 ** Std Part
S228351310 ** Std Part
S228771100 ** Std Part
