ToyotaCoasterXZB40XZB40-ZRMNYTransmission and chassisRear floor panel & rear floor member

Rear floor panel & rear floor member for Coaster XZB40




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 51837 51837-36010 01 08.2004 - 08.2011 COVER, SIDE AUTO STEP, NO.3 XZB40..26S..(GX,LX);BZB40,50,XZB50,51..EX,GX,LX,SULNG  8.28
to 10.56 USD
  (SUBS) 51837-36011 01    8.44
to 10.56 USD
          ** Rev.Ref.No ** ( From-0053 , To-0098 )
        To XZB40 -0053597
02 51837 51837-36011 01 09.2011 - COVER, SIDE AUTO STEP, NO.3 BZB40,50,XZB40,50,51..EX,GX,LX  8.44
to 10.56 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9301- )
ILLUST NO. 1 OF 6

Click part number in the scheme or in the list:

9095006034 ** Std Part
9033348001 ** Std Part
9095001557 ** Std Part
9033325001 ** Std Part
58285C COVER, REAR FLOOR HOLE
9095001429 ** Std Part
9095001348 ** Std Part
9095001506 ** Std Part
9095001370 ** Std Part

Scheme 2

(0108- )
ILLUST NO. 2 OF 6

Click part number in the scheme or in the list:

9011906615 ** Std Part
76665 BRACE, REAR MUDGUARD
76625A MUDGUARD, REAR BODY, RH
58750 COVER ASSY, FUEL TANK INSPECTION HOLE
9018905016 ** Std Part
58320 COVER, REAR FLOOR SERVICE HOLE
58320A PACKING, REAR FLOOR SERVICE HOLE
9016250008 ** Std Part
9011906393 ** Std Part
58678A PLATE, REAR FLOOR MAT DRIP
58699 PACKING, REAR FLOOR MAT DRIP
58398E COVER, FLOOR UNDER, NO.1
58371C PANEL, BODY LOWER BACK, UPPER
57108C CROSSMEMBER SUB-ASSY, FLOOR, NO.8
9011906699 ** Std Part
76629D MUDGUARD, FRONT SIDE MEMBER
9046708011 ** Std Part
58306J PANEL SUB-ASSY, CENTER DOOR STEP, LOWER
77277U PROTECTOR, FUEL TANK FILLER PIPE
76626A MUDGUARD, REAR BODY, LH
9011906336 ** Std Part
58298 COVER, CENTER FLOOR HOLE, NO.2
9353054012 ** Std Part
9046708188 ** Std Part
51835 COVER, SIDE AUTO STEP, NO.1
51836 COVER, SIDE AUTO STEP, NO.2
51837 COVER, SIDE AUTO STEP, NO.3
51773D COVER, STEP PLATE, RH
51079B BRACKET SUB-ASSY, SIDE STEP
9155380632 ** Std Part
57789 REINFORCEMENT, REAR FLOOR MOUNTING
51831 STEP, SIDE AUTO
9011906311 ** Std Part
51834 PROTECTOR, SIDE AUTO STEP
68759B SPACER, CENTER DOOR HINGE
51804 STOPPER SUB-ASSY, SIDE AUTO STEP
51840 HANDLE ASSY, SIDE AUTO STEP
85760A MOTOR ASSY, SIDE AUTO STEP
51778D COVER, SIDE DOOR STEP PLATE, NO.1
85767A PROTECTOR, SIDE AUTO STEP MOTOR
9052305008 ** Std Part
9616001000 ** Std Part
9011908538 ** Std Part
8271132300 ** Std Part
6974936010 ** Std Part
58575F PAD, REAR FLOOR
9025203016 ** Std Part
6918136010 ** Std Part
69283C STOPPER, DOOR INSIDE HANDLE
** 86-02

Scheme 3

(9301- )
ILLUST NO. 3 OF 6

Click part number in the scheme or in the list:

9016150002 ** Std Part
9016140029 ** Std Part

Scheme 4

(9301- )
ILLUST NO. 5 OF 6

Click part number in the scheme or in the list:

58305E PANEL SUB-ASSY, CENTER DOOR STEP
9011908A79 ** Std Part
9165160616 ** Std Part
** 67-59

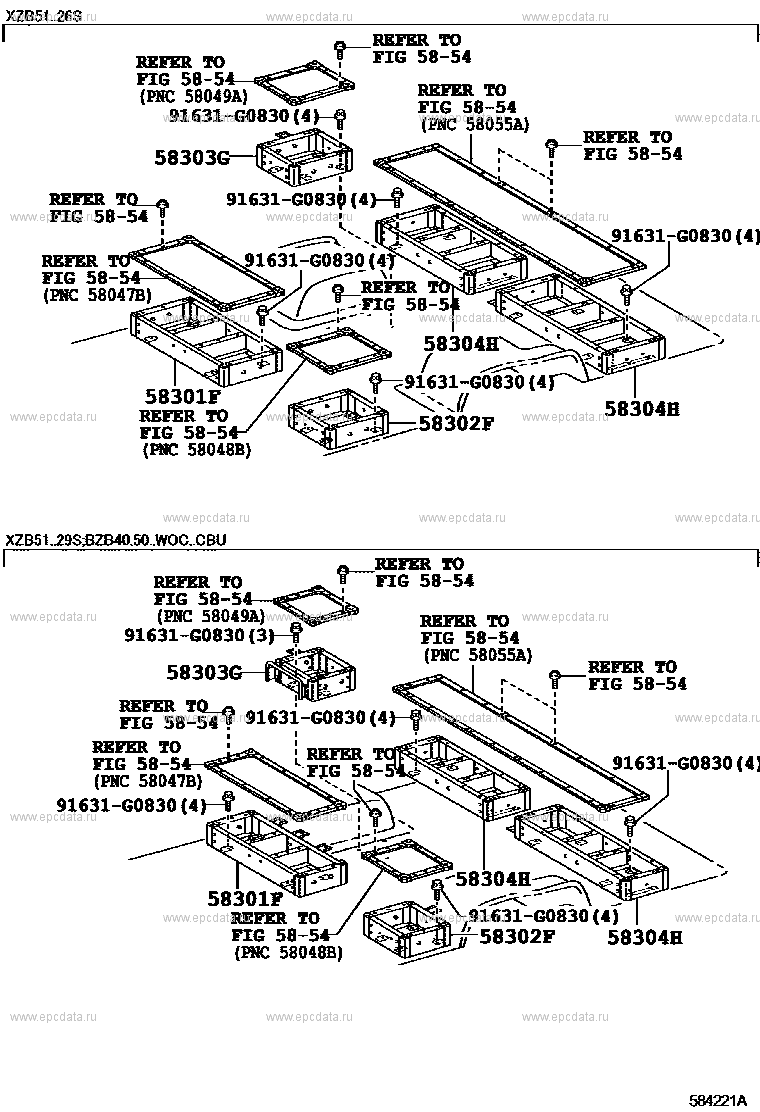

Scheme 5

(1108- )BZB40,50,XZB40,50,51..WOC..CBU
ﾌｯﾄﾚｽﾄ ILLUST NO. 6 OF 6

Click part number in the scheme or in the list:

** 58-54
91631G0830 ** Std Part
58301F FOOTREST SUB-ASSY, NO.1
58303G FOOTREST SUB-ASSY, NO.3
58302F FOOTREST SUB-ASSY, NO.2
58304H FOOTREST SUB-ASSY, NO.4
