Fuel filter for Coaster XZB40

Click on the part subgroup below to get genuine part numbers.

Scheme 1

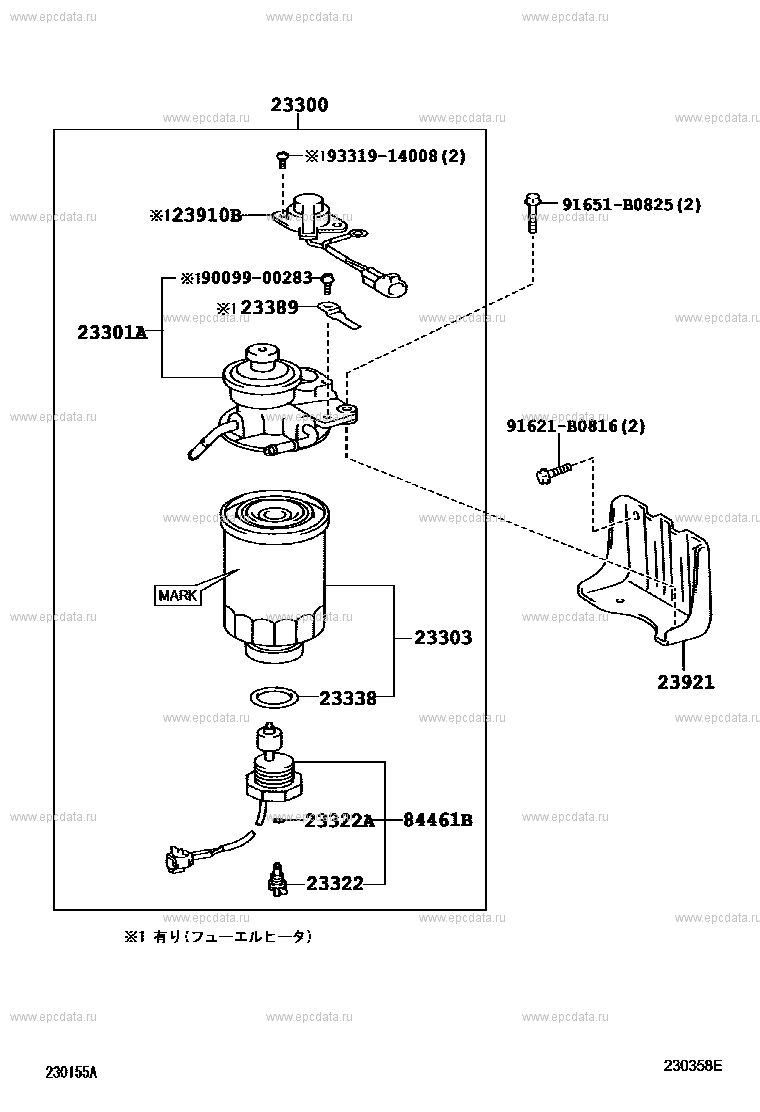

(0408- )N04C ﾌﾚｰﾑ ｻｲﾄﾞ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 23910B HEATER ASSY, FUEL 23322 PLUG, DRAIN(FOR FUEL FILTER) 23322A RING, O(FOR DRAIN PLUG) 84461B SWITCH, LEVEL WARNING 23921 SUPPORT, FUEL FILTER 91621B0816 ** Std Part 91651B0825 ** Std Part 23300 FILTER ASSY, FUEL 9331914008 ** Std Part 9009900283 ** Std Part 23389 CLAMP, FUEL FILTER 23301A CAP ASSY, FUEL FILTER 23338 GASKET(FOR WARNING SWITCH) 23303 ELEMENT SUB-ASSY, FUEL FILTER

Scheme 2

(1108- )N04C ｴﾝｼﾞﾝ ｻｲﾄﾞ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 23264D BRACKET, FUEL FILTER 9003105143 ** Std Part 9003105146 ** Std Part 23300D FILTER ASSY, FUEL(FOR DIESEL) S233161040 ** Std Part 23104A VALVE SUB-ASSY 23310 BODY, FUEL FILTER, UPPER 23304A ELEMENT SET, FUEL FILTER

Coaster XZB40
