Accelerator link for Coaster RB13

Click on the part subgroup below to get genuine part numbers.

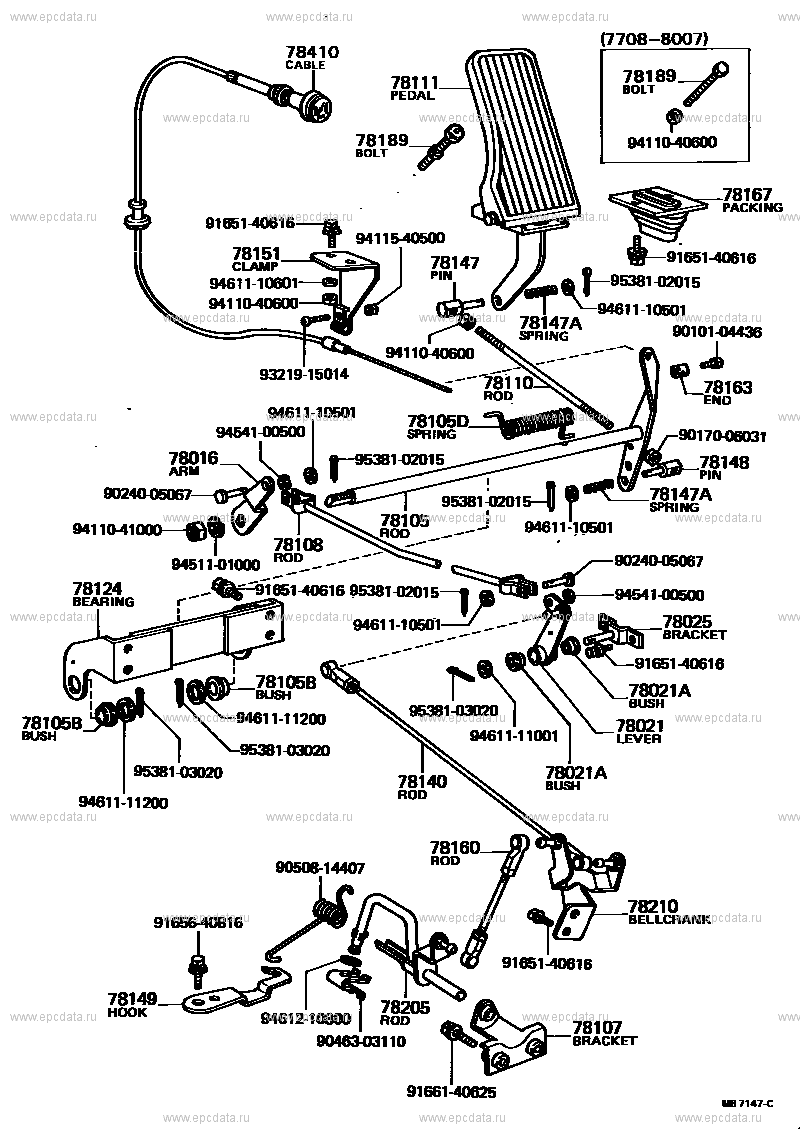

(7708- )RB1# Open full size scheme

Click part number in the scheme or in the list: 78410 CABLE ASSY, THROTTLE CONTROL 78189 BOLT, ACCELERATOR PEDAL STOPPER 78111 PEDAL, ACCELERATOR 9411040600 ** Std Part 78167 PACKING, ACCELERATOR PEDAL HINGE 9165140616 ** Std Part 9411540500 ** Std Part 78151 CLAMP, THROTTLE WIRE 78147 PIN, CONNECTING ROD, RH 9538102015 ** Std Part 9461110601 ** Std Part 9461110501 ** Std Part 78147A SPRING, ACCELERATOR ROD PIN 9010104436 ** Std Part 9321915014 ** Std Part 78110 ROD ASSY, ACCELERATOR PEDAL 78163 END, FLEXIBLE WIRE 78105D SPRING (FOR ACCELERATOR TORQUE ROD) 9454100500 ** Std Part 9017006031 ** Std Part 78016 ARM SUB-ASSY, ACCELERATOR LINK ROD 78148 PIN, CONNECTING ROD, LH 9024005067 ** Std Part 78105 ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3 9411041000 ** Std Part 78108 ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.4 9451101000 ** Std Part 78124 BEARING, ACCELERATOR LINK, NO.1 78025 BRACKET SUB-ASSY, ACCELERATOR CONNECTING ROD ARM 78105B BUSH (FOR ACCELERATOR TORQUE ROD) 78021A BUSH, ACCELERATOR CONTROL LEVER 9538103020 ** Std Part 9461111200 ** Std Part 78021 LEVER SUB-ASSY, ACCELERATOR CONTROL, NO.1 9461111001 ** Std Part 78140 ROD ASSY, ACCELERATOR, NO.3 78160 ROD ASSY, ACCELERATOR, NO.4 9050814407 ** Std Part 78210 BELLCRANK ASSY, ACCELERATOR 9165640816 ** Std Part 78149 HOOK, ACCELERATOR TORQUE ROD SPRING 78205 ROD SUB-ASSY, ACCELERATOR TORQUE 9461210800 ** Std Part 78107 BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD 9046303110 ** Std Part 9166140625 ** Std Part

Coaster RB13
