Carburetor for Coaster RB11
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(7708-7808)20R ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 21235 PIPE OR HOSE, CONNECTING9041304005 ** Std Part 9321915025 ** Std Part 9451100500 ** Std Part 21234 PIPE OR HOSE 21192A HOSE, NO.1(FOR BREAKER) 21112 HORN, AIR 21791 RING, SNAP, NO.1(FOR CARBURETOR LINK) 21414 SHAFT, CHOKE 9461110300 ** Std Part 21192 BREAKER 21699 BOOT(FOR PUMP PLUNGER) 21015 HOUSING SUB-ASSY, COIL 21121A INSULATOR(FOR THERMOSTAT CASE) 21627 GASKET, COIL HOUSING 2182125010 ** Std Part 21621 GASKET, UNION NIPPLE 9311913012 ** Std Part 2184426350 ** Std Part 21751 UNION, NIPPLE 21811 BOLT, UNION NIPPLE 21618 GASKET, NEEDLE VALVE SEAT 21301 VALVE SUB-ASSY, NEEDLE 2157627010 ** Std Part 2187321010 ** Std Part 21826 SCREW, PUMP ARM SET 21735 SPRING, PUMP ARM 21209 FLOAT SUB-ASSY 21763 PIN, FLOAT LEVER 2182131140 ** Std Part 9461110400 ** Std Part |

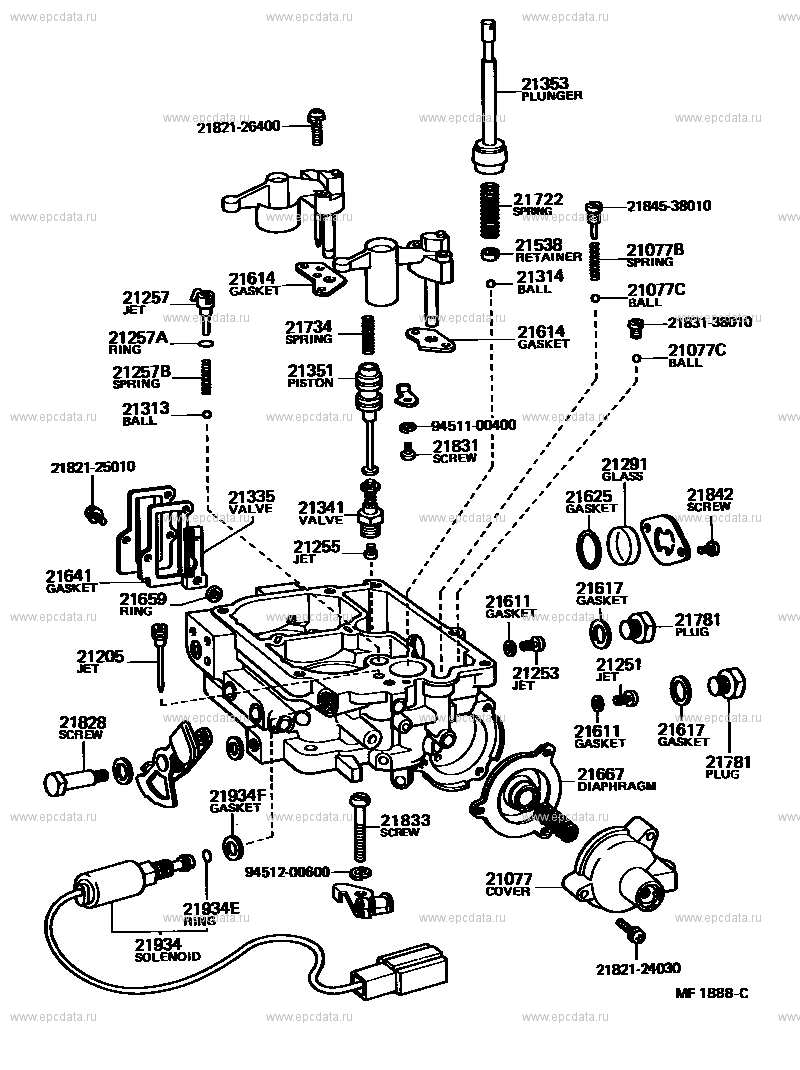

Scheme 2
Scheme 3
|
(7708-7808)20R ILLUST NO. 3 OF 3 |
Click part number in the scheme or in the list: 21622 GASKET, AIR HORN9451100500 ** Std Part 2188544010 ** Std Part 9321915018 ** Std Part 21647 GASKET, DIAPHRAGM HOUSING CAP 21698 DIAPHRAGM 21645 GASKET, DIAPHRAGM, CAP 21756 SPRING, BACK(FOR THROTTLE SHAFT) 9451100400 ** Std Part 9321914016 ** Std Part 21165 INSULATOR 21672 CAP 21852 NUT, THROTTLE LEVER SET 9461110300 ** Std Part 21881 WASHER, LOCK(FOR THROTTLE SHAFT) 2179440070 ** Std Part 9411040800 ** Std Part 21271 SCREW, IDLE ADJUSTING 21723 SPRING, IDLE ADJUSTING 9451100800 ** Std Part 21724 SPRING, THROTTLE ADJUSTING 21272 SCREW, 1ST IDLE ADJUSTING 21726 SPRING, 1ST IDLE ADJUSTING 21273 SCREW, THROTTLE ADJUSTING 9451200600 ** Std Part 21834 SCREW, SET, NO.2(FOR CARBURETOR BODY SET) |
Scheme 4
