ToyotaCoasterHZB40HZB40-ZRMNSEngine, fuel system and toolsInjection pump body

Injection pump body for Coaster HZB40




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 22130 22130-17010 01 01.1993 - 07.1999 CAMPLATE SUB-ASSY, FACE 1HZ..HZB4#,5# 135.78 USD
          ** Rev.Ref.No ** ( From- , To-0032 )
        To HZB40 -0003978
02 22130 22130-1C050 01 07.1999 - 08.2004 CAMPLATE SUB-ASSY, FACE 1HZ..HZB4#,5# 48.27 USD

More than 1 spare part found. Please define it more accurately before ordering.





Scheme 1 Scheme 2 Scheme 3 Scheme 4 Scheme 5

Click on the part subgroup below to get genuine part numbers.

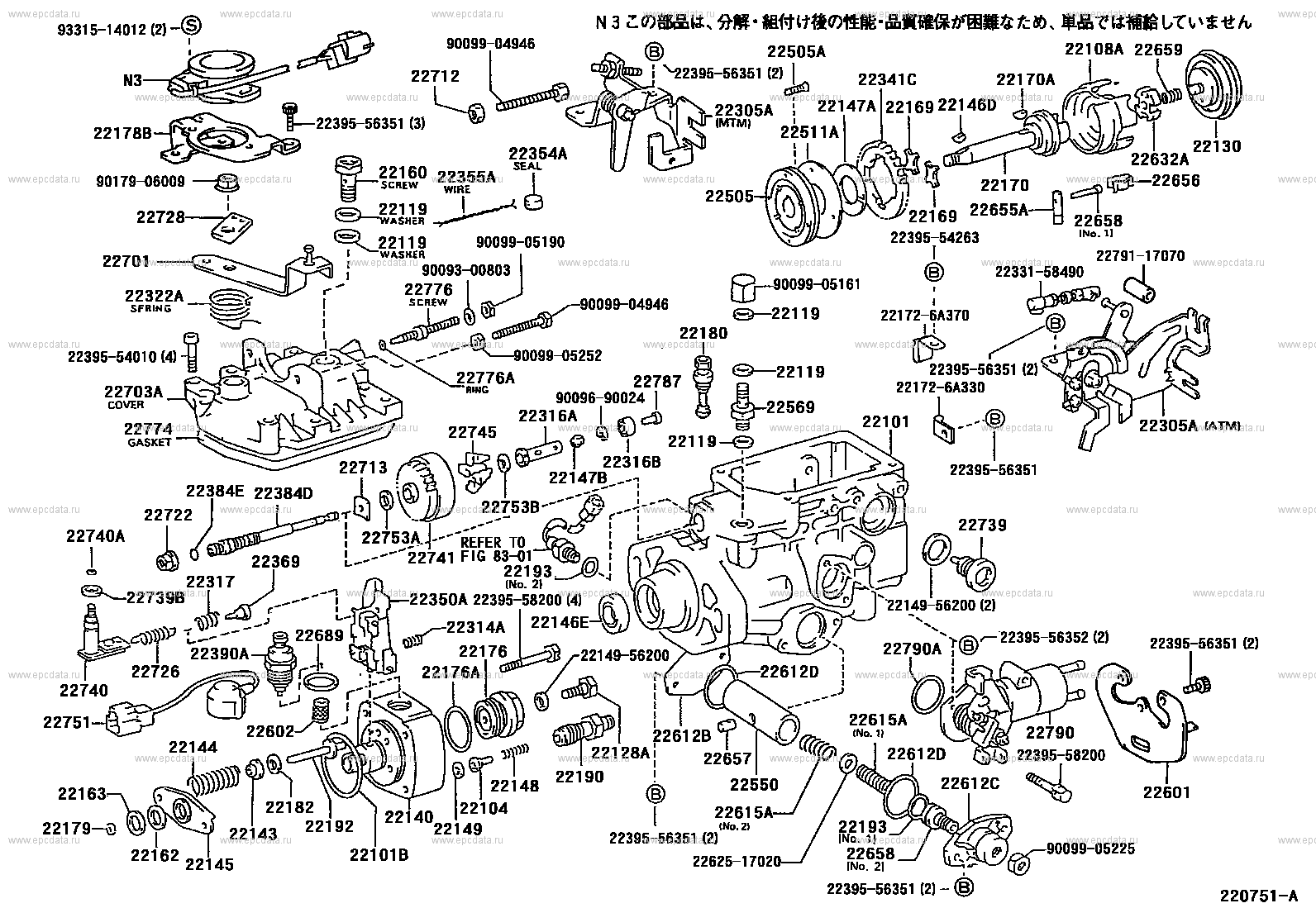

Scheme 1

(9301-9505)1HZ

Click part number in the scheme or in the list:

9331514012 ** Std Part
9009904946 ** Std Part
22108A RING SUB-ASSY, ROLLER
22659 SPRING, COUPLING
22505A SCREW(FOR FUEL FEED PUMP)
2239556351 ** Std Part
22712 NUT, ROCK
22341C GEAR, GOVERNOR DRIVE
22170A KEY(FOR DRIVE SHAFT)
22146D KEY(FOR DRIVE GEAR)
22147A WASHER, DRIVE SHAFT
22169 JOINT, RUBBER
22305A IDLE-UP SUB-ASSY
22511A COVER, FEED PUMP
22178B BRACKET(FOR INJECTION PUMP ASSY)
22130 CAMPLATE SUB-ASSY, FACE
22354A SEAL, ROD
22632A COUPLING, INJECTION PUMP
22160 SCREW SUB-ASSY, OVERFLOW
22355A WIRE, GOVERNOR HOUSING SEAL
22656 CLIP, TIMER
9017906009 ** Std Part
22170 SHAFT SUB-ASSY, DRIVE
22505 PUMP SUB-ASSY, FUEL FEED
22119 WASHER, AIR BLEEDER NIPPLE
22655A PIN, TIMER SLIDE
22728 GUIDE, RETURN SPRING
22658 STOPPER, TIMER
2239554263 ** Std Part
9009905190 ** Std Part
2279117070 ** Std Part
22701 LEVER SUB-ASSY, ADJUSTING
9009300803 ** Std Part
2233158490 ** Std Part
9009905161 ** Std Part
22776 SCREW, SMOKE SET ADJUSTING
22322A SPRING, RETURN
221726A370 ** Std Part
22180 VALVE SUB-ASSY, REGULATOR
9009905252 ** Std Part
2239554010 ** Std Part
22776A RING, O(FOR SMOKE SET SCREW)
22787 PLUG, GOVERNOR SLEEVE
221726A330 ** Std Part
22703A COVER SUB-ASSY, GOVERNOR
9009690024 ** Std Part
22569 SCREW, OVERFLOW
22316A SLEEVE, GOVERNOR
22101 HOUSING SUB-ASSY, INJECTION PUMP
22774 GASKET, GOVERNOR COVER
22745 FLYWEIGHT, DISTRIBUTIVE PUMP
22316B BEARING, BALL(FOR GOVERNOR SLEEVE)
22713 WASHER, GOVERNOR GEAR ADJUSTING
22147B RING, GOVERNOR SLEEVE
22384E RING, O(FOR GOVERNOR MAIN SHAFT)
22384D SHAFT, GOVERNOR
22753B WASHER, FLYWEIGHT, NO.2
22722 NUT, GOVERNOR SHAFT ROCK
22739 BOLT, GOVERNOR LINK SUPPORT
22740A RING, O(FOR GOVERNOR ADJUSTING SHAFT)
22753A WASHER, FLYWEIGHT, NO.1
** 83-01
22741 HOLDER SUB-ASSY, FLYWEIGHT
22369 SEAT, GOVERNOR SPRING
22193 RING, O(FOR LEVER CONNECTING PIN)
22317 SPRING, GOVERNOR DOMPER
22739B WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22350A GOVERNOR ASSY, TORQUE CONTROL
2239558200 ** Std Part
2214956200 ** Std Part
22146E SEAL(FOR DRIVE SHAFT)
22314A SPRING, LEVER SUPPORT
22689 WASHER(FOR SWIVEL NIPPLE)
2239556352 ** Std Part
22790A RING, O(FOR TIMER COVER)
22176 PLUG, DISTRIBUTIVE HEAD
22390A SOLENOID ASSY, FUEL CUT
22726 SPRING, SPEED CONTROL
22612D RING, O(FOR TIMER COVER)
22176A RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22740 SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22615A SPRING, TIMER OUTER
22751 WIRE SUB-ASSY, FUEL CUT SOLENOID
22602 FILTER SUB-ASSY, FUEL INJECTION PUMP
22790 COVER SUB-ASSY, TIMER
22612B COVER, TIMER
22144 SPRING, PUMP PLUNGER
22128A BOLT, DISTRIBUTIVE HEAD
22657 CLIP, TIMER
22190 VALVE SUB-ASSY, SNUBBER
22612C COVER, TIMER
22550 PISTON ASSY, TIMER
22148 SPRING, DELIVERY VALVE
22601 BRACKET SUB-ASSY, IDLE UP
22163 PLATE, PLUNGER LOWER
22182 PLATE, TAPPET ADJUSTING SHIM
22104 VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22140 HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22192 GUIDE SUB-ASSY, PLUNGER SPRING
22179 SHIM, PLUNGER ADJUSTING
22149 GASKET, DELIVERY VALVE
22143 SEAT, SPRING UPPER
9009905225 ** Std Part
22101B RING, O(FOR INJECTION PUMP HOUSING)
22162 PLATE, PLUNGER UPPER
2262517020 ** Std Part
22145 SEAT, SPRING, LOWER

Scheme 2

(9505-9907)1HZ
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

9331514012 ** Std Part
22355A WIRE, GOVERNOR HOUSING SEAL
22632A COUPLING, INJECTION PUMP
22505A SCREW(FOR FUEL FEED PUMP)
22108A RING SUB-ASSY, ROLLER
22170A KEY(FOR DRIVE SHAFT)
22169 JOINT, RUBBER
22130 CAMPLATE SUB-ASSY, FACE
22354A SEAL, ROD
9009904954 ** Std Part
22146D KEY(FOR DRIVE GEAR)
22511A COVER, FEED PUMP
22712 NUT, ROCK
22178B BRACKET(FOR INJECTION PUMP ASSY)
2239556351 ** Std Part
22659 SPRING, COUPLING
22160 SCREW SUB-ASSY, OVERFLOW
22656 CLIP, TIMER
22170 SHAFT SUB-ASSY, DRIVE
22658 STOPPER, TIMER
22119 WASHER, AIR BLEEDER NIPPLE
9017906009 ** Std Part
22655A PIN, TIMER SLIDE
22341C GEAR, GOVERNOR DRIVE
22147A WASHER, DRIVE SHAFT
22305A IDLE-UP SUB-ASSY
22728 GUIDE, RETURN SPRING
2239554263 ** Std Part
22505 PUMP SUB-ASSY, FUEL FEED
22701 LEVER SUB-ASSY, ADJUSTING
9009210608 ** Std Part
22751 WIRE SUB-ASSY, FUEL CUT SOLENOID
9009905190 ** Std Part
221726A370 ** Std Part
22777 CAP, RUBBER(FOR BELLOWS)
22369 SEAT, GOVERNOR SPRING
22322A SPRING, RETURN
22776 SCREW, SMOKE SET ADJUSTING
22740A RING, O(FOR GOVERNOR ADJUSTING SHAFT)
22317 SPRING, GOVERNOR DOMPER
2239558200 ** Std Part
22739B WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22390A SOLENOID ASSY, FUEL CUT
9009300802 ** Std Part
221726A330 ** Std Part
22689 WASHER(FOR SWIVEL NIPPLE)
2239554010 ** Std Part
2214956200 ** Std Part
22776A RING, O(FOR SMOKE SET SCREW)
22350A GOVERNOR ASSY, TORQUE CONTROL
22602 FILTER SUB-ASSY, FUEL INJECTION PUMP
22176 PLUG, DISTRIBUTIVE HEAD
22680D BELLOWS ASSY, PNEUMATIC
22176A RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22726 SPRING, SPEED CONTROL
22314A SPRING, LEVER SUPPORT
9009904335 ** Std Part
22128A BOLT, DISTRIBUTIVE HEAD
22774 GASKET, GOVERNOR COVER
** 83-01
9009905252 ** Std Part
22182 PLATE, TAPPET ADJUSTING SHIM
22193 RING, O(FOR LEVER CONNECTING PIN)
22144 SPRING, PUMP PLUNGER
22180 VALVE SUB-ASSY, REGULATOR
22163 PLATE, PLUNGER LOWER
9009905161 ** Std Part
22190 VALVE SUB-ASSY, SNUBBER
22179 SHIM, PLUNGER ADJUSTING
22612B COVER, TIMER
22740 SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22192 GUIDE SUB-ASSY, PLUNGER SPRING
22104 VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22612D RING, O(FOR TIMER COVER)
22143 SEAT, SPRING UPPER
22101B RING, O(FOR INJECTION PUMP HOUSING)
22148 SPRING, DELIVERY VALVE
22149 GASKET, DELIVERY VALVE
22162 PLATE, PLUNGER UPPER
22140 HEAD SUB-ASSY, DISTRIBUTIVE PUMP
2233158490 ** Std Part
22145 SEAT, SPRING, LOWER
2239556352 ** Std Part
22739 BOLT, GOVERNOR LINK SUPPORT
22146E SEAL(FOR DRIVE SHAFT)
22790 COVER SUB-ASSY, TIMER
22790A RING, O(FOR TIMER COVER)
22101 HOUSING SUB-ASSY, INJECTION PUMP
22745 FLYWEIGHT, DISTRIBUTIVE PUMP
22316A SLEEVE, GOVERNOR
2262517020 ** Std Part
22753A WASHER, FLYWEIGHT, NO.1
22657 CLIP, TIMER
22787 PLUG, GOVERNOR SLEEVE
22550 PISTON ASSY, TIMER
22147B RING, GOVERNOR SLEEVE
22316B BEARING, BALL(FOR GOVERNOR SLEEVE)
22722 NUT, GOVERNOR SHAFT ROCK
22615A SPRING, TIMER OUTER
22753B WASHER, FLYWEIGHT, NO.2
9009690024 ** Std Part
22713 WASHER, GOVERNOR GEAR ADJUSTING
22741 HOLDER SUB-ASSY, FLYWEIGHT
22384D SHAFT, GOVERNOR
9009905225 ** Std Part
22601 BRACKET SUB-ASSY, IDLE UP
22384E RING, O(FOR GOVERNOR MAIN SHAFT)
22612C COVER, TIMER

Scheme 3

(9505-9907)1HZ
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

22680D BELLOWS ASSY, PNEUMATIC
2239554263 ** Std Part
22686A COVER, PNEUMATIC BELLOWS
22777 CAP, RUBBER(FOR BELLOWS)
22681 BELLOWS SUB-ASSY, PNEUMATIC
22621A WASHER, TIMER ADJUSTING
22301 ROD SUB-ASSY, PUSH
22327A SPRING(FOR BELLOWS)
9009905156 ** Std Part
9009901473 ** Std Part
22348B BUSHING, GUIDE(FOR LEVER CONNECTING PIN)
2272254120 ** Std Part
22348A BUSHING, GUIDE
22526A PIN, LEVER SUPPORT
22193 RING, O(FOR LEVER CONNECTING PIN)
22686B RING, O(FOR BELLOWS COVER)
22328A PIN, LEVER CONNECTING
22378B WASHER, DRAIN SCREW
22308B LEVER SUB-ASSY, CONTROL
22703A COVER SUB-ASSY, GOVERNOR
22739A BOLT, GOVERNOR LINK SUPPORT NO.2
22129 PLUG, SCREW
2214954800 ** Std Part

Scheme 4

(9907-0408)1HZ
ILLUST NO. 1 OF 2

Click part number in the scheme or in the list:

9331514012 ** Std Part
22632A COUPLING, INJECTION PUMP
22108A RING SUB-ASSY, ROLLER
22505A SCREW(FOR FUEL FEED PUMP)
22170A KEY(FOR DRIVE SHAFT)
22130 CAMPLATE SUB-ASSY, FACE
22169 JOINT, RUBBER
9009904954 ** Std Part
22146D KEY(FOR DRIVE GEAR)
22511A COVER, FEED PUMP
22712 NUT, ROCK
22178B BRACKET(FOR INJECTION PUMP ASSY)
2239556351 ** Std Part
22659 SPRING, COUPLING
22656 CLIP, TIMER
22160 SCREW SUB-ASSY, OVERFLOW
22658 STOPPER, TIMER
22170 SHAFT SUB-ASSY, DRIVE
22569 SCREW, OVERFLOW
22119 WASHER, AIR BLEEDER NIPPLE
22655A PIN, TIMER SLIDE
9017906156 ** Std Part
22341C GEAR, GOVERNOR DRIVE
22147A WASHER, DRIVE SHAFT
22305A IDLE-UP SUB-ASSY
2239554263 ** Std Part
22505 PUMP SUB-ASSY, FUEL FEED
9020112109 ** Std Part
22701 LEVER SUB-ASSY, ADJUSTING
22751 WIRE SUB-ASSY, FUEL CUT SOLENOID
221721C250 ** Std Part
22777 CAP, RUBBER(FOR BELLOWS)
9009905252 ** Std Part
22776 SCREW, SMOKE SET ADJUSTING
22322A SPRING, RETURN
2239558200 ** Std Part
22390A SOLENOID ASSY, FUEL CUT
22740A RING, O(FOR GOVERNOR ADJUSTING SHAFT)
221726A330 ** Std Part
22739B WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2)
22689 WASHER(FOR SWIVEL NIPPLE)
2239554010 ** Std Part
223785C430 ** Std Part
2214956200 ** Std Part
22740 SHAFT SUB-ASSY, GOVERNOR ADJUSTING
22350A GOVERNOR ASSY, TORQUE CONTROL
22776A RING, O(FOR SMOKE SET SCREW)
22602 FILTER SUB-ASSY, FUEL INJECTION PUMP
22176 PLUG, DISTRIBUTIVE HEAD
** 83-01
22176A RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22314A SPRING, LEVER SUPPORT
22128A BOLT, DISTRIBUTIVE HEAD
9009904335 ** Std Part
22774 GASKET, GOVERNOR COVER
22182 PLATE, TAPPET ADJUSTING SHIM
22193 RING, O(FOR LEVER CONNECTING PIN)
22144 SPRING, PUMP PLUNGER
22163 PLATE, PLUNGER LOWER
22180 VALVE SUB-ASSY, REGULATOR
22190 VALVE SUB-ASSY, SNUBBER
22179 SHIM, PLUNGER ADJUSTING
9009905161 ** Std Part
22612B COVER, TIMER
22192 GUIDE SUB-ASSY, PLUNGER SPRING
22104 VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22143 SEAT, SPRING UPPER
22148 SPRING, DELIVERY VALVE
22612D RING, O(FOR TIMER COVER)
22101B RING, O(FOR INJECTION PUMP HOUSING)
22149 GASKET, DELIVERY VALVE
22162 PLATE, PLUNGER UPPER
22140 HEAD SUB-ASSY, DISTRIBUTIVE PUMP
22145 SEAT, SPRING, LOWER
2233158490 ** Std Part
2214954771 ** Std Part
2239556352 ** Std Part
22739 BOLT, GOVERNOR LINK SUPPORT
22193F RING, O(FOR FUEL INJECTION PUMP FILTER)
22420C VALVE SUB-ASSY, TIMING CONTROL
22146E SEAL(FOR DRIVE SHAFT)
22790 COVER SUB-ASSY, TIMER
22602A FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2
22790A RING, O(FOR TIMER COVER)
22101 HOUSING SUB-ASSY, INJECTION PUMP
22316A SLEEVE, GOVERNOR
22745 FLYWEIGHT, DISTRIBUTIVE PUMP
2262517540 ** Std Part
22753A WASHER, FLYWEIGHT, NO.1
22657 CLIP, TIMER
22787 PLUG, GOVERNOR SLEEVE
22550 PISTON ASSY, TIMER
22147B RING, GOVERNOR SLEEVE
22316B BEARING, BALL(FOR GOVERNOR SLEEVE)
22615A SPRING, TIMER OUTER
22722 NUT, GOVERNOR SHAFT ROCK
9009690024 ** Std Part
22753B WASHER, FLYWEIGHT, NO.2
22713 WASHER, GOVERNOR GEAR ADJUSTING
9009905225 ** Std Part
22741 HOLDER SUB-ASSY, FLYWEIGHT
22384D SHAFT, GOVERNOR
22601 BRACKET SUB-ASSY, IDLE UP
22612C COVER, TIMER
22384E RING, O(FOR GOVERNOR MAIN SHAFT)

Scheme 5

(9907-0408)1HZ
ILLUST NO. 2 OF 2

Click part number in the scheme or in the list:

22540 COMPENSATOR SUB-ASSY, BOOST
9009905181 ** Std Part
2239554263 ** Std Part
9009300802 ** Std Part
22703B COVER, GOVERNOR
2219354561 ** Std Part
22658A STOPPER, TIMER SLIDE
9009220608 ** Std Part
2254917140 ** Std Part
22542 DIAPHRAGM(FOR BOOST COMPENSATOR)
22143A SEAT, SPRING UPPER, NO.2
22321B ROD, PUSH(FOR ALTITUDE COMPENSATING TIMER ADVANCER)
22547 SHIM, BOOST COMPENSATOR
22546 SPRING, BOOST COMPENSATOR
22348A BUSHING, GUIDE
9009901473 ** Std Part
22348B BUSHING, GUIDE(FOR LEVER CONNECTING PIN)
22526A PIN, LEVER SUPPORT
2272254120 ** Std Part
9009905156 ** Std Part
22193 RING, O(FOR LEVER CONNECTING PIN)
22656 CLIP, TIMER
22328A PIN, LEVER CONNECTING
22308B LEVER SUB-ASSY, CONTROL
22739A BOLT, GOVERNOR LINK SUPPORT NO.2
22378B WASHER, DRAIN SCREW
22129 PLUG, SCREW
22327A SPRING(FOR BELLOWS)
22703A COVER SUB-ASSY, GOVERNOR
2214954800 ** Std Part

Toyota Coaster genuine parts
