Separator & separator curtain for Coaster BB46V

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9301- )BB46,HZB46,56,XZB46,56 ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 66318A BAND, ROPE HOOK 66301D HOOK SUB-ASSY, ROPE 9155380614 ** Std Part

Scheme 2

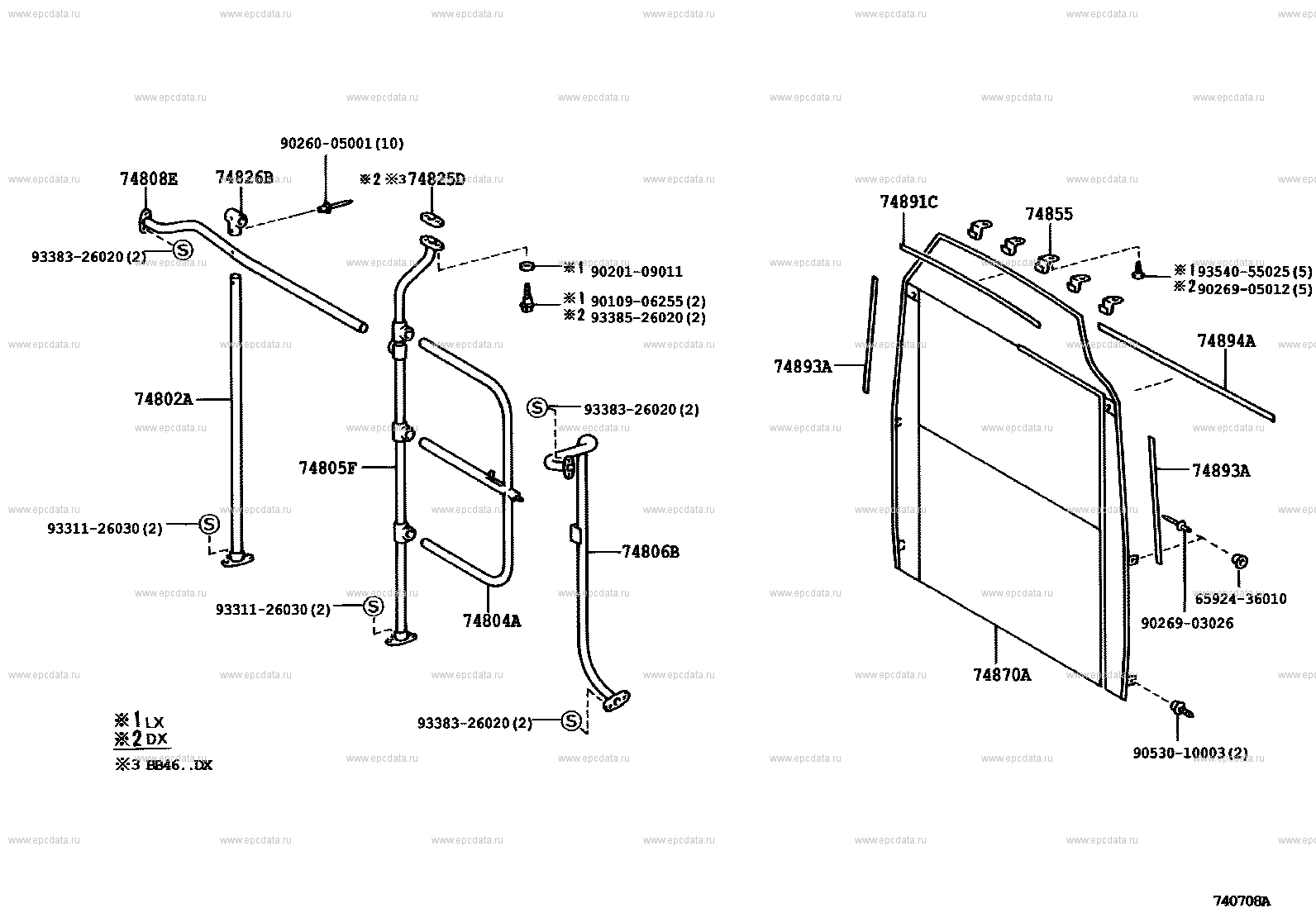

(9301- )BB46,HZB46,56,XZB46,56 ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 74826B BRACKET, SEPARATOR BAR, NO.6 74855 PLATE, SEPARATOR CURTAIN SET 74870A CURTAIN ASSY, SEPARATOR 74891C WIRE, SEPARATOR CUTAIN, NO.1 74893A WIRE, SEPARATOR CURTAIN, NO.3 74894A WIRE, SEPARATOR CURTAIN 6592436010 ** Std Part 9026903026 ** Std Part 9053010003 ** Std Part 9026905012 ** Std Part 9354055025 ** Std Part 74804A BAR SUB-ASSY, SEPARATOR, D 74805F BAR SUB-ASSY, SEPARATOR, A 74806B BAR SUB-ASSY, SEPARATOR, B 9020109011 ** Std Part 9010906255 ** Std Part 9338526020 ** Std Part 9338326020 ** Std Part 74808E SEPARATOR SUB-ASSY, REAR 74825D BRACKET, SEPARATOR BAR, NO.5 74802A BAR SUB-ASSY, SEPARATOR, E 9331126030 ** Std Part 9026005001 ** Std Part

Coaster BB46V
