(7911-8008)2B..DLX,STD
|

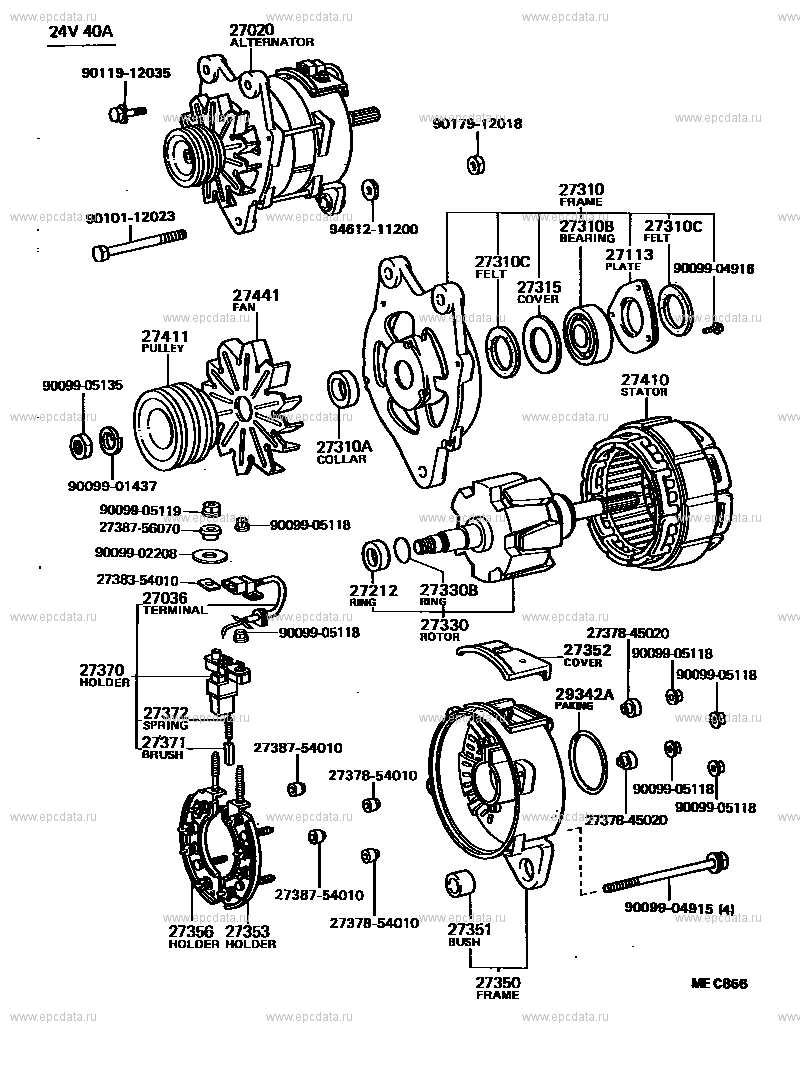

Click part number in the scheme or in the list:
27020 ALTERNATOR ASSY
9011908344 ** Std Part
9461211001 ** Std Part
9411541200 ** Std Part
9411041000 ** Std Part
9451201200 ** Std Part
27310 FRAME ASSY, DRIVE END, ALTERNATOR
9010112023 ** Std Part
27311 FRAME, ALTERNATOR DRIVE END
27310B BEARING(FOR ALTERNATOR DRIVE END FRAME)
27113 PLATE, BEARING RETAINER, ALTERNATOR
9461211200 ** Std Part
27310C FELT(FOR ALTERNATOR DRIVE END FRAME)
9009904916 ** Std Part
27315 COVER, ALTERNATOR FELT, INNER NO.1
27441 FAN, ALTERNATOR
27411 PULLEY, ALTERNATOR
9009905135 ** Std Part
27410 STATOR ASSY, ALTERNATOR
27310A COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
9009901437 ** Std Part
9009905119 ** Std Part
9009905118 ** Std Part
2738756070 ** Std Part
2738356070 ** Std Part
27330B RING, SNAP(FOR ALTERNATOR ROTOR)
27212 RING, SPACE(FOR ALTERNATOR ROTOR)
27036 TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27330 ROTOR ASSY, ALTERNATOR
2737845020 ** Std Part
27352 COVER, FRAME BRUSH
2737854010 ** Std Part
27370 HOLDER ASSY, ALTERNATOR BRUSH
9009902181 ** Std Part
27372 SPRING, ALTERNATOR BRUSH
2738754010 ** Std Part
27371 BRUSH, ALTERNATOR
9009904915 ** Std Part
27351 BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27359 FRAME, ALTERNATOR RECTIFIER END
27356 HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27353 HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27039 COVER, ALTERNATOR REAR END
27350 FRAME ASSY, RECTIFIER END |
