Vacuum pump for Coaster BB11
Click on the part subgroup below to get genuine part numbers.
Scheme 1
| (7911-8002)2B..DLX,STD |
Click part number in the scheme or in the list: 29300A HOSE, VACUUM PUMP OIL INLET29300 PUMP ASSY, VACUUM 29300B HOSE, VACUUM PUMP OIL OUTLET 9020114099 ** Std Part 9040114033 ** Std Part 9611110140 ** Std Part 9043010035 ** Std Part 9040110088 ** Std Part 29342 PACKING, VACUUM PUMP 29331 BLADE, VACUUM PUMP, A 29322A SEAL, VACUUM PUMP OIL 29369 VALVE SUB-ASSY, CHECK 2931346010 ** Std Part 9020110108 ** Std Part 9040110006 ** Std Part 9009904577 ** Std Part 29311 PIN, VACUUM PUMP DOWEL, NO.1 |

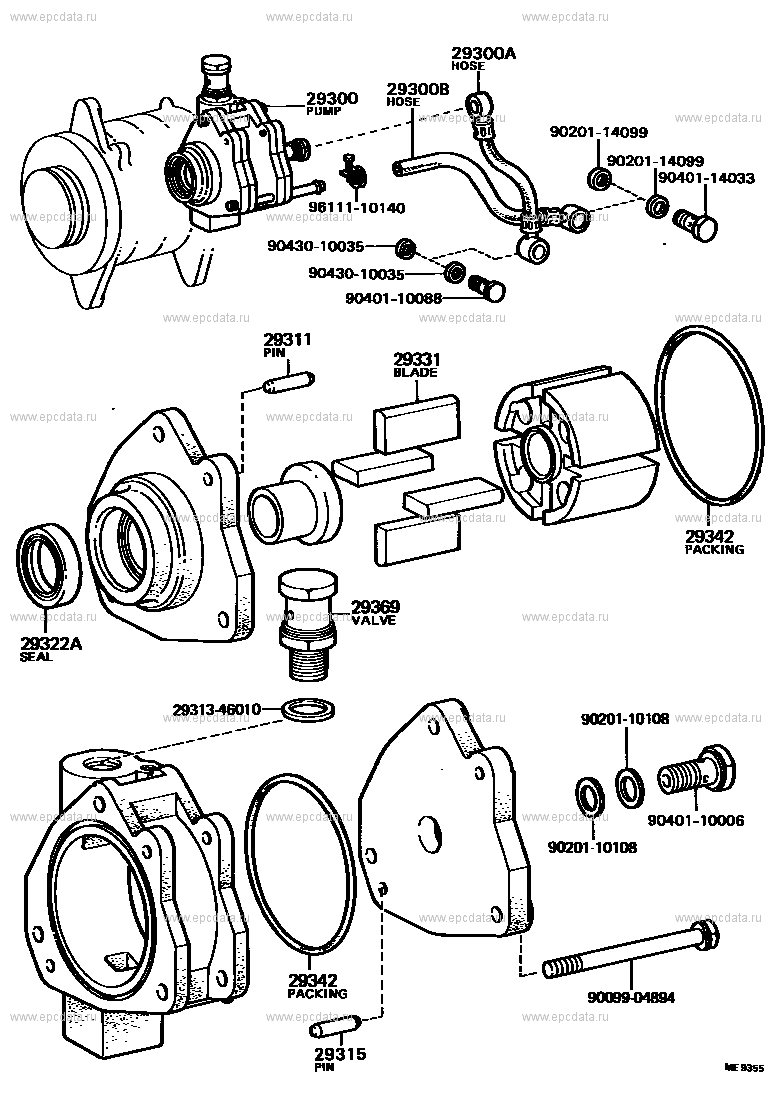

Scheme 2
| (8002-8008)2B..DLX,STD |
Click part number in the scheme or in the list: 29300A HOSE, VACUUM PUMP OIL INLET29300B HOSE, VACUUM PUMP OIL OUTLET 29300 PUMP ASSY, VACUUM 9020114099 ** Std Part 9040114033 ** Std Part 9611110140 ** Std Part 9043010035 ** Std Part 9040110088 ** Std Part 29311 PIN, VACUUM PUMP DOWEL, NO.1 29331 BLADE, VACUUM PUMP, A 29342 PACKING, VACUUM PUMP 29369 VALVE SUB-ASSY, CHECK 29322A SEAL, VACUUM PUMP OIL 2931346010 ** Std Part 9020110108 ** Std Part 9040110006 ** Std Part 9009904894 ** Std Part 29315 PIN, VACUUM PUMP DOWEL, NO.2 |
Scheme 3
| (7708-8008)2B..DLX,STD |
Click part number in the scheme or in the list: 29300A HOSE, VACUUM PUMP OIL INLET29300 PUMP ASSY, VACUUM 9040114033 ** Std Part 29300B HOSE, VACUUM PUMP OIL OUTLET 9043010035 ** Std Part 9040110088 ** Std Part 9020114099 ** Std Part 29331 BLADE, VACUUM PUMP, A 29311 PIN, VACUUM PUMP DOWEL, NO.1 29300C BEARING, VACUUM PUMP ROTOR, FRONT 29322A SEAL, VACUUM PUMP OIL 2744556011 ** Std Part 9020110108 ** Std Part 29315 PIN, VACUUM PUMP DOWEL, NO.2 29369 VALVE SUB-ASSY, CHECK 9040110005 ** Std Part 2936466010 ** Std Part 29342 PACKING, VACUUM PUMP 9009904895 ** Std Part 2936056030 ** Std Part 2931346010 ** Std Part 9009918014 ** Std Part |
Scheme 4
| (8008-8109)2B ; (8109- )2B..DLX,STD |
Click part number in the scheme or in the list: 9040110006 ** Std Part29300 PUMP ASSY, VACUUM 9043010035 ** Std Part 29300A HOSE, VACUUM PUMP OIL INLET 9040114033 ** Std Part 9020114099 ** Std Part 9611110180 ** Std Part 29300B HOSE, VACUUM PUMP OIL OUTLET 29311 PIN, VACUUM PUMP DOWEL, NO.1 29331 BLADE, VACUUM PUMP, A 29342 PACKING, VACUUM PUMP 29369 VALVE SUB-ASSY, CHECK 29322A SEAL, VACUUM PUMP OIL 2931346010 ** Std Part 9020110108 ** Std Part 9009918005 ** Std Part 9009904894 ** Std Part |
Scheme 5
| (8008-8109)2B ; (8109- )2B..DLX,STD |
Click part number in the scheme or in the list: 9040110006 ** Std Part29300 PUMP ASSY, VACUUM 9043010035 ** Std Part 29300A HOSE, VACUUM PUMP OIL INLET 9040114033 ** Std Part 9020114099 ** Std Part 9611110180 ** Std Part 29300B HOSE, VACUUM PUMP OIL OUTLET 29311 PIN, VACUUM PUMP DOWEL, NO.1 29331 BLADE, VACUUM PUMP, A 29342 PACKING, VACUUM PUMP 29369 VALVE SUB-ASSY, CHECK 29322A SEAL, VACUUM PUMP OIL 2931346010 ** Std Part 9020110108 ** Std Part 9009918005 ** Std Part 9009904894 ** Std Part |
Scheme 6
| (8109- )2B |
Click part number in the scheme or in the list: 9040110006 ** Std Part9040109001 ** Std Part 9043010035 ** Std Part 9020114099 ** Std Part 29300A HOSE, VACUUM PUMP OIL INLET 9040114033 ** Std Part 29300 PUMP ASSY, VACUUM 29300B HOSE, VACUUM PUMP OIL OUTLET 9611110180 ** Std Part 29369 VALVE SUB-ASSY, CHECK 29331 BLADE, VACUUM PUMP, A 29311 PIN, VACUUM PUMP DOWEL, NO.1 2936466010 ** Std Part 29342 PACKING, VACUUM PUMP 9009904577 ** Std Part |
