(8008- )
|

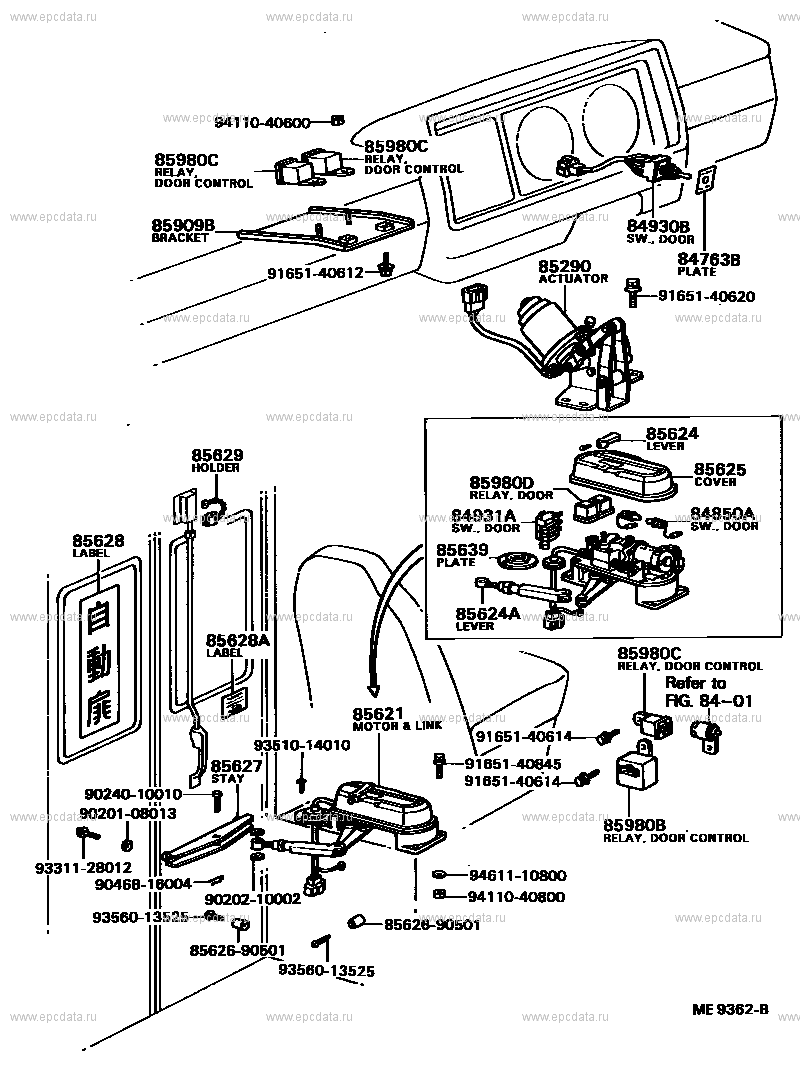

Click part number in the scheme or in the list:
9411040600 ** Std Part
85980C RELAY ASSY, DOOR CONTROL, NO.2 (FOR AUTOMATIC DOOR)
85909B BRACKET SUB-ASSY, RELAY
84930B SWITCH ASSY, DOOR CONTROL(FOR AUTOMATIC DOOR)
84763B PLATE, SWITCH
85290 ACTUATOR ASSY, ACCEL INTOR LOCK
9165140612 ** Std Part
9165140620 ** Std Part
85624 LEVER, AUTOMATIC DOOR REGULATOR, NO.1
85629 HOLDER, AUTOMATIC DOOR
85625 COVER, AUTOMATIC DOOR REGULATOR
85980D RELAY ASSY, DOOR CONTROL, NO.3 (FOR AUTOMATIC DOOR)
84850A SWITCH ASSY, DOOR OPENING
84931A SWITCH, AUTOMATIC DOOR CONTROL
85628 LABEL, AUTOMATIC DOOR, NO.1
85639 PLATE, AUTOMATIC DOOR
85624A LEVER, AUTOMATIC DOOR REGULATOR, NO.2
85628A LABEL, AUTOMATIC DOOR, NO.2
** 84-01
85621 MOTOR & LINK, AUTOMATIC DOOR REGULATOR
9165140614 ** Std Part
9351014010 ** Std Part
9165140845 ** Std Part
85627 STAY, AUTOMATIC DOOR REGULATOR
9024010010 ** Std Part
9020108013 ** Std Part
85980B RELAY ASSY, DOOR CONTROL (FOR AUTOMATIC DOOR)
9331128012 ** Std Part
9461110800 ** Std Part
9046816004 ** Std Part
9411040800 ** Std Part
9020210002 ** Std Part
9356013525 ** Std Part
8562690501 ** Std Part |
