Vacuum piping for Chaser JZX81

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(8808- )1JZ# Open full size scheme Go to top

Click part number in the scheme or in the list: 9099992002 ** Std Part 9099992003 ** Std Part 9099992004 ** Std Part 9099992006 ** Std Part 9099992007 ** Std Part 9099992008 ** Std Part

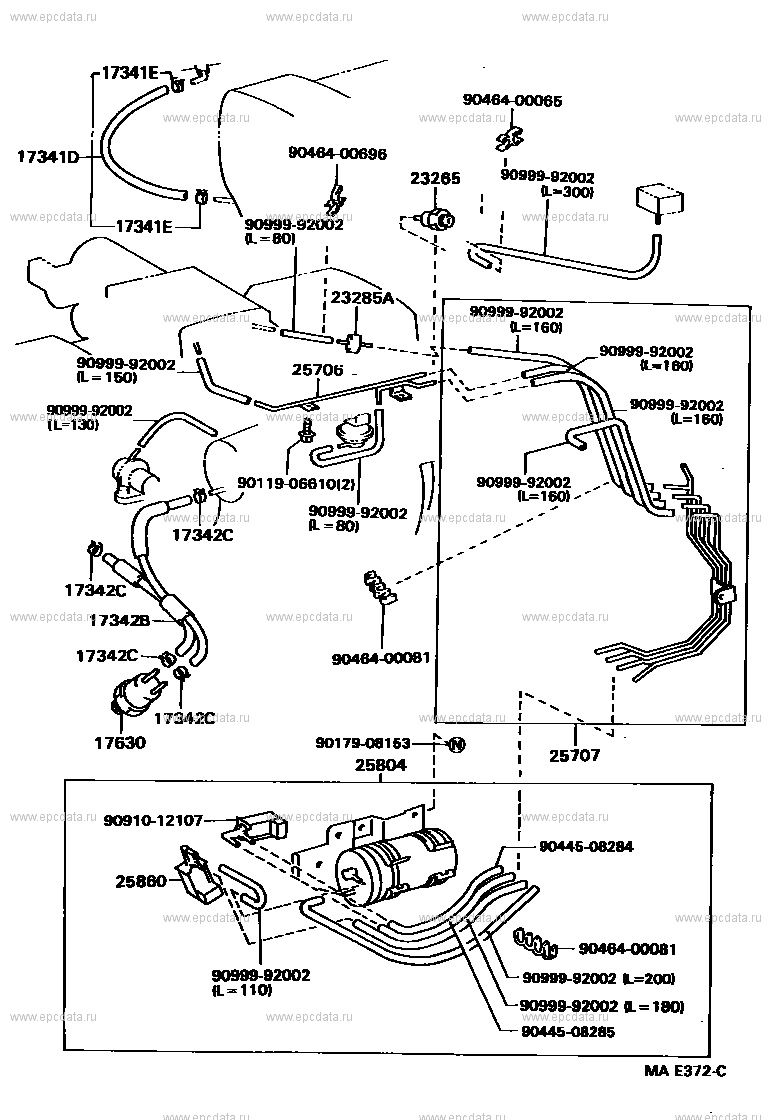

Scheme 2

(9008- )1JZGE Open full size scheme Go to top

Click part number in the scheme or in the list: 17341E CLIP, NO.1(FOR IDLE-UP HOSE) 9046400065 ** Std Part 9046400696 ** Std Part 17341D HOSE, NO.1(FOR IDLE-UP) 9099992002 ** Std Part 23265 FILTER, GAS, NO.1 23285A VALVE, CHECK, NO.1 25706 PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 9011906610 ** Std Part 17342C CLIP, NO.2(FOR IDLE-UP HOSE) 17342B HOSE, NO.2(FOR IDLE-UP) 9046400081 ** Std Part 17630 VALVE ASSY, AIR CONTROL 9017908153 ** Std Part 25707 PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2 25804 VALVE SET, VACUUM CONTROL 9091012107 ** Std Part 9044508284 ** Std Part 25860 VALVE ASSY, VACUUM SWITCHING, NO.1 9044508285 ** Std Part

Chaser JZX81
