Radiator & water outlet for Chaser JZX100

Click on the part subgroup below to get genuine part numbers.

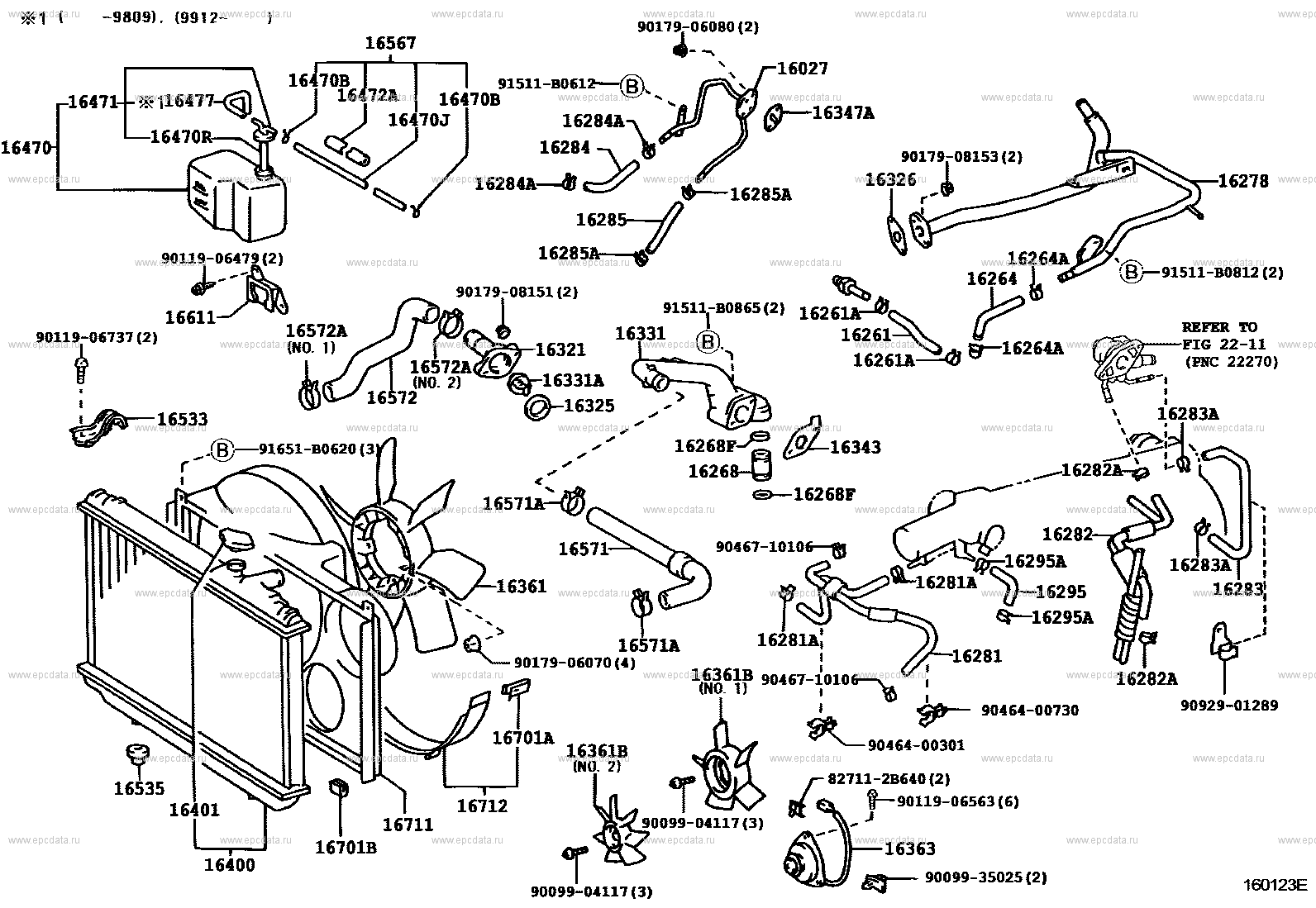

Scheme 1

(9609- )1JZGTE ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16471 CAP SUB-ASSY, RESERVE TANK 16477 PIPE(FOR RADIATOR RESERVE TANK) 16470 TANK ASSY, RADIATOR RESERVE 16470R HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16470B CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16567 HOSE(FOR RADIATOR RESERVE TANK) 16472A PROTECTOR, HOSE 16470J HOSE, NO.3(FOR RADIATOR RESERVE TANK) 16535 SUPPORT, RADIATOR, LOWER 91511B0612 ** Std Part 16284A CLIP(FOR TURBO WATER HOSE NO.1) 16284 HOSE, TURBO WATER, NO.1 9011906479 ** Std Part 16611 BRACKET, RADIATOR RESERVE TANK 9011906737 ** Std Part 16533 SUPPORT, RADIATOR, UPPER 16572A CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572 HOSE, RADIATOR, OUTLET 91651B0620 ** Std Part 9017908151 ** Std Part 16321 INLET, WATER 16331A THERMOSTAT 16325 GASKET, WATER INLET HOUSING, NO.1 16571A CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571 HOSE, RADIATOR, INLET 16361 FAN 16285 HOSE, TURBO WATER, NO.2 16285A CLIP(FOR TURBO WATER HOSE NO.2) 9017906080 ** Std Part 16027 PIPE SUB-ASSY, TURBO WATER, NO.1 16347A GASKET(FOR TURBO WATER PIPE) 16331 OUTLET, WATER 91511B0865 ** Std Part 16268F RING, O(FOR WATER BY-PASS PIPE) 16268 PIPE, WATER BY-PASS, NO.1 16343 GASKET, WATER OUTLET HOUSING 16261A CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261 HOSE, WATER BY-PASS 16326 GASKET, WATER INLET HOUSING, NO.2 9017908153 ** Std Part 16278 PIPE, WATER BY-PASS, NO.2 16264 HOSE, WATER BY-PASS, NO.2 16264A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 91511B0812 ** Std Part 16283A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) 16282A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) 16282 HOSE, WATER BY-PASS, NO.5 16283 HOSE, WATER BY-PASS, NO.6 16295A CLIP(FOR WATER BY-PASS HOSE NO.7) 16295 HOSE, WATER BY-PASS, NO.7 9092901289 ** Std Part 9046710106 ** Std Part 16281A CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) 16281 HOSE, WATER BY-PASS, NO.4 9046400301 ** Std Part 16361B FAN, NO.2 827112B640 ** Std Part 9011906563 ** Std Part 16363 MOTOR, COOLING FAN 9009935025 ** Std Part 9009904117 ** Std Part 16701A CLIP(FOR FAN SHROUD) 9017906070 ** Std Part 16712 SHROUD, FAN, NO.2 16711 SHROUD, FAN 16701B CUSHION, FAN SHROUD 16400 RADIATOR ASSY 16401 CAP SUB-ASSY, RADIATOR 9046400730 ** Std Part ** 22-11

Scheme 2

(9609- )1JZ#,2JZGE ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 16400 RADIATOR ASSY 16401 CAP SUB-ASSY, RADIATOR 16442 RING, O(FOR RADIATOR UPPER TANK) 16403F CORE SUB-ASSY, RADIATOR 16462 RING, O(FOR RADIATOR LOWER TANK) 16495 NUT, FLARE(FOR ATM OIL COOLER) 16495A NUT, FLARE, NO.2(FOR ATM OIL COOLER) 16406A SUPPORT(FOR OIL COOLER) 16491B WASHER, PLATE(FOR ATM OIL COOLER) 16491A RING, O(FOR ATM OIL COOLER) 16400F PACKING(FOR RADIATOR DRAIN COCK) 16400B PLUG, RADIATOR DRAIN COCK 16491 COOLER, OIL(FOR ATM) 16407A COCK SUB-ASSY, RADIATOR DRAIN
