Meter for Century GZG50
| Frame number: GZG50-0001922 | Color code: 8M3 | Trim code:8M3 | Manufacture date: 1997.07 |
Click on the part subgroup below to get genuine part numbers.

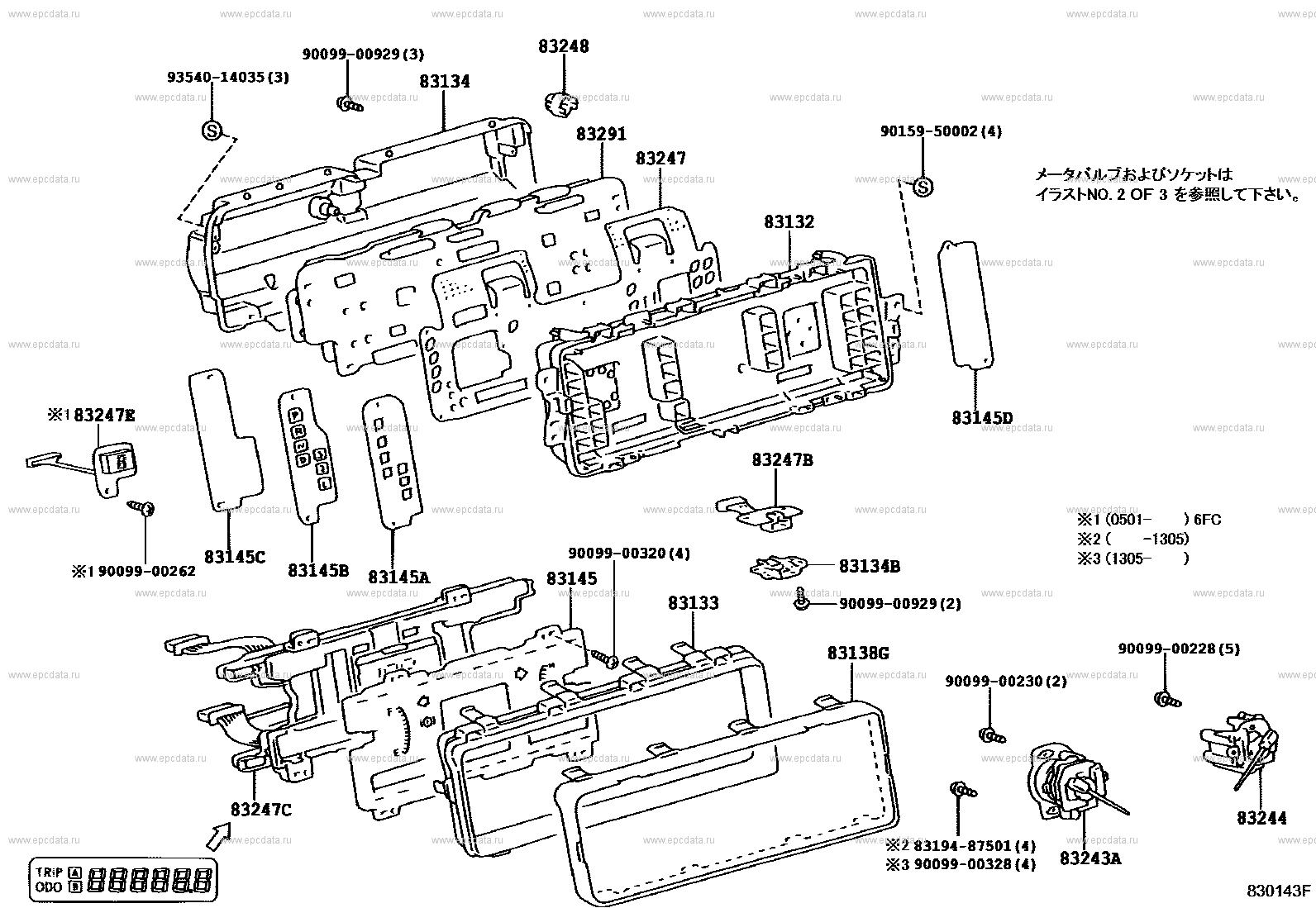

Scheme 1
|
(9704- ) ｽﾋﾟ-ﾄﾞﾒ-ﾀ ILLUST NO. 1 OF 3 |
Click part number in the scheme or in the list: 9354014035 ** Std Part9009900929 ** Std Part 83134 COVER, COMBINATION METER, NO.1 83248 CHIME, SPEED WARNING 83291 COMPUTER, COMBINATION METER 83247 PLATE, METER CIRCUIT 83132 CASE, COMBINATION METER 83247B PLATE, METER CIRCUIT, NO.2 9015950002 ** Std Part 83145D LENS, METER, NO.5 83138G GLASS, COMBINATION METER 9009900230 ** Std Part 83244 GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER 83243A GAUGE SUB-ASSY, FUEL RECEIVER 8319487501 ** Std Part 83134B COVER, COMBINATION METER, NO.2 9009900228 ** Std Part 83145B LENS, METER, NO.3 83247C PLATE, MATER CIRCUIT, NO.3 83145A LENS, METER, NO.2 83133 PLATE, COMBINATION METER, NO.1 83145C LENS, METER, NO.4 83145 LENS, METER, NO.1 9009900320 ** Std Part 83247E PLATE, MATER CIRCUIT, NO.4 9009900262 ** Std Part 9009900328 ** Std Part |
Scheme 2
|
(9704-0601) ﾊﾞﾙﾌﾞ & ｿｹｯﾄ ILLUST NO. 2 OF 3 |
Click part number in the scheme or in the list: 83100B BULB, COMBINATION METER, NO.183101 SOCKET SUB-ASSY, COMBINATION METER BULB |
Scheme 3
|
(9704- ) ｸﾛﾂｸ ILLUST NO. 3 OF 3 |
Click part number in the scheme or in the list: 9356855014 ** Std Part83910 CLOCK ASSY 83910E CLOCK ASSY, REAR 83910B BULB, CLOCK INDICATOR |
