Heating & air conditioning - control & air duct for Celsior UCF21

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9410- ) ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ & ｾﾝｻ ILLUST NO. 1 OF 3 Open full size scheme Go to top

Click part number in the scheme or in the list: 55912A HOUSING, HEATER CONTROL 88625R THERMISTOR, COOLER (SENSOR, SMOG VENTILATION) 88625C THERMISTOR, COOLER 88650B AMPLIFIER ASSY, AIRCONDITIONER 88484 WIRE, COOLER, NO.1 55900B BULB, AIR CONDITIONER CONTROL 55902B CONTROL SUB-ASSY, HEATER 9009490416 ** Std Part 9011906459 ** Std Part 9356755016 ** Std Part 9356855014 ** Std Part 9356815014 ** Std Part

Scheme 2

(9410- ) ｴｱﾀﾞｸﾄ---ﾌﾛﾝﾄ ILLUST NO. 2 OF 3 Open full size scheme Go to top

Click part number in the scheme or in the list: 55845A DUCT, HEATER TO REGISTER, NO.3 55843A DUCT, HEATER TO REGISTER, NO.1 9015960070 ** Std Part 9356855014 ** Std Part 9356815014 ** Std Part 55846A DUCT, HEATER TO REGISTER, NO.4 87214M DUCT, HEATER TO FOOT, NO.3 55844 DUCT, HEATER TO REGISTER, NO.2 58861B DUCT, CONSOLE BOX, NO.1 9356755016 ** Std Part 58863A DUCT, CONSOLE BOX, NO.3 9015960008 ** Std Part 58862B DUCT, CONSOLE BOX, NO.2 87212 DUCT, AIR, REAR NO.1 87213 DUCT, AIR, REAR NO.2 87222 GUIDE, AIR DUCT, REAR 87217A DUCT, AIR, REAR NO.6 87217B PLUG, AIR DUCT 9016460014 ** Std Part 87218C DUCT, AIR, REAR NO.6

Scheme 3

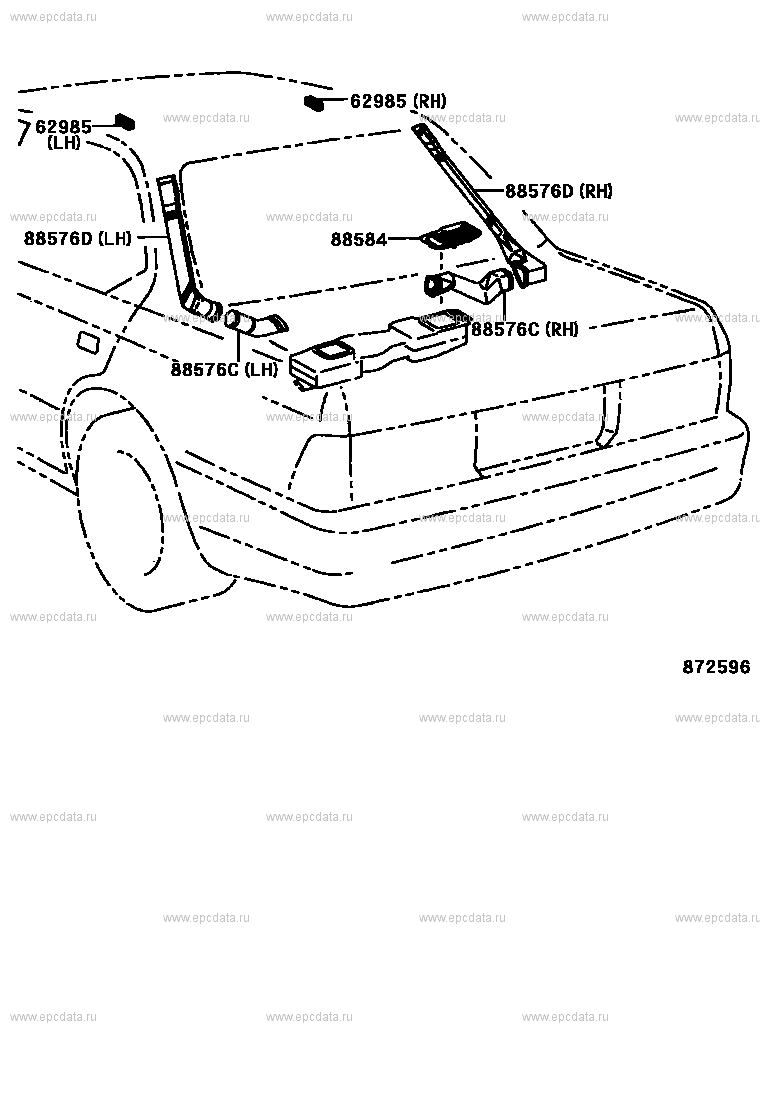

(9410- ) ｴｱﾀﾞｸﾄ---ﾘﾔ ILLUST NO. 3 OF 3 Open full size scheme Go to top

Click part number in the scheme or in the list: 62985 REGISTER, ROOF SIDE AIR OUTLET 88576D DUCT, COOLER AIR, NO.2 88584 GUIDE, AIR 88576C DUCT, COOLER AIR, NO.1

Celsior UCF21
