Fuel tank & tube for Celsior UCF21

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9410- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9014950049 ** Std Part 9017014021 ** Std Part 9046708028 ** Std Part 77350 LID ASSY, FUEL FILLER OPENING 77310A CAP ASSY, FUEL TANK 77316 GASKET, FUEL TANK CAP 77399A COVER, FUEL FILLER OPENING LID 9015950269 ** Std Part 77366 SPRING, FUEL FILLER OPENING LID HINGE 9017605015 ** Std Part 77293A SHIELD, FUEL TANK FILLER PIPE, NO.3 9018905137 ** Std Part 77391 RING, FUEL INLET BOX 9044609015 ** Std Part 9331614010 ** Std Part 9338115010 ** Std Part 9046713001 ** Std Part 77178 GASKET, FUEL TANK FILLER PIPE, LOWER 77201 PIPE SUB-ASSY, FUEL TANK INLET 77169A GASKET, FUEL SUCTION TUBE SET 77179A GASKET, FUEL TANK BREATHER TUBE 23239A HOSE 9011910721 ** Std Part 9413060400 ** Std Part 77203A TUBE SUB-ASSY, FUEL SUCTION 9451100400 ** Std Part 9413060500 ** Std Part 9451100500 ** Std Part 9017906158 ** Std Part 77606F CASE SUB-ASSY, FUEL TANK COVER VENT ** 22-11 77100 TANK ASSY, FUEL 9017906161 ** Std Part 77607 CASE SUB-ASSY, FUEL TANK COVER VENT, LH

Scheme 2

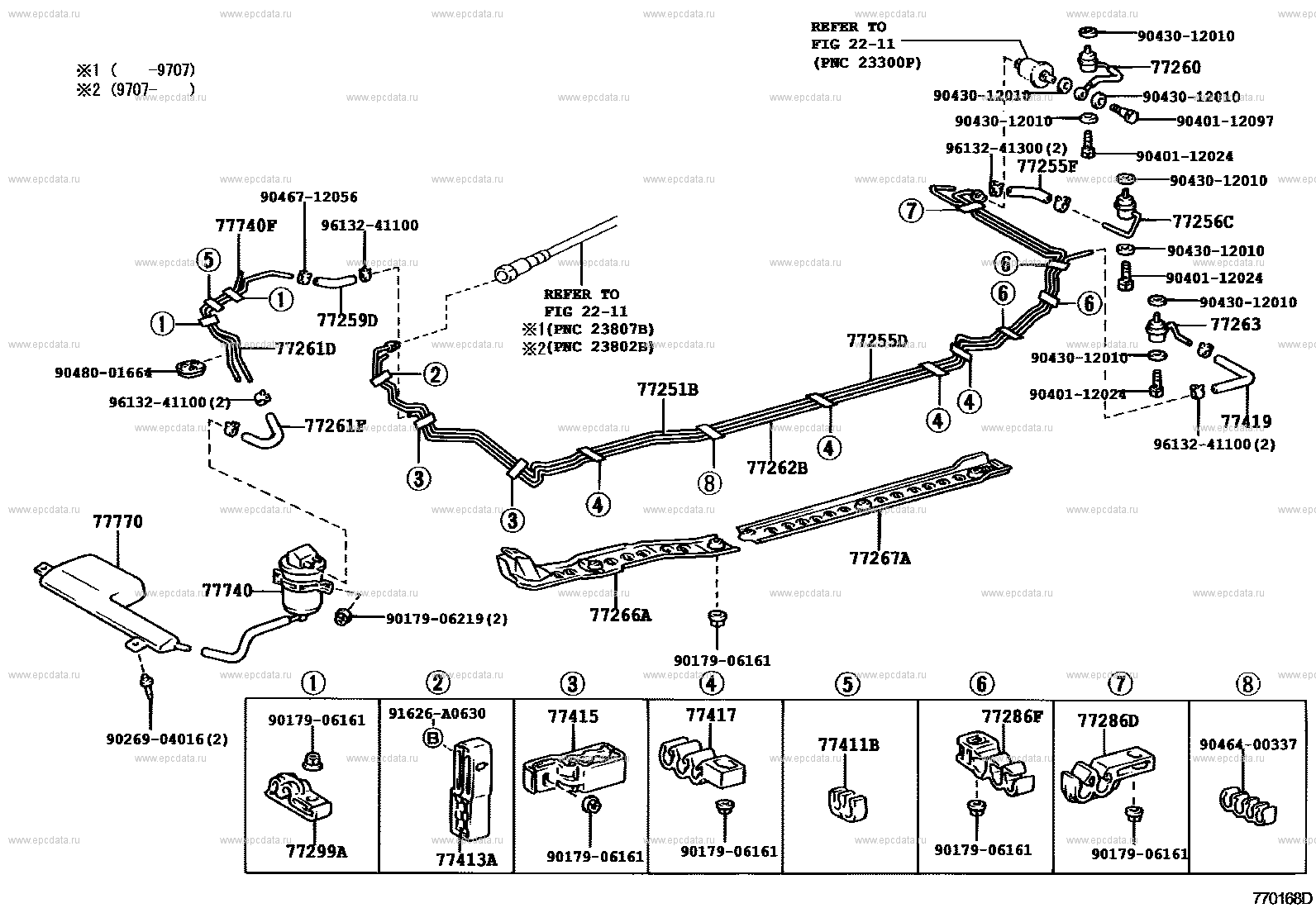

(9410- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 77740F TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77261D TUBE, FUEL TANK TO CANISTER 9048001664 ** Std Part 9613241100 ** Std Part 77259D HOSE, FUEL, NO.1 77261F HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77251B TUBE, FUEL MAIN 77262B TUBE, FUEL TANK TO CANISTER, NO.2 77255D TUBE, FUEL RETURN 77267A PROTECTOR, FUEL TUBE, NO.2 9043012010 ** Std Part 77260 HOSE ASSY, FUEL MAIN 9040112097 ** Std Part 9613241300 ** Std Part 77255F HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77256C TUBE, FUEL RETURN, NO.2 9040112024 ** Std Part 77263 TUBE, FUEL TANK TO CANISTER, NO.3 77419 HOSE, FUEL, NO.3 9046400337 ** Std Part 77286D CLAMP, FUEL TUBE, NO.2 9017906161 ** Std Part 77286F CLAMP, FUEL TUBE, NO.2 77411B SUPPORT, FUEL TUBE GROMMET, NO.1 77417 SUPPORT, FUEL TUBE GROMMET, NO.7 77415 SUPPORT, FUEL TUBE GROMMET, NO.5 91626A0630 ** Std Part 77413A SUPPORT, FUEL TUBE GROMMET, NO.3 77299A CLAMP, FUEL TUBE, NO.5 9026904016 ** Std Part 77770 TANK ASSY, CHARCOAL CANISTER 77740 CANISTER ASSY, CHARCOAL 9017906219 ** Std Part 77266A PROTECTOR, FUEL TUBE, NO.1 9046712056 ** Std Part ** 22-11

Celsior UCF21
