Vacuum piping for Celsior UCF21

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9410- ) Open full size scheme Go to top

Click part number in the scheme or in the list:

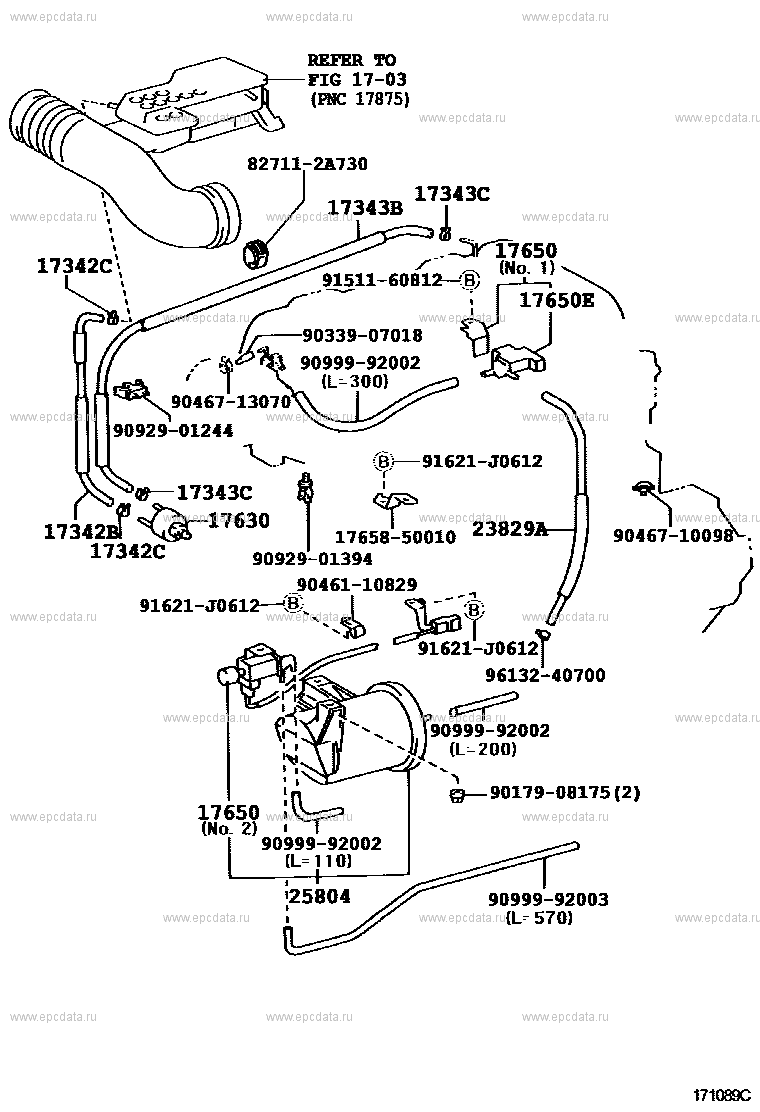

Scheme 2

(9707- ) Open full size scheme Go to top

Click part number in the scheme or in the list: ** 17-03 17343C CLIP, NO.3(FOR IDLE-UP HOSE) 25804 VALVE SET, VACUUM CONTROL 9613240700 ** Std Part 17630 VALVE ASSY, AIR CONTROL 17342B HOSE, NO.2(FOR IDLE-UP) 17650 VALVE ASSY, VACUUM SWITCHING 9046713070 ** Std Part 91621J0612 ** Std Part 1765850010 ** Std Part 9046710098 ** Std Part 827112A730 ** Std Part 9033907018 ** Std Part 17650E VALVE, VACUUM SWITCHING 9046110829 ** Std Part 9017908175 ** Std Part 9099992002 ** Std Part 9092901394 ** Std Part 17343B HOSE, NO.3(FOR IDLE-UP) 9092901244 ** Std Part 23829A HOSE, FUEL VAPOR FEED 17342C CLIP, NO.2(FOR IDLE-UP HOSE) 9099992003 ** Std Part 9151160812 ** Std Part

Celsior UCF21
