Instrument panel & glove compartment for Celsior UCF21

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9410- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 55981 GARNISH, DEFROSTER NOZZLE, NO.1 55972A DUCT, SIDE DEFROSTER NOZZLE, NO.2 55950A NOZZLE ASSY, DEFROSTER 55971B DUCT, SIDE DEFROSTER NOZZLE, NO.1 9046714026 ** Std Part 9017908025 ** Std Part 9356855014 ** Std Part 9017906097 ** Std Part 9011906077 ** Std Part 9046804177 ** Std Part 9046804175 ** Std Part 9017906125 ** Std Part 55374C BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 55384C BRACKET, FINISH PANEL MOUNTING, NO.4 55381B BRACKET, FINISH PANEL MOUNTING, NO.1 55416A RETAINER, METER HOOD, NO.1 55306A BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55417A RETAINER, METER HOOD, NO.2 73960A AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR 55401E PAD SUB-ASSY, INSTRUMENT PANEL SAFETY 55307C BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55330B REINFORCEMENT ASSY, INSTRUMENT PANEL 55375B BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 55368A BRACKET, RADIO MOUNTING, NO.2 55366A BRACKET, RADIO MOUNTING, NO.1 9162660820 ** Std Part 9162660818 ** Std Part 9356815014 ** Std Part 5534530030 ** Std Part 55590 PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER 55359D CUSHION, INSTRUMENT PANEL, NO.5

Scheme 2

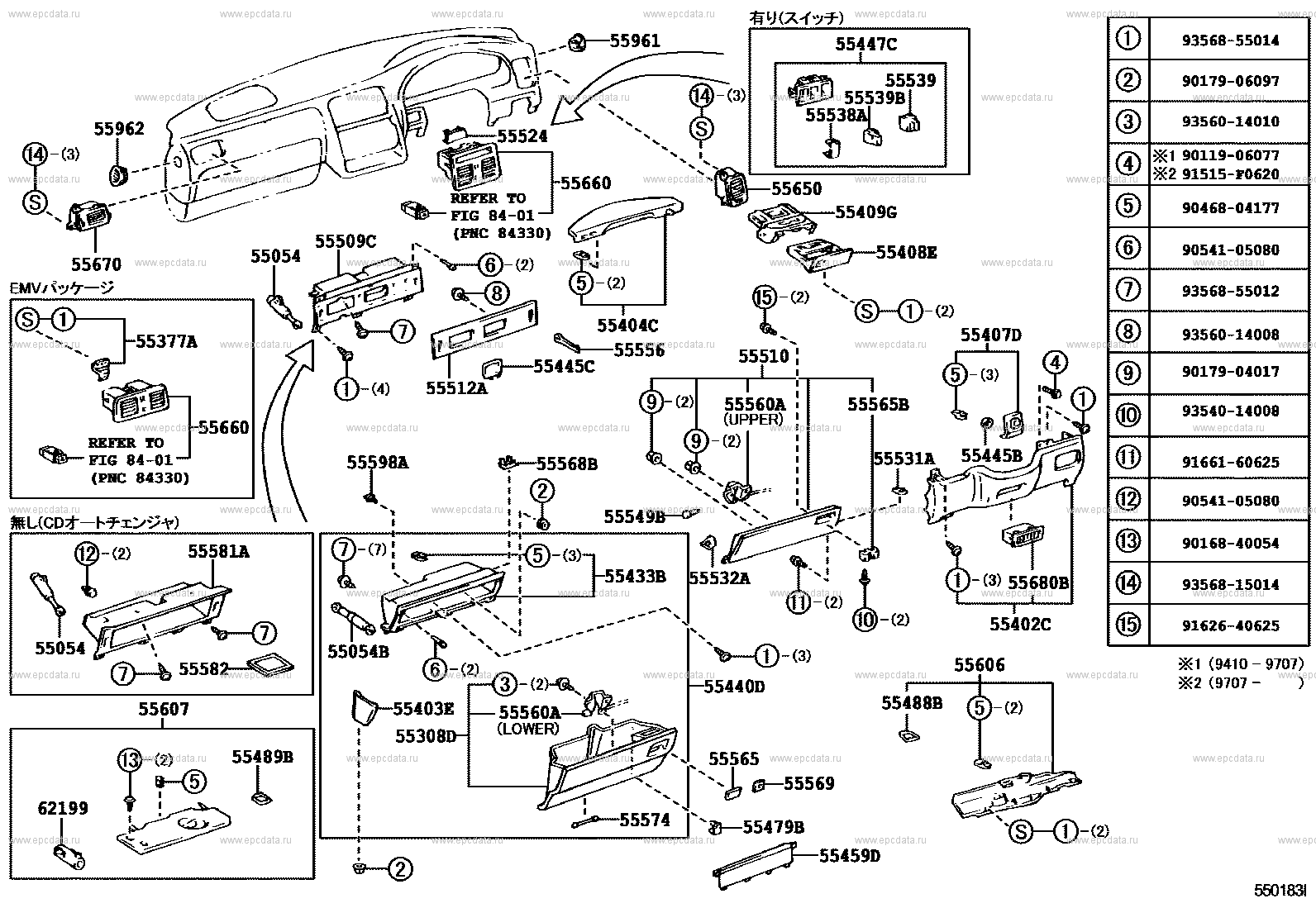

(9410- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 55054 STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55962 NOZZLE, SIDE DEFROSTER, NO.2 55961 NOZZLE, SIDE DEFROSTER, NO.1 55598A BRACKET, GLOVE COMPARTMENT DOOR HINGE 55670 REGISTER ASSY, INSTRUMENT PANEL, NO.3 55660 REGISTER ASSY, INSTRUMENT PANEL, NO.2 55560A LOCK ASSY, GLOVE COMPARTMENT DOOR 55581A COMPARTMENT, GLOVE 55556 ARM, GLOVE COMPARTMENT DOOR CHECK 55568B PLATE, GLOVE COMPARTMENT DOOR FINISH 55565B KNOB, GLOVE COMPARTMENT DOOR LOCK 55549B COVER, INSTRUMENT PANEL HOLE, NO.2 55582 COMPARTMENT, GLOVE DOOR, INNER 55607 COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55574 SHAFT, GLOVE COMPARTMENT DOOR HINGE 55565 HANDLE, GLOVE COMPARTMENT DOOR LOCK 55569 COVER, GLOVE COMPARTMENT DOOR LOCK 55532A PANEL, GLOVE COMPARTMENT, NO.2 55606 COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 62199 HOLDER, FUSEE 55054B STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55433B PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 55308D BOX SUB-ASSY, INSTRUMENT PANEL, CENTER 55403E PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 55440D BOX ASSY, INSTRUMENT PANEL 55489B LENS, FRONT FOOT LAMP, NO.2 55445C PLATE, INSTRUMENT PANEL BOX 55512A PLATE, GLOVE COMPARTMENT 55377A BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 55509C PANEL SUB-ASSY, GLOVE COMPARTMENT 55524 COVER, SWITCH BACE HOLE 55447C BASE, SWITCH HOLE, NO.2 55539 COVER, SPARE SWITCH HOLE 55539B COVER, SPARE SWITCH HOLE, NO.2 55538A COVER, COOLER SWITCH HOLE 55407D PAD SUB-ASSY, INSTRUMENT PANEL, END 55404C PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 55445B PLATE, INSTRUMENT PANEL FINISH 55531A PANEL, GLOVE COMPARTMENT, NO.1 55680B REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 55510 DOOR ASSY, GLOVE COMPARTMENT 55479B COVER, INSTRUMENT, LOWER CENTER 55488B LENS, FRONT FOOT LAMP, NO.1 55459D COVER, INSTRUMENT, LOWER LH 55402C PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH 9011906077 ** Std Part 9017904017 ** Std Part 9017906097 ** Std Part 9054105080 ** Std Part 9016840054 ** Std Part 9356855014 ** Std Part 9046804177 ** Std Part 9356014010 ** Std Part 9356014008 ** Std Part 9356855012 ** Std Part 9356815014 ** Std Part 9162640625 ** Std Part 9166160625 ** Std Part 9354014008 ** Std Part 91515F0620 ** Std Part ** 84-01 55650 REGISTER ASSY, INSTRUMENT PANEL, NO.1 55408E BOX SUB-ASSY, INSTRUMENT PANEL COIN 55409G RETAINER SUB-ASSY, COIN BOX
