Roof panel & back window glass for Celsior UCF20

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 63214F 63214-50020 01 10.1994 - CHANNEL, ROOF DRIP, REAR UCF2# 61.18 USD

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9410- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 63111 PANEL, ROOF 63105D FRAME SUB-ASSY, BACK WINDOW, UPPER 9011906495 ** Std Part 63693 PAD, ROOF SILENCER, NO.23 63692 PAD, ROOF SILENCER, NO.22 63691 PAD, ROOF SILENCER, NO.21 63102A PANEL SUB-ASSY, WINDSHIELD HEADER 9017906026 ** Std Part 63141H REINFORCEMENT, ROOF PANEL, CENTER 64818 SPACER, BACK WINDOW GLASS 64167B COVER, UPPER BACK PANEL HOLE, NO.3 63143B REINFORCEMENT, ROOF PANEL, NO.3 64194A PAD, BACK PANEL SILENCER, UPPER 9046805045 ** Std Part 9033330002 ** Std Part 9163140612 ** Std Part 9033340001 ** Std Part 56116A SPACER, WINDSHIELD GLASS 64165B COVER, UPPER BACK PANEL HOLE, NO.1 75495 CLIP, OUTSIDE MOULDING, NO.4 64811 GLASS, BACK WINDOW 64101 PANEL SUB-ASSY, UPPER BACK ** 64-03 63694 PAD, ROOF SILENCER, NO.24 63148A REINFORCEMENT, ROOF PANEL, NO.7 9010506082 ** Std Part 9017906273 ** Std Part

Scheme 2

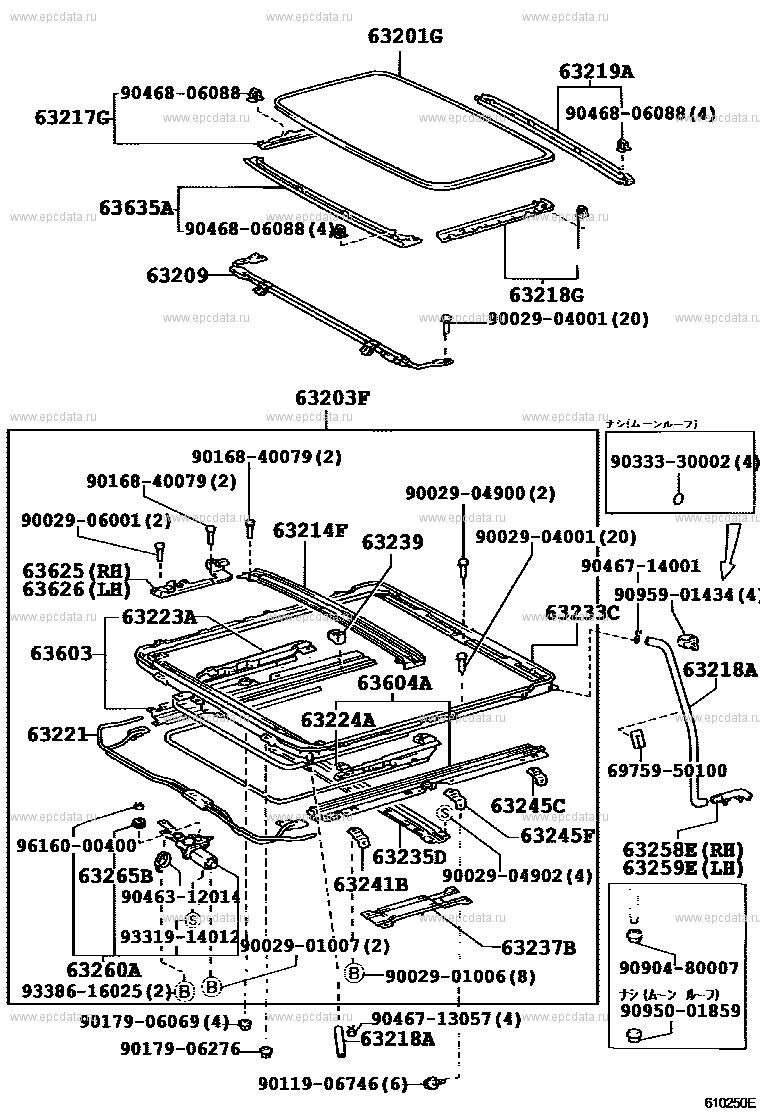

(9410- ) ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 63219A GARNISH, SLIDING ROOF, REAR 9046806088 ** Std Part 63218G GARNISH, SLIDING ROOF SIDE, LH 9033330002 ** Std Part 9046714001 ** Std Part 9095901434 ** Std Part 63218A HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 6975950100 ** Std Part 63258E JOINT, SLIDE ROOF DRAIN HOSE, RH 63259E STRENGTH, ROOF PANEL, CENTER NO.9 9090480007 ** Std Part 9095001859 ** Std Part 9011906746 ** Std Part 9017906069 ** Std Part 9017906276 ** Std Part 63260A GEAR SUB-ASSY, SLIDING ROOF DRIVE 9046312014 ** Std Part 63265B GEAR, SLIDING ROOF DRIVE 9616000400 ** Std Part 63203F HOUSING SUB-ASSY, SLIDING ROOF 63209 PANEL SUB-ASSY, ROOF WIND DEFLECTOR 63201G GLASS SUB-ASSY, SLIDING ROOF 63217G GARNISH, SLIDING ROOF SIDE, RH 63635A GARNISH, SLIDING ROOF, FRONT 9002901006 ** Std Part 9002901007 ** Std Part 9002904001 ** Std Part 9002904900 ** Std Part 9002906001 ** Std Part 9016840079 ** Std Part 9046713057 ** Std Part 9338616025 ** Std Part 63214F CHANNEL, ROOF DRIP, REAR 63233C PANEL, SLIDING ROOF HOUSING 63221 CASING, SLIDING ROOF CABLE GUIDE 63241B BRACKET, SLIDING ROOF HOUSING, NO.1 63603 RAIL SUB-ASSY, SLIDING ROOF DRIVE, RH 63604A RAIL SUB-ASSY, SLIDING ROOF DRIVE, LH 63235D FRAME, SLIDING ROOF HOUSING, CENTER 63245F BRACKET, SLIDING REAR MOUNTING 63245C BRACKET, REMOVABLE ROOF, NO.1 63237B FRAME, SLIDING ROOF HOUSING, REAR 63239 STOPPER, SLIDING ROOF PANEL 63223A CABLE, SLIDING ROOF DRIVE, RH 63224A CABLE, SLIDING ROOF DRIVE, LH 63625 BLOCK, SLIDING ROOF GUIDE, RH 63626 BLOCK, SLIDING ROOF GUIDE, LH 9331914012 ** Std Part 9002904902 ** Std Part

Celsior UCF20
