Vane pump & reservoir (power steering) for Carina AA63

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 44348 44345-12010 10 05.1982 - 04.1988 PLATE, VANE PUMP AA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST 長さ＝１４．９９７,L=14.996-14.998,ROTOR NO MARK 6.00 USD 02 44348 44345-12020 10 05.1982 - 04.1988 PLATE, VANE PUMP AA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST 長さ＝１４．９９５,L=14.994-14.996,ROTOR MARK 1 6.00 USD 03 44348 44345-12030 10 05.1982 - 04.1988 PLATE, VANE PUMP AA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST 長さ＝１４．９９３,L=14.992-14.994,ROTOR MARK 2 6.00 USD 04 44348 44345-12040 10 05.1982 - 04.1988 PLATE, VANE PUMP AA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST 長さ＝１４．９９１,L=14.990-14.992,ROTOR MARK 3  6.00 to 6.01 USD 05 44348 44345-12050 10 05.1982 - 04.1988 PLATE, VANE PUMP AA6#,CA60,RA63,SA60,TA63..GT,GTT,SE,SG,ST 長さ＝１４．９８９,L=14.988-14.990,ROTOR MARK 4 6.00 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

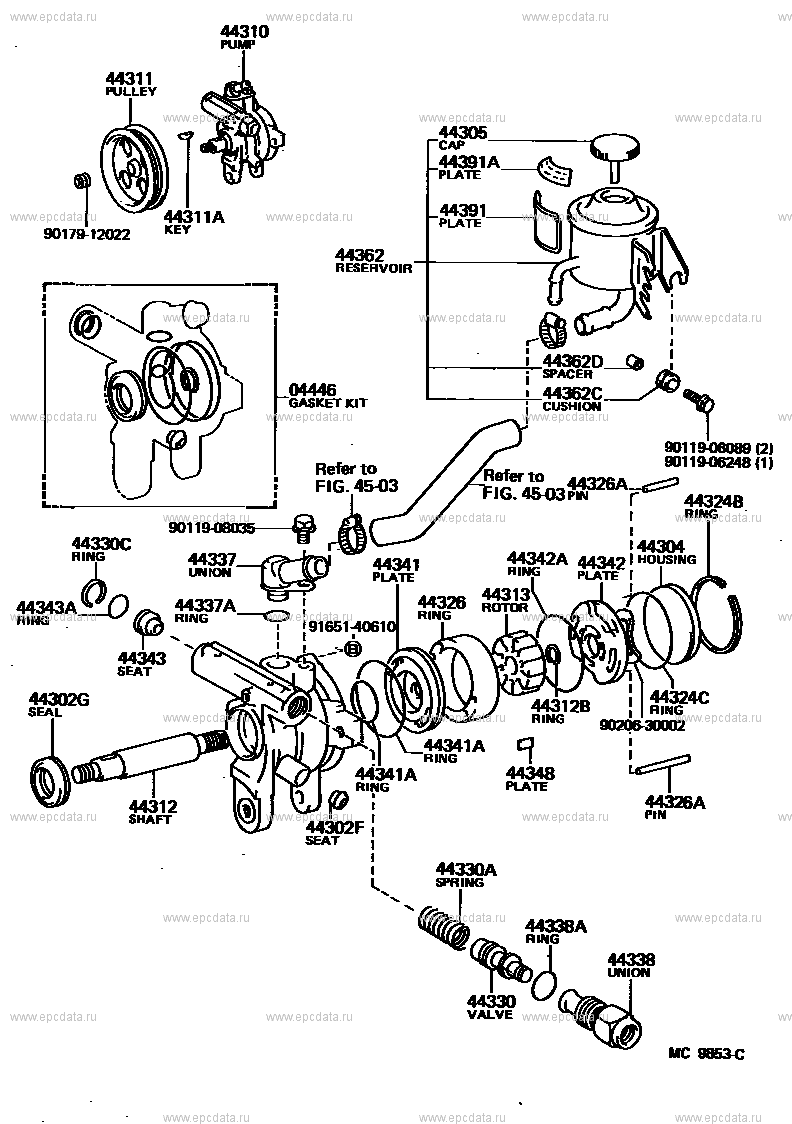

(8305-8507)AA63 Open full size scheme

Click part number in the scheme or in the list: 44310 PUMP ASSY, VANE 44311 PULLEY, VANE PUMP 44305 CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44391A PLATE, OIL RESERVOIR CAUTION 44391 PLATE, POWER STEERING OIL RESERVOIR CAUTION 44311A KEY, VANE PUMP PULLEY 9017912022 ** Std Part 44362 RESERVOIR, OIL(FOR VANE PUMP) 44362D SPACER(FOR VANE PUMP OIL RESERVOIR) 04446 GASKET KIT, POWER STEERING PUMP 44362C CUSHION(FOR VANE PUMP OIL RESERVOIR) 9011906089 ** Std Part 9011906248 ** Std Part 44326A PIN, STRAIGHT(FOR VANE PUMP CAM RING) ** 45-03 44324B RING, HOLE SNAP(FOR PUMP HOUSING REAR) 9011908035 ** Std Part 44330C RING, SNAP(FOR FLOW CONTROL VALVE) 44304 HOUSING SUB-ASSY, VANE PUMP, REAR 44342A RING, O(FOR VANE PUMP SIDE PLATE REAR) 44337 UNION, POWER STEERING SUCTION PORT 44342 PLATE, VANE PUMP SIDE, REAR 44341 PLATE, VANE PUMP SIDE, FRONT 44313 ROTOR, VANE PUMP 44326 RING, CAM(FOR VANE PUMP) 44337A RING, O(FOR POWER STEERING SUCTION PORT) 44343A RING, O(FOR FLOW CONTROL SPRING SEAT) 9165140610 ** Std Part 44343 SEAT, FLOW CONTROL SPRING 44324C RING, O(FOR PUMP HOUSING REAR) 44302G SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44312B RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 9020630002 ** Std Part 44341A RING, O(FOR VANE PUMP FRONT SIDE PLATE) 44348 PLATE, VANE PUMP 44312 SHAFT, VANE PUMP 44302F SEAT, UNION(FOR VANE PUMP HOUSING) 44330A SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44338A RING, O(FOR PRESSURE PORT UNION) 44338 UNION, PRESSURE PORT 44330 VALVE ASSY, FLOW CONTROL

Carina AA63
