Wiring & clamp for bB QNC21
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.

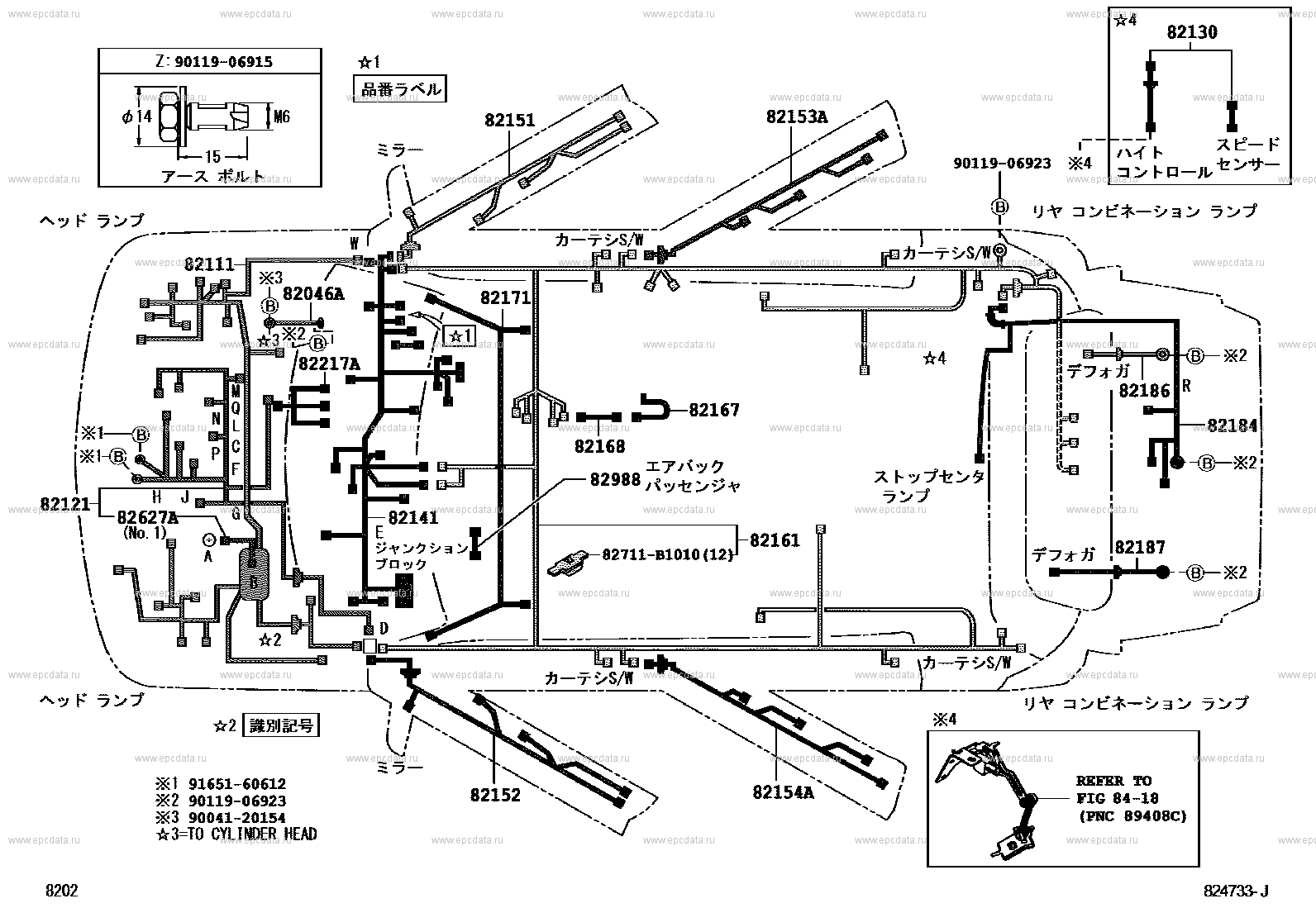

Scheme 1
| (0601- ) |
Click part number in the scheme or in the list: 82111 WIRE, ENGINE ROOM MAIN82046A WIRE SUB-ASSY, BODY GROUND, NO.1 82151 WIRE, FRONT DOOR, RH 82152 WIRE, FRONT DOOR, LH 82153A WIRE, REAR DOOR, RH 82154A WIRE, REAR DOOR, LH 82161 WIRE, FLOOR 82171 WIRE, ROOF, NO.1 82184 WIRE, BACK DOOR, NO.1 82186 WIRE, REAR WINDOW, NO.1 82187 WIRE, REAR WINDOW, NO.2 82711B1010 ** Std Part 9011906923 ** Std Part 9165160612 ** Std Part 82141 WIRE, INSTRUMENT PANEL 82121 WIRE, ENGINE 82627A WIRE, FUSIBLE LINK 9004120154 ** Std Part 82130 HARNESS ASSY, CHASSIS WIRE 82167 WIRE, SEAT, NO.1 82168 WIRE, SEAT, NO.2 82217A WIRE, FRONT WINDOW DEFOGGER 9011906915 ** Std Part 82988 WIRE, AIR BAG REPAIR ** 84-18 |
Scheme 2
| (0601- ) |
Click part number in the scheme or in the list: 82111 WIRE, ENGINE ROOM MAIN82121 WIRE, ENGINE 82627A WIRE, FUSIBLE LINK ** 82-01 ** 84-01 82683B LABEL, FUSE BLOCK NOTICE 82666A HOLDER, CONNECTOR NO.2 82823 CAP, TERMINAL, NO.1 9004975015 ** Std Part 9004120197 ** Std Part |
Scheme 3
Scheme 4
