ToyotaAvensisZRT272WZRT272W-AWXGPTransmission and chassisParking brake & cable

Parking brake & cable for Avensis ZRT272W




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 46300 46300-05030 01 02.2012 - 06.2012 ACTUATOR ASSY, PARKING BRAKE W/BRACKET ZRT272 0.00 USD
  (SUBS) 46300-05031 01    655.20
to 1,497.72 USD
02 46300 46300-05031 01 07.2012 - 10.2012 ACTUATOR ASSY, PARKING BRAKE W/BRACKET ZRT272  655.20
to 1,497.72 USD
03 46300 46300-05032 01 10.2012 - 02.2014 ACTUATOR ASSY, PARKING BRAKE W/BRACKET ZRT272 655.20 USD
04 46300 46300-05034 01 02.2014 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET ZRT272 0.00 USD

More than 1 spare part found. Please define it more accurately before ordering.






Click on the part subgroup below to get genuine part numbers.

(1107- )

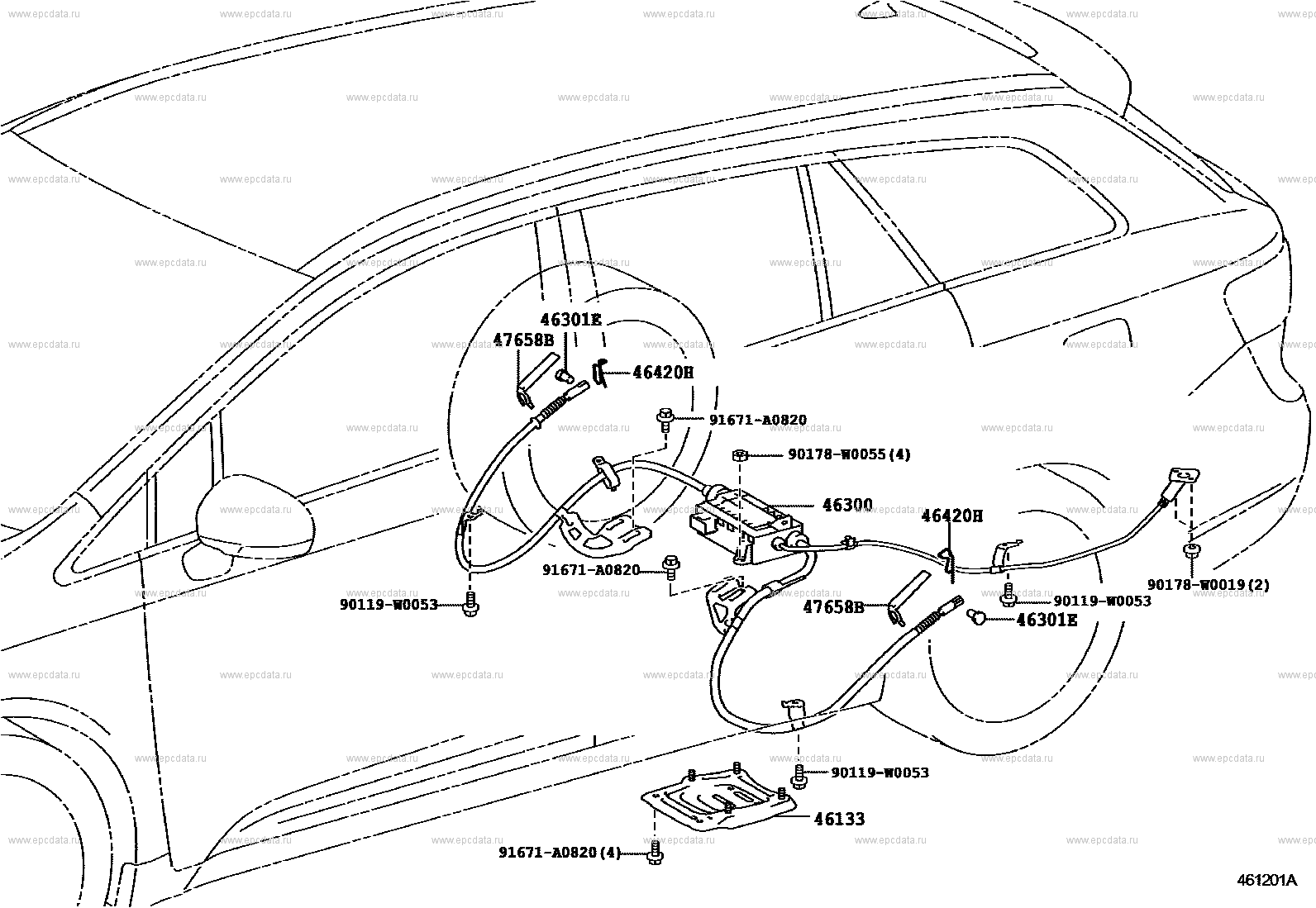

Click part number in the scheme or in the list:

46133 BRACKET, PARKING BRAKE ACTUATOR SUPPORT
90119W0053 ** Std Part
46300 ACTUATOR ASSY, PARKING BRAKE W/BRACKET
91671A0820 ** Std Part
46301E PIN, W/HOLE(FOR INTERMEDIATE LEVER)
47658B PROTECTOR, PARKING BRAKE LEVER
90178W0019 ** Std Part
90178W0055 ** Std Part
46420H CLIP, NO.2(FOR PARKING BRAKE)
