Valve body & oil strainer (atm) for Avensis AZT251W

	Here are parts you've selected: No PNC# (SUB) OEM part number Required per car Production period Name Applicability Please order in advance In stock 01 35251 35251-30020 01 07.2003 - 06.2006 BODY, CHECK BALL AZT25#  11.31 to 11.61 USD 02 35251 35251-30020 01 06.2006 - BODY, CHECK BALL AZT25#  11.31 to 11.61 USD More than 1 spare part found. Please define it more accurately before ordering.

Click on the part subgroup below to get genuine part numbers.

Scheme 1

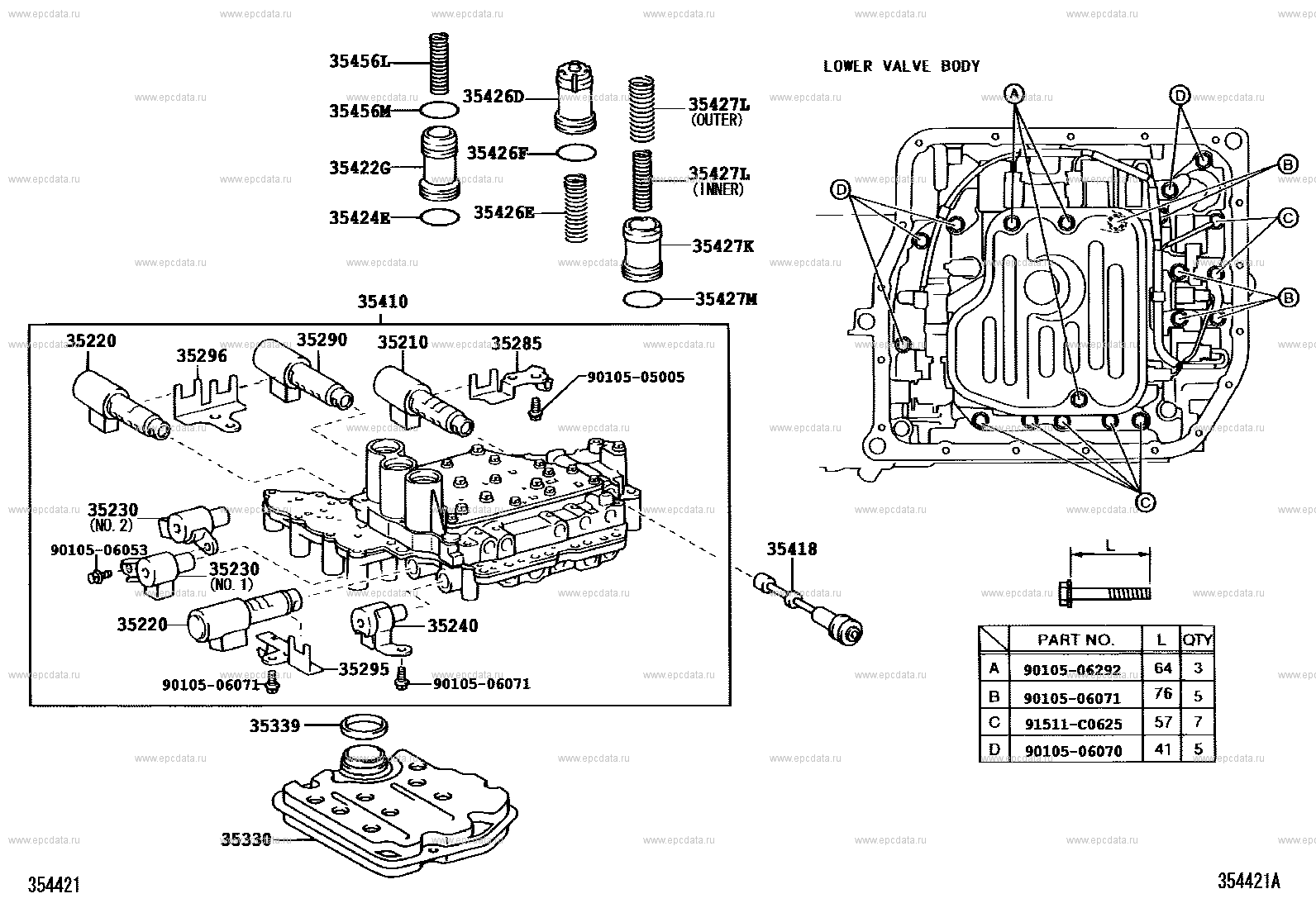

(0506- )AZT251 U151E ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 35295 PLATE, SOLENOID LOCK, NO.2 35296 PLATE, SOLENOID LOCK, NO.3 35285 PLATE, SOLENOID LOCK 35456L SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) 35456M RING, O (FOR C-2 CONTROL) 9010506071 ** Std Part 35424E RING, O (FOR C-1 ACCUMULATOR PISTON) 35410 BODY ASSY, TRANSMISSION VALVE 35426D PISTON, C-3 ACCUMULATOR 35426F RING, O (FOR C-3 ACCUMULATOR PISTON) 35426E SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) 35427L SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) 35427K PISTON, B-3 ACCUMULATOR 35427M RING, O (FOR B-3 ACCUMULATOR PISTON) 35418 VALVE, MANUAL 9010505005 ** Std Part 35220 SOLENOID ASSY, CLUTCH CONTROL, NO.2 35210 SOLENOID ASSY, CLUTCH CONTROL, NO.1 35290 SOLENOID ASSY, LINE PRESSURE CONTROL 35422G PISTON, REVERSE CLUTCH ACCUMULATOR 9010506070 ** Std Part 35230 SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 9010506053 ** Std Part 35339 GASKET, OIL STRAINER 9010506292 ** Std Part 91511C0625 ** Std Part 35330 STRAINER ASSY, VALVE BODY OIL 35240 SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

Scheme 2

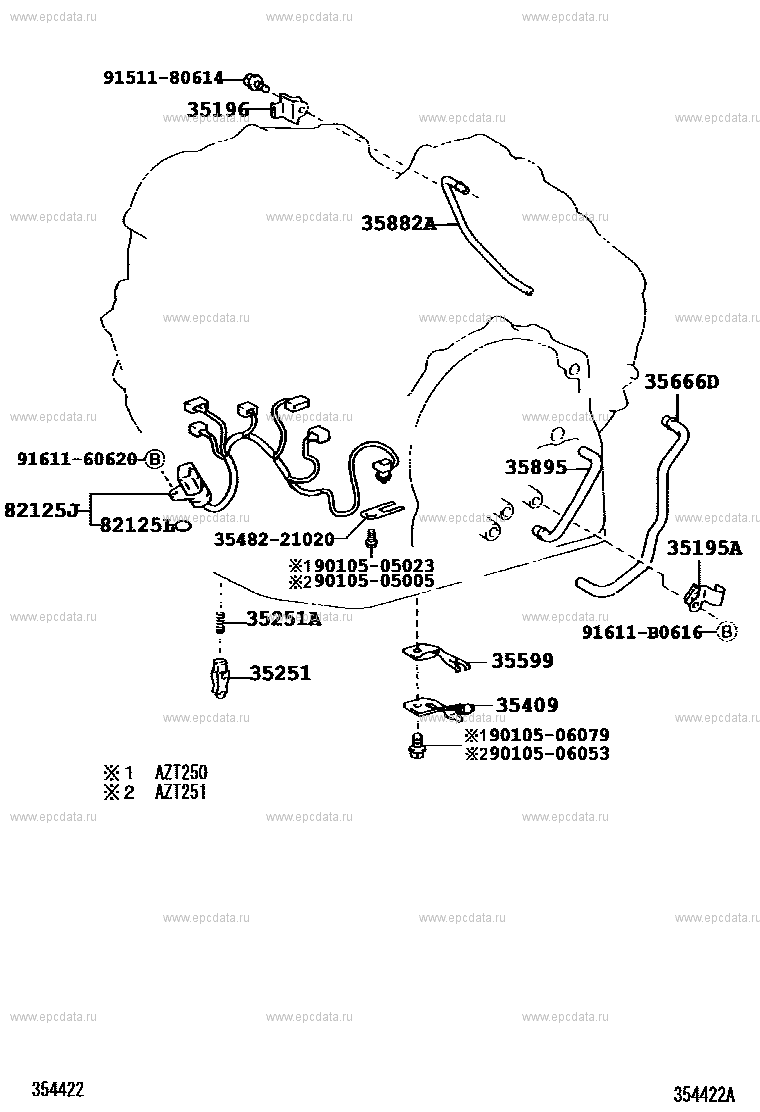

(0307- )AZT250 ; (0506- )AZT251 U151E,U241E ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9151180614 ** Std Part 35196 CLAMP, TRANSAXLE APPLY TUBE, NO.2 35882A TUBE, DIFFERENTIAL GEAR LUBE APPLY 35895 TUBE, FRONT CLUTCH APPLY 35666D TUBE, BRAKE APPLY 35195A CLAMP, TRANSAXLE APPLY TUBE, NO.1 91611B0616 ** Std Part 35599 COVER, MANUAL DETENT SPRING 35409 SPRING SUB-ASSY, MANUAL DETENT 9010506079 ** Std Part 35251A SPRING, COMPRESSION (FOR CHECK BALL BODY) 35251 BODY, CHECK BALL 3548221020 ** Std Part 9161160620 ** Std Part 82125L RING, O(FOR TRANSMISSION WIRE) 82125J WIRE, TRANSMISSION 9010505023 ** Std Part 9010505005 ** Std Part 9010506053 ** Std Part

Avensis AZT251W
