Wiring & clamp for Aristo JZS160
|
Here are parts you've selected:
More than 1 spare part found. Please define it more accurately before ordering.
| |||||||||||||||||||||||||||||
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
(9708- ) ｴﾝｼﾞﾝﾙｰﾑ ﾜｲﾔ ILLUST NO. 1 OF 8 |
Click part number in the scheme or in the list: 82122 WIRE, ENGINE, NO.282823 CAP, TERMINAL, NO.1 82123 WIRE, ENGINE, NO.3 82210C FUSIBLE LINK 82124 WIRE, ENGINE, NO.4 9011906390 ** Std Part 9017906128 ** Std Part 82111 WIRE, ENGINE ROOM MAIN 82823B CAP, TERMINAL, NO.3 ** 84-01 9011906393 ** Std Part 8271130070 ** Std Part 9011908981 ** Std Part 82131 WIRE, COWL 9011906375 ** Std Part 827153A060 ** Std Part 827153A130 ** Std Part |

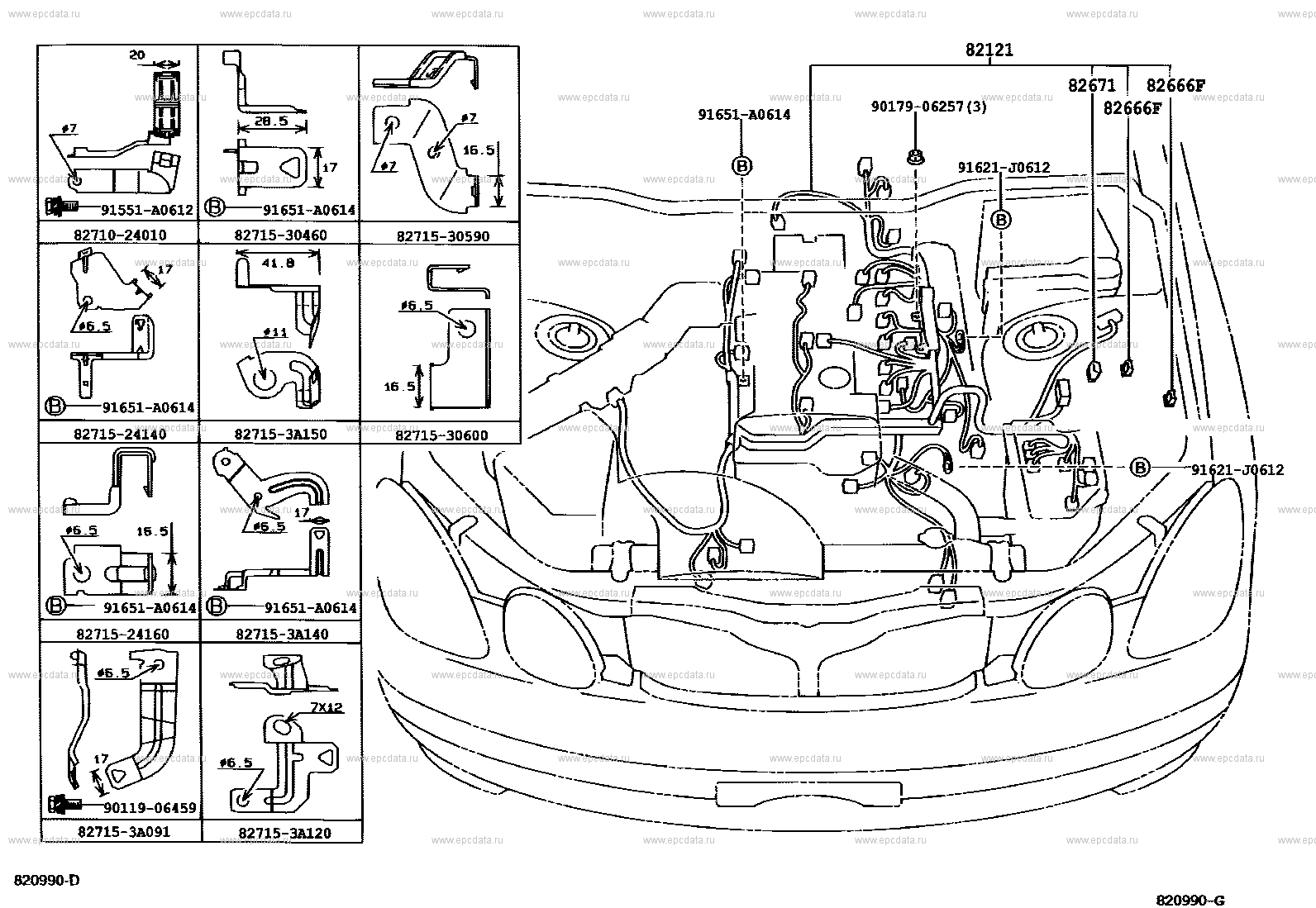

Scheme 2
|
(9708- )JZS160 ｴﾝｼﾞﾝ ﾜｲﾔ ILLUST NO. 2 OF 8 |
Click part number in the scheme or in the list: 82121 WIRE, ENGINE8271024010 ** Std Part 8271524140 ** Std Part 8271524160 ** Std Part 827153A091 ** Std Part 8271530460 ** Std Part 8271530590 ** Std Part 8271530600 ** Std Part 827153A150 ** Std Part 827153A140 ** Std Part 827153A120 ** Std Part 9011906459 ** Std Part 91551A0612 ** Std Part 9017906257 ** Std Part 91621J0612 ** Std Part 91651A0614 ** Std Part 82671 BLOCK, JUNCTION 82666F HOLDER, CONNECTOR NO.7 |
Scheme 3
|
(9708- ) ｶｳﾙ ﾜｲﾔ ILLUST NO. 3 OF 8 |
Click part number in the scheme or in the list: 82131 WIRE, COWL82210C FUSIBLE LINK 82666G HOLDER, CONNECTOR NO.8 9011906390 ** Std Part 9017906314 ** Std Part 82817 PROTECTOR, WIRING HARNESS, NO.1 9095001784 ** Std Part 82666E HOLDER, CONNECTOR NO.6 82671J BLOCK, JUNCTION, NO.2 82666C HOLDER, CONNECTOR NO.4 82666A HOLDER, CONNECTOR NO.2 82671K BLOCK, JUNCTION, NO.3 82666D HOLDER, CONNECTOR NO.5 82666B HOLDER, CONNECTOR NO.3 8282120330 ** Std Part |
Scheme 4
|
(9708- ) ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ ILLUST NO. 4 OF 8 |
Click part number in the scheme or in the list: 82141 WIRE, INSTRUMENT PANEL827153A190 ** Std Part 9015950327 ** Std Part 91631J0612 ** Std Part |
Scheme 5
|
(9708- ) ﾄﾞｱ ﾜｲﾔ ILLUST NO. 5 OF 8 |
Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH** 81-21 82152 WIRE, FRONT DOOR, LH 9015960303 ** Std Part 82153 WIRE, REAR DOOR, NO.1 9018906227 ** Std Part 82154 WIRE, REAR DOOR, NO.2 |

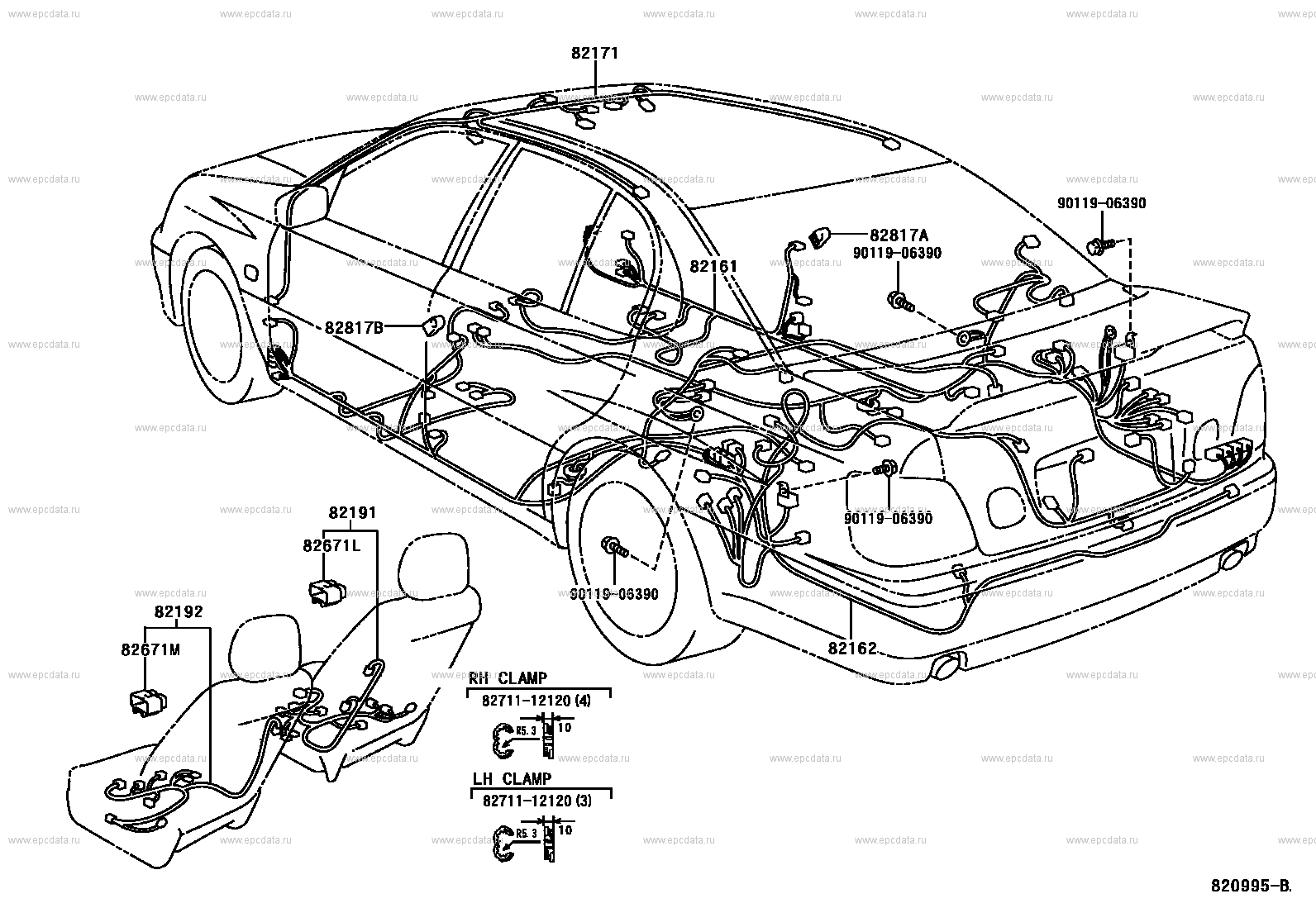

Scheme 6
|
(9708- ) ﾌﾛｱ,ﾙｰﾌ & ｼｰﾄ ﾜｲﾔ ILLUST NO. 6 OF 8 |
Click part number in the scheme or in the list: 82171 WIRE, ROOF, NO.19011906390 ** Std Part 82817A PROTECTOR, WIRING HARNESS, NO.2 82161 WIRE, FLOOR 82817B PROTECTOR, WIRING HARNESS, NO.3 82191 WIRE, FRONT SEAT, RH 82671L BLOCK, JUNCTION, NO.4 82192 WIRE, FRONT SEAT, LH 82162 WIRE, FLOOR, NO.2 82671M BLOCK, JUNCTION, NO.5 8271112120 ** Std Part |
Scheme 7
|
(9708- ) ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ ILLUST NO. 7 OF 8 |
Click part number in the scheme or in the list: 82001C CABLE, BOND, NO.29011906067 ** Std Part 82001 CABLE, BOND, NO.1 9017906161 ** Std Part |

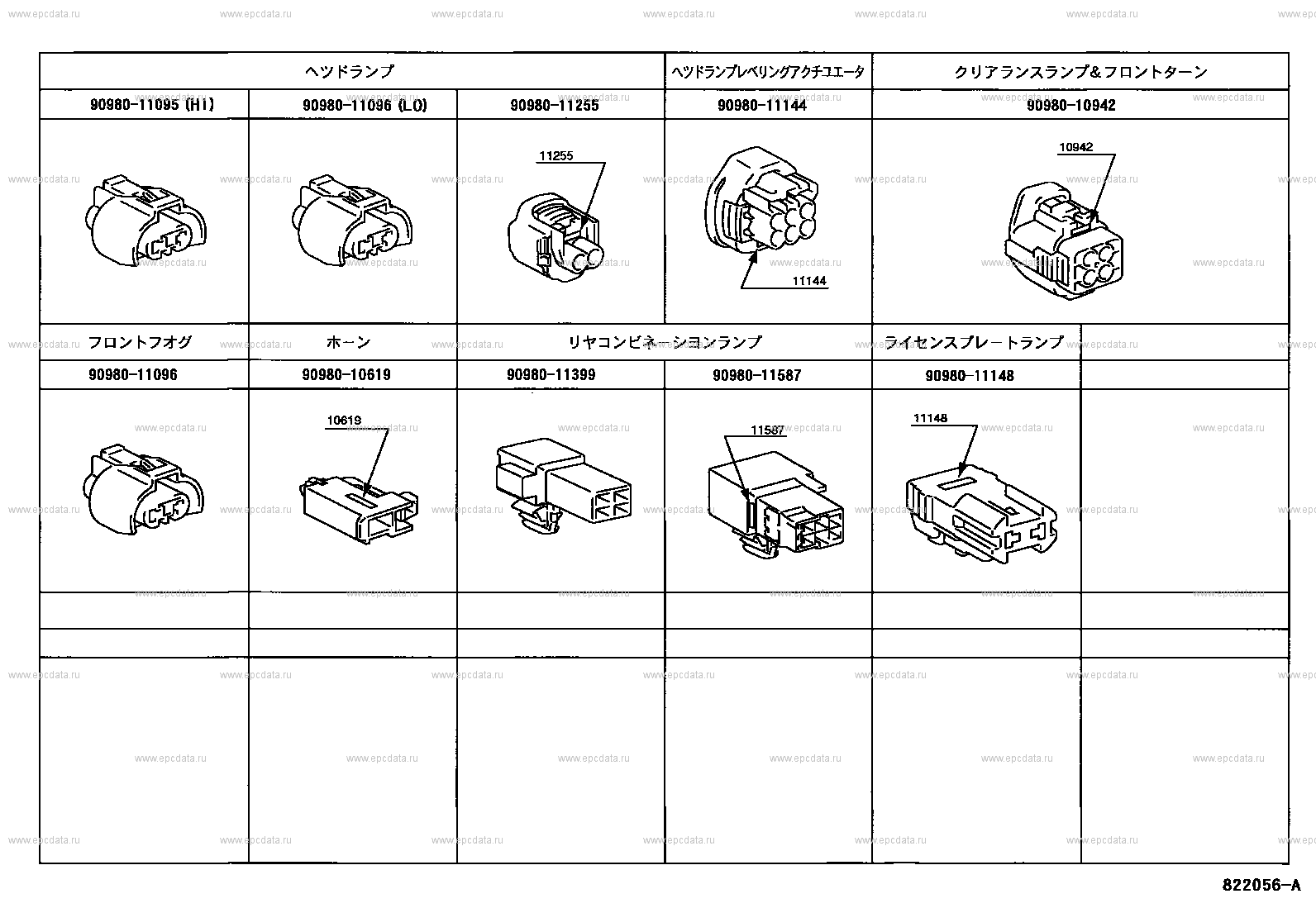

Scheme 8
|
(9708- ) ｺﾈｸﾀ ILLUST NO. 8 OF 8 |
Click part number in the scheme or in the list: 9098011095 ** Std Part9098011096 ** Std Part 9098011255 ** Std Part 9098011144 ** Std Part 9098010942 ** Std Part 9098010619 ** Std Part 9098011399 ** Std Part 9098011587 ** Std Part 9098011148 ** Std Part |
