Manifold for Aristo JZS147

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(9110-9708)2JZGTE Open full size scheme Go to top

Click part number in the scheme or in the list: 9010508294 ** Std Part 9011608348 ** Std Part 9017908203 ** Std Part 9011908891 ** Std Part 9011908A59 ** Std Part 9017910167 ** Std Part 17271 INSULATOR, TURBO, NO.1 17104 MANIFOLD SUB-ASSY, EXHAUST, RH 9011908870 ** Std Part 17278 GASKET, TURBO TO EXHAUST MANIFOLD 9034112023 ** Std Part 9043012005 ** Std Part 9010508250 ** Std Part 9017908153 ** Std Part 17125 STAY, SURGE TANK, NO.1 17198 GASKET, EXHAUST MANIFOLD, NO.2 9017910165 ** Std Part 9012608008 ** Std Part 17173 GASKET, EXHAUST MANIFOLD TO HEAD 15471 GASKET, TURBO OIL INLET 17159 BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) 15482A BOLT, UNION, NO.2 17129J PLUG, TIGHT(FOR INTAKE AIR SURGE TANK) 15482B GASKET(FOR UNION BOLT NO.2) 15481A BOLT, UNION, NO.1 17129 TANK, INTAKE AIR SURGE 15481B GASKET(FOR UNION BOLT NO.1) 17177 GASKET, INTAKE MANIFOLD TO HEAD, NO.1 15481 PIPE, TURBO OIL, NO.1 15482 PIPE, TURBO OIL, NO.2 9165161020 ** Std Part 15474B CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) 15492A CLIP(FOR TURBO OIL OUTLET HOSE NO.2) 15474A HOSE, TURBO OIL OUTLET 15492 HOSE, TURBO OIL OUTLET, NO.2 17118 STAY, MANIFOLD 9212260814 ** Std Part 17176 GASKET, AIR SURGE TANK TO INTAKE MANIFOLD 15474 PIPE, TURBO OIL OUTLET 17111 MANIFOLD, INTAKE 9010510151 ** Std Part 15472 GASKET, TURBO OIL OUTLET, NO.1

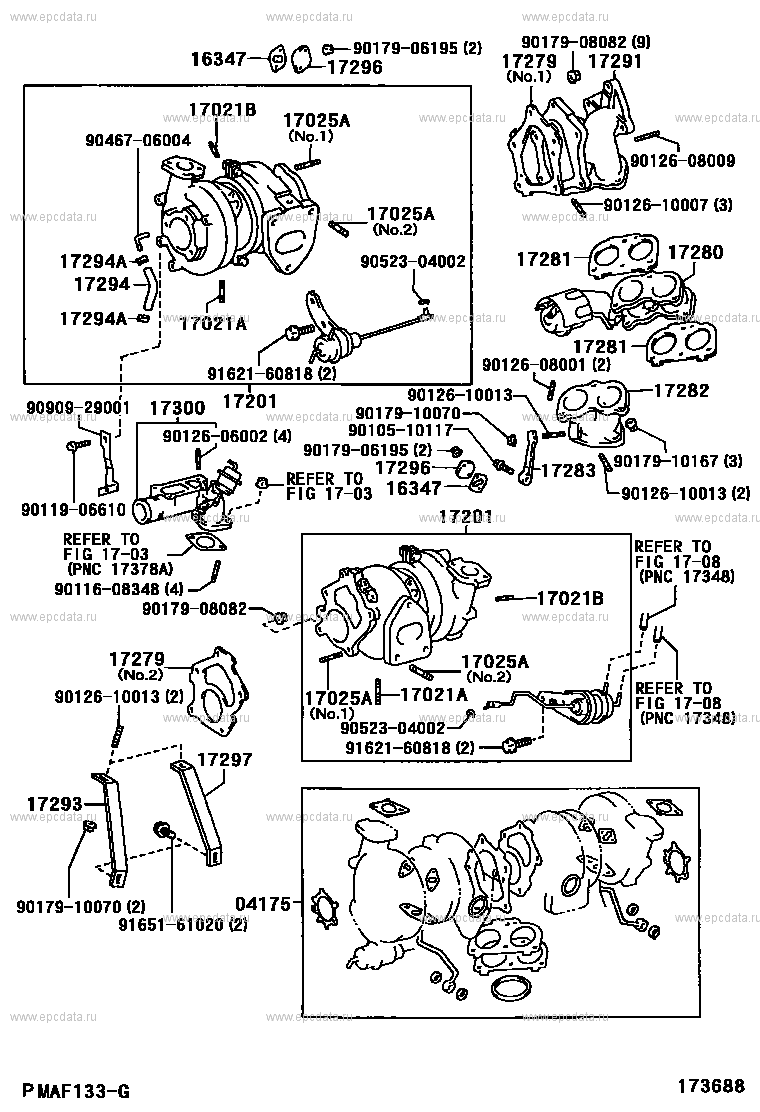

Scheme 2

(9110-9708)2JZGTE Open full size scheme Go to top

Click part number in the scheme or in the list: 9017908082 ** Std Part 9017906195 ** Std Part 16347 GASKET, WATER BY-PASS 17279 GASKET, TURBINE OUTLET ELBOW 17291 ELBOW, TURBINE OUTLET 17296 PLATE, BEARING HOUSING, SIDE 17021B BOLT, STUD 17025A BOLT, STUD(FOR TURBINE HOUSING) 9046706004 ** Std Part 9012608009 ** Std Part 9012610007 ** Std Part 17280 VALVE ASSY, EXHAUST GAS CONTROL 17281 GASKET, EXHAUST GAS CONTROL VALVE 17294A CLIP(FOR ACTUATOR HOSE) 9052304002 ** Std Part 17294 HOSE, ACTUATOR 17021A BOLT, STUD(FOR BEARING HOUSING) 9012608001 ** Std Part 9162160818 ** Std Part 17282 OUTLET, EXHAUST GAS CONTROL VALVE 9012610013 ** Std Part 17201 TURBOCHARGER SUB-ASSY 9090929001 ** Std Part 17300 VALVE ASSY, INTAKE AIR CONTROL 9017910070 ** Std Part 9010510117 ** Std Part 9012606002 ** Std Part 9017910167 ** Std Part 17283 STAY, EXHAUST GAS CONTROL VALVE OUTLET ** 17-03 9011906610 ** Std Part ** 17-08 9011608348 ** Std Part 17297 STAY, TURBOCHARGER, NO.2 17293 STAY, TURBOCHARGER 04175 GASKET KIT, TURBOCHARGER 9165161020 ** Std Part
