Engine oil pump for Aristo JZS147
Click on the part subgroup below to get genuine part numbers.
| (9110-9708)2JZGTE |

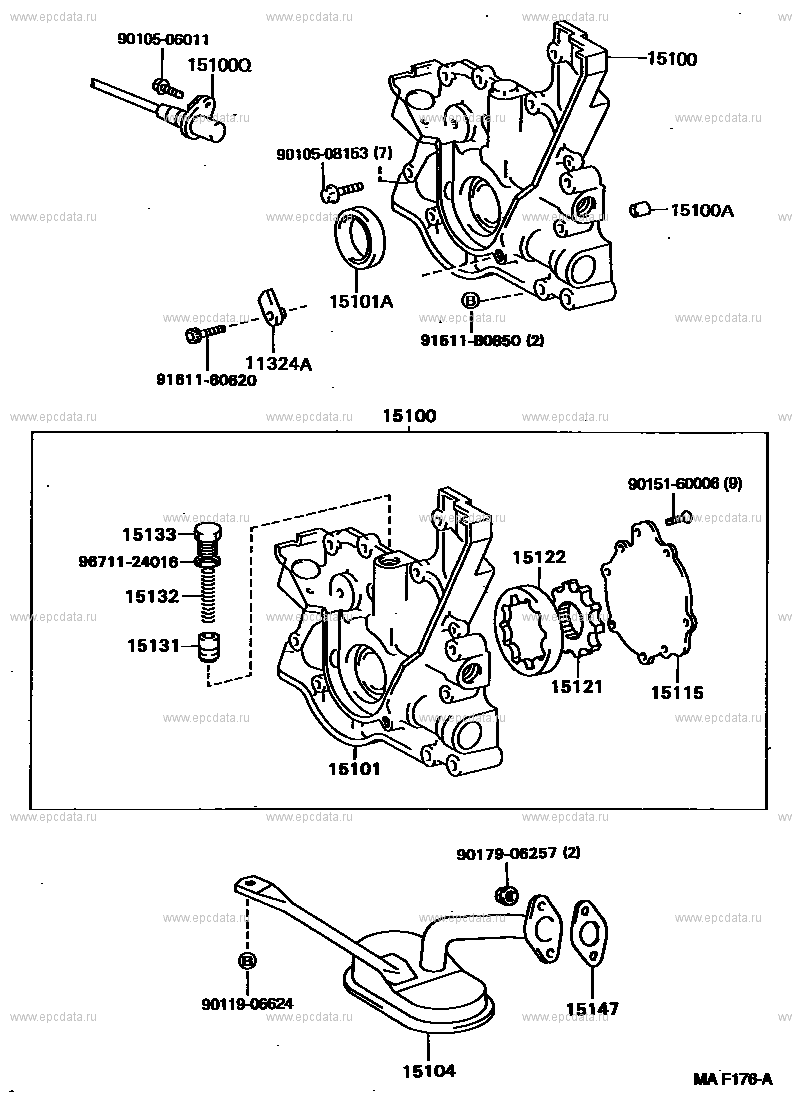

Click part number in the scheme or in the list: 9010506011 ** Std Part15100 PUMP ASSY, OIL 15100Q SENSOR, CRANK POSITION 9010508153 ** Std Part 15100A PIN, RING(FOR OIL PUMP SET) 15101A SEAL(FOR CRANKSHAFT) 91511B0850 ** Std Part 11324A PLATE, TIMING BELT 9161160620 ** Std Part 9015160006 ** Std Part 15133 PLUG, OIL PUMP RELIEF VALVE 15122 GEAR, OIL PUMP DRIVEN 9671124016 ** Std Part 15132 SPRING, OIL PUMP RELIEF VALVE 15131 VALVE, OIL PUMP RELIEF 15121 GEAR, OIL PUMP DRIVE 15115 COVER, OIL PUMP 15101 BODY SUB-ASSY, OIL PUMP 9017906257 ** Std Part 9011906624 ** Std Part 15147 GASKET, OIL STRAINER 15104 STRAINER SUB-ASSY, OIL |
