Heating & air conditioning - cooler unit for Aqua NHP10

Click on the part subgroup below to get genuine part numbers.

Scheme 1

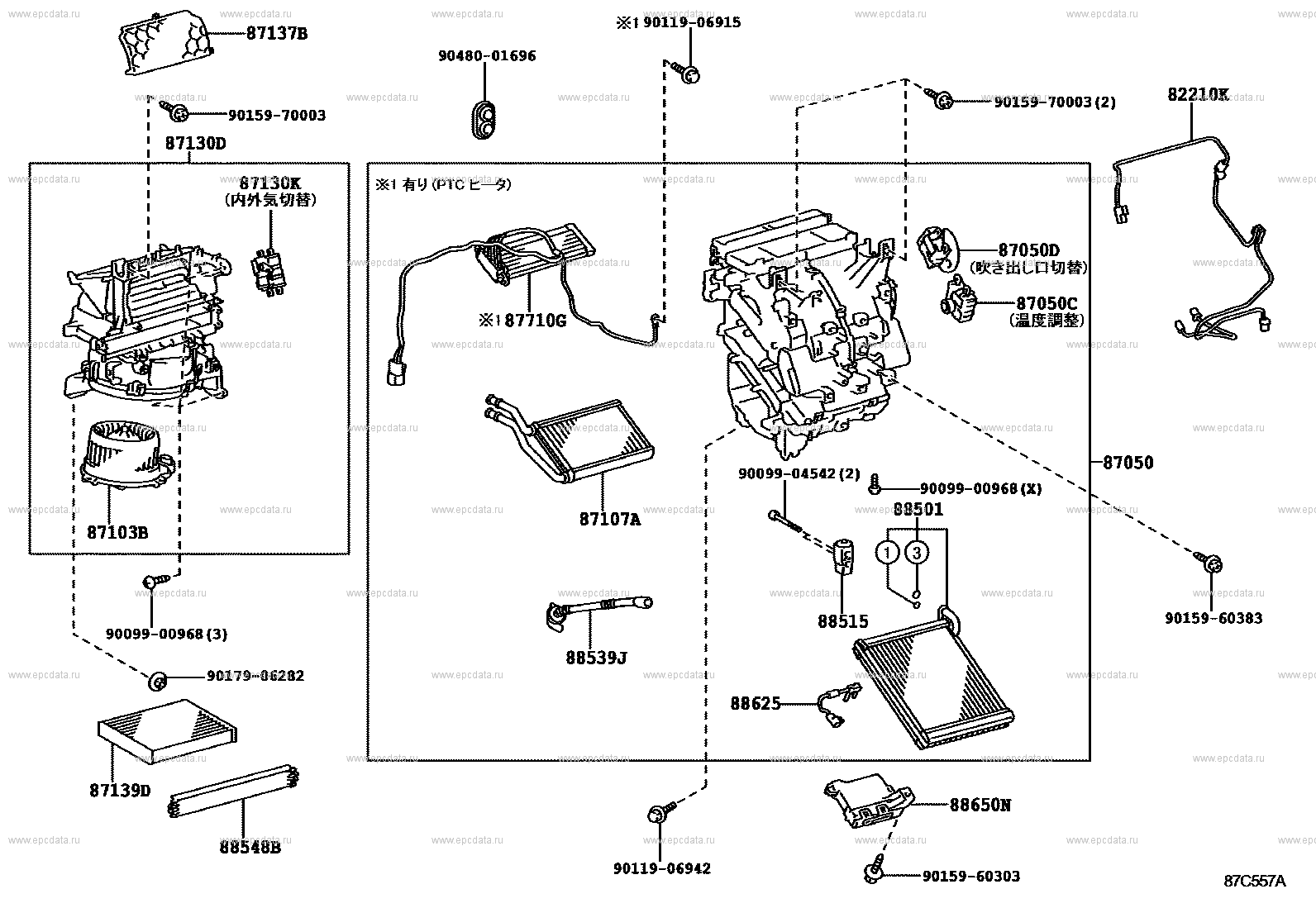

(1112- ) ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9015960383 ** Std Part 9015970003 ** Std Part 9009900968 ** Std Part 9009904542 ** Std Part 9011906915 ** Std Part 9015960303 ** Std Part 9017906282 ** Std Part 9048001696 ** Std Part 87710G QUICK HEATER ASSY 88539J HOSE, DRAIN COOLER 87107A UNIT SUB-ASSY, HEATER RADIATOR 87050D DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 87050C DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 88548B CASE, AIR FILTER 87139D ELEMENT, AIR REFINER 9011906942 ** Std Part 88650N AMPLIFIER ASSY, AIR CONDITIONER 88625 THERMISTOR, COOLER, NO.1 88501 EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 VALVE, COOLER EXPANSION 87050 RADIATOR ASSY, AIR CONDITIONER 87103B MOTOR SUB-ASSY, BLOWER W/FAN 87130K DAMPER SERVO SUB-ASSY, BLOWER, NO.1 87130D BLOWER ASSY 87137B COVER, HEATER BLOWER 82210K HARNESS ASSY, AIR CONDITIONER

Scheme 2

(1112- ) O-ﾘﾝｸﾞ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9009914120 ** Std Part 9009914119 ** Std Part 9009914121 ** Std Part

Aqua NHP10
