Fuel tank & tube for Alphard MNH15W

Click on the part subgroup below to get genuine part numbers.

Scheme 1

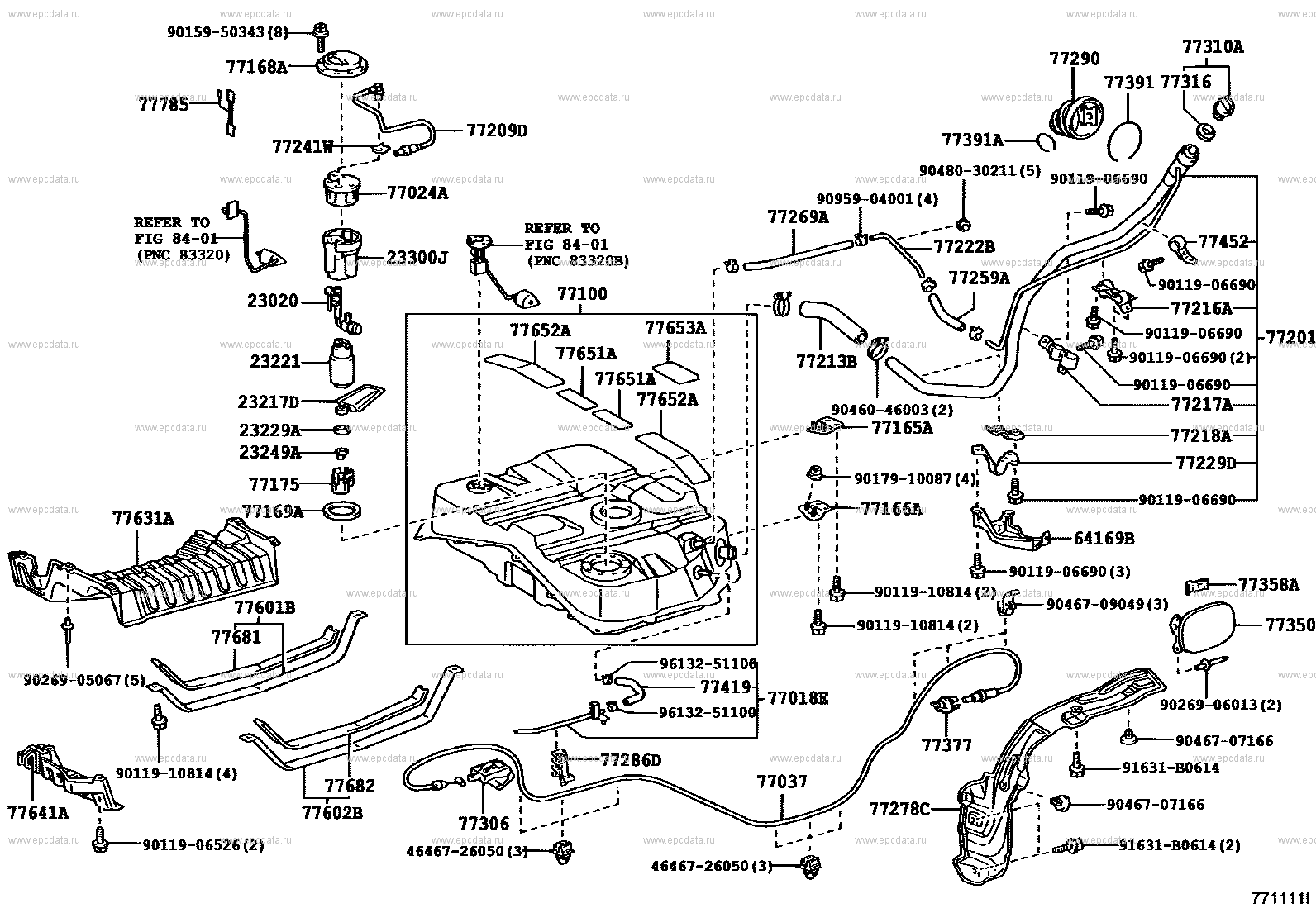

(0205- )ANH15,MNH15 ﾌﾕ-ｴﾙ ﾀﾝｸ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 77024A PLATE SUB-ASSY, FUEL SUCTION 23229A CLIP(FOR FUEL PUMP FILTER) 23249A RUBBER, CUSHION(FOR FUEL PUMP) 77175 SUPPORT, FUEL SUCTION, NO.2 77169A GASKET, FUEL SUCTION TUBE SET 77209D TUBE SUB-ASSY, FUEL TANK MAIN 77168A PLATE, FUEL TANK VENT TUBE SET 77241W CLIP, TUBE JOINT 23221 PUMP, FUEL 23020 REGULATOR ASSY, FUEL PRESSURE W/JET PUMP 23217D FILTER, FUEL PUMP 23300J FILTER ASSY, FUEL 77785 HARNESS, FUEL PUMP 77631A PROTECTOR, FUEL TANK, LOWER CENTER 9015950343 ** Std Part 77652A CUSHION, FUEL TANK, NO.2 77653A CUSHION, FUEL TANK, NO.3 77651A CUSHION, FUEL TANK, NO.1 77269A HOSE, FUEL TANK BREATHER 77100 TANK ASSY, FUEL 77166A BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH 77165A BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH 9017910087 ** Std Part 77213B HOSE, FUEL TANK TO FILLER PIPE 77259A HOSE, FUEL(FOR BREATHER TUBE) 77222B TUBE, FUEL TANK BREATHER, NO.2 77290 SHIELD ASSY, FUEL TANK FILLER PIPE 77391 RING, FUEL INLET BOX 77391A RING, FUEL INLET BOX 9011906690 ** Std Part 77310A CAP ASSY, FUEL TANK 77316 GASKET, FUEL TANK CAP 9011910814 ** Std Part 9046046003 ** Std Part 64169B PROTECTOR, FUEL INLET 77350 LID ASSY, FUEL FILLER OPENING 77358A STOPPER, FUEL FILLER OPENING LID 9048030211 ** Std Part 9095904001 ** Std Part 77037 LOCK SUB-ASSY, FUEL FILLER OPENING LID 77018E TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT 77286D CLAMP, FUEL TUBE, NO.2 77278C PROTECTOR, FUEL TANK FILLER PIPE, NO.2 77377 RETAINER, FUEL FILLER OPENING LID LOCK 77419 HOSE, FUEL, NO.3 9613251100 ** Std Part 4646726050 ** Std Part 9046707166 ** Std Part 9026906013 ** Std Part 91631B0614 ** Std Part 9046709049 ** Std Part 9026905067 ** Std Part 77601B BAND SUB-ASSY, FUEL TANK, NO.1 RH 77681 SEAT, FUEL TANK BAND, RH 77682 SEAT, FUEL TANK BAND, LH 77602B BAND SUB-ASSY, FUEL TANK, NO.1 LH 9011906526 ** Std Part 77641A PROTECTOR, FUEL TANK, NO.1 77306 LEVER SUB-ASSY, FUEL LID LOCK OPEN 77217A SUPPORT, FUEL TANK FILLER PIPE, NO.2 77229D SUPPORT, FUEL TANK FILLER PIPE, NO.4 77218A SUPPORT, FUEL TANK FILLER PIPE, NO.3 77216A SUPPORT, FUEL TANK FILLER PIPE, NO.1 77201 PIPE SUB-ASSY, FUEL TANK INLET 77452 SUPPORT, FUEL INLET HOSE PROTECTOR, NO.1 ** 84-01

Scheme 2

(0205- ) ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ ILLUST NO. 2 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 77254A HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) ** 22-11 ** 17-08 77740 CANISTER ASSY, CHARCOAL 77751 BRACKET, CHARCOAL CANISTER BASE 9046912010 ** Std Part 77416 SUPPORT, FUEL TUBE GROMMET, NO.6 77251B TUBE, FUEL MAIN 91635B0835 ** Std Part 9613251100 ** Std Part 77261 TUBE SUB-ASSY, FUEL EMISSION 91621B0816 ** Std Part 77241A HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77299A CLAMP, FUEL TUBE, NO.5 77298A CLAMP, FUEL TUBE, NO.4 77286F CLAMP, FUEL TUBE, NO.2

Alphard MNH15W
