Heating & air conditioning - water piping for Alphard ATH20W

Click on the part subgroup below to get genuine part numbers.

Scheme 1

(1111- )ATH20 ﾌﾛﾝﾄ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: 9613642501 ** Std Part 9048001696 ** Std Part 9155380612 ** Std Part 8871858110 ** Std Part 8745228180 ** Std Part 8745228190 ** Std Part 87209B HOSE SUB-ASSY, WATER, B 87209 HOSE SUB-ASSY, WATER 87245X HOSE, HEATER WATER ** 11-04 ** 87-14 ** 16-03 87200A PUMP ASSY, WATER(FOR HEATER)

Scheme 2

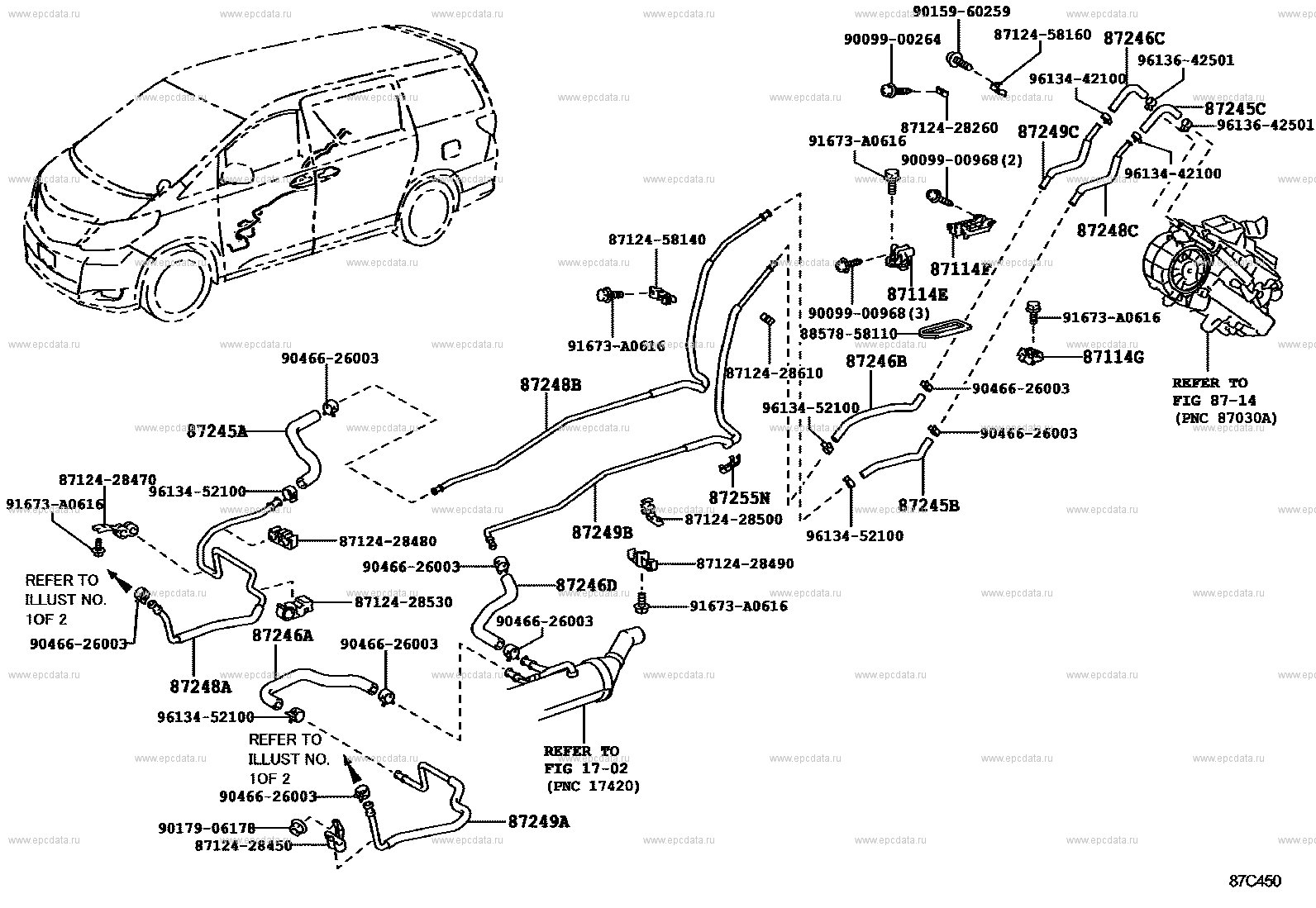

(1111- )ATH20 ﾘﾔ ILLUST NO. 1 OF 2 Open full size scheme Go to top

Click part number in the scheme or in the list: ** 17-02 87114E COVER, HEATER, NO.1 87114F COVER, HEATER, NO.2 87114G COVER, HEATER, NO.3 87246B HOSE, HEATER WATER, OUTLET B 87245C HOSE, HEATER WATER ,INLET C 87245B HOSE, HEATER WATER, INLET B 87246C HOSE, HEATER WATER, OUTLET C 87248B PIPE, HEATER WATER INLET, B 87248C PIPE, HEATER WATER INLET, C 87249B PIPE, HEATER WATER OUTLET, B 87245A HOSE, HEATER WATER, INLET A 87246D HOSE, HEATER WATER, OUTLET D 87246A HOSE, HEATER WATER, OUTLET A 87249A PIPE, HEATER WATER OUTLET, A 87248A PIPE, HEATER WATER INLET, A 87249C PIPE, HEATER WATER OUTLET, C 87255N PIPE, HEATER PROTECTOR, NO.1 8712428260 ** Std Part 8712428490 ** Std Part 8712428500 ** Std Part 9613452100 ** Std Part 8712428480 ** Std Part 8712428530 ** Std Part 8712428470 ** Std Part 8712428450 ** Std Part 9046626003 ** Std Part 91673A0616 ** Std Part 9017906178 ** Std Part 8712428610 ** Std Part 8712458140 ** Std Part 8712458160 ** Std Part 8857858110 ** Std Part 9009900264 ** Std Part 9009900968 ** Std Part 9015960259 ** Std Part 9613642501 ** Std Part 9613442100 ** Std Part ** 87-14

Alphard ATH20W
